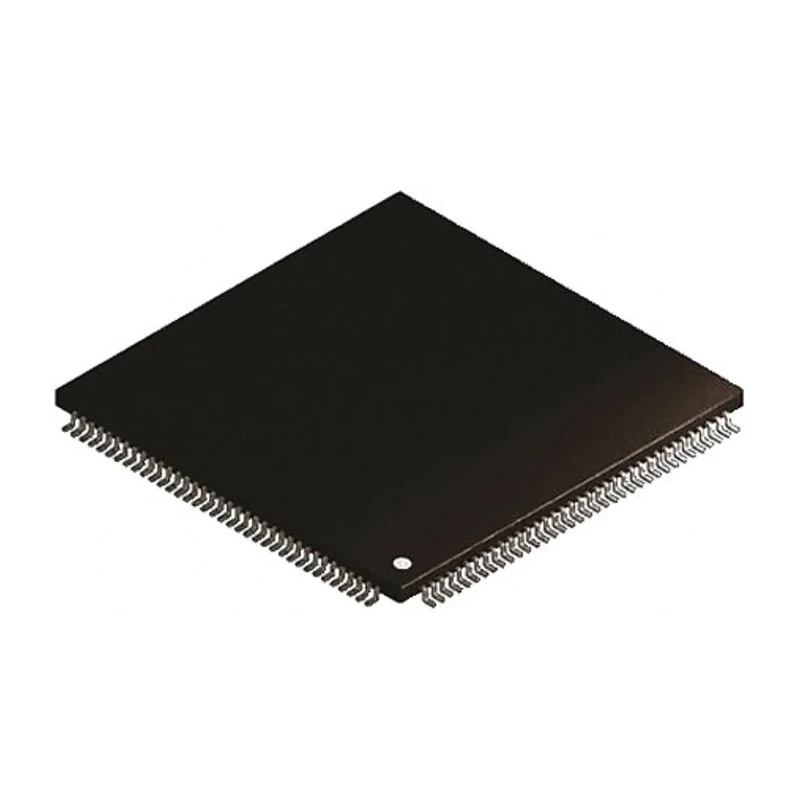

NXP 16-bit HSC12X HCS12 Microcontroller, 50 MHz, 1MB FLASH, 144-Pin LQFP MC9S12XEP100CAG
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.45mm |
| Length | 20mm |
| Model | MC9S12XEP100CAG |
| Width | 20mm |
| Mount Type | Surface |
| Series | HCS12 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 64kB |
| Interface Type | SPI, MEBI, SCI |
| Standards/Approvals | RoHS |
| Pin Count | 144 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | -0.3V |
| Device Core | HSC12X |
| Program Memory Size | 1MB |
| Maximum Clock Frequency | 50MHz |
| Analogue Comparators | 4 |
| Number of Timers | 1 |
| Instruction Set Architecture | MCU |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features a 16-bit data bus width and operates with a maximum clock frequency of 50 MHz.
- It provides 1 MB of FLASH program memory and 64 kB of RAM for robust application support.
- Equipped with 24 12-bit ADC channels and 4 analogue comparators for precise analog processing.
- Package is 144-pin LQFP with surface mount type, suitable for compact embedded systems.
- Supports multiple interfaces including SPI, MEBI, and SCI for versatile communication.
- Designed with automotive standard AEC-Q100 compliance ensuring reliability.
- Operating temperature range from -40°C to 85°C, suitable for harsh environments.
- Includes advanced peripherals like multiple 16-bit timers and CAN 2.0 modules for real-time control.
Product Description
The NXP MC9S12XEP100CAG is a high-performance 16-bit HSC12X series microcontroller designed to meet the demanding requirements of automotive and industrial control applications. Featuring a robust 50 MHz maximum clock frequency and 1 MB of FLASH program memory, it offers ample storage for complex firmware and facilitates rapid processing speeds for time-critical tasks.
This microcontroller is built with 64 kB RAM and utilizes a 16-bit data bus width that enables efficient data handling. It includes a variety of on-chip peripherals, such as 24 channels of 12-bit ADCs and 4 analogue comparators, which enhance its analog signal processing capabilities. Communication interfaces include SPI, MEBI, and SCI, allowing flexible device integration within embedded systems.
The unit is presented in a 144-pin LQFP package with surface mounting, making it suitable for compact board designs. Designed according to automotive standard AEC-Q100 specifications, it ensures reliability in adverse operating temperatures ranging from -40°C up to 85°C.
This microcontroller features advanced functional elements such as 8 asynchronous serial communication interfaces, multiple 16-bit timers, CAN 2.0 A and B software compatible modules, and an internally filtered frequency modulated Phase Locked Loop (IPLL). Memory protection is enhanced by a Memory Protection Unit (MPU) coupled with Error Correction Code (ECC) on flash memory, increasing system safety and stability.
The 1 MB FLASH memory is complemented by enhanced EEPROM functionality (EEE) and an XGATE co-processor that offloads processing for high-speed operations. The MC9S12XEP100CAG supports complex control systems and automotive embedded applications requiring dependable data handling, precision timing, and extensive connectivity options.
This microcontroller's architecture supports MCU instruction set architecture optimized for embedded use. Its compact package, combined with sophisticated peripheral support, supports a wide range of real-time automotive and industrial system requirements.
Explore EnvMart’s extensive microcontroller category for more advanced embedded solutions from NXP and other top manufacturers to enhance your next electronics project or production line automation.
Explore more products in our Microcontrollers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the NXP MC9S12XEP100CAG microcontroller is 50 MHz.
It features 1 MB of FLASH program memory, providing ample storage for complex firmware.
This model includes 24 channels of 12-bit ADCs, enhancing its analog processing capabilities.
The operating temperature range for this microcontroller is from -40°C to 85°C, making it suitable for harsh environments.
It comes in a 144-pin LQFP package, which is a surface mount type suitable for compact designs.
The microcontroller supports multiple interfaces including SPI, MEBI, and SCI, allowing for versatile communication.
The RAM size of the MC9S12XEP100CAG is 64 kB, which aids in robust application support.
This microcontroller is designed with AEC-Q100 compliance, ensuring reliability in automotive applications.
It includes 4 analogue comparators for precise analog signal processing.
The dimensions of this microcontroller are 20 mm in length and width, and it has a height of 1.45 mm.
This unit features multiple 16-bit timers for real-time control applications.
The minimum supply voltage is -0.3V and the maximum supply voltage is 6.5V.
