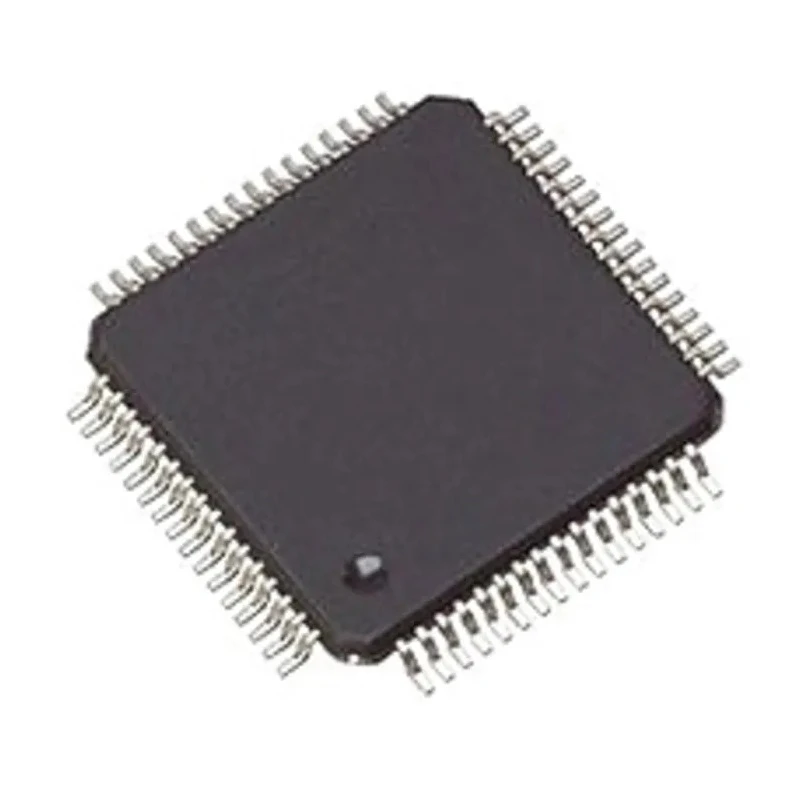

NXP 16 bit HSC12 HCS12 Microcontroller, 50 MHz, 128kB FLASH, 112-Pin LQFP MC9S12E128CPVE
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.45mm |
| Length | 20mm |
| Model | MC9S12E128CPVE |
| Width | 20mm |
| Mount Type | Surface |
| Series | HCS12 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 112 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | -0.3V |
| Device Core | HSC12 |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 50MHz |
| Analogue Comparators | 3 |
| Number of Timers | 3 |
| Instruction Set Architecture | MCU |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 8 Bit |
Key Features
- Features a HSC12 CPU core with 16-bit data bus width.
- Includes 1 x 8-bit DAC and a 16-channel 10-bit ADC for analog signal processing.
- Equipped with 3 asynchronous Serial Communications Interfaces and 1 SPI interface.
- Designed with 3 timers and multiple PWM channels for versatile control applications.
- Supports automotive standard AEC-Q100 for reliability in automotive environments.
- Operates reliably between -40°C to 85°C, suitable for industrial and automotive use.
- Low power consumption with flexible PLL circuit for performance adjustment.
Product Description
NXP MC9S12E128CPVE is a 16-bit HSC12 series microcontroller designed to deliver reliable performance for automotive, industrial, and embedded systems. Operating at a maximum clock frequency of 50 MHz, it features 128 kB of FLASH memory and 8kB of RAM, making it suitable for complex applications requiring ample memory and fast processing.
This microcontroller integrates a rich set of peripherals including 1 x 8-bit DAC, 16 x 10-bit ADC channels, 3 analogue comparators, and multiple serial communication interfaces such as 3 asynchronous SCI ports and 1 SPI port. The device also includes 3 4-channel 16-bit timers and 6-channel 8-bit PWMs with fault protection modules to support sophisticated control schemes.
Designed for automotive applications, it meets the AEC-Q100 automotive standard and can withstand temperatures ranging from -40°C to 85°C. Its compact 112-pin LQFP package with dimensions 20mm x 20mm x 1.45mm supports surface mounting, optimized for modern PCB designs.
The integrated PLL circuit allows for flexible adjustments on power consumption versus performance to match operational requirements. This makes it ideal for use in automotive engine control units, industrial automation, consumer electronics, and other embedded systems.
16-bit HSC12 CPU core with efficient 16-bit data bus. 128 kB FLASH memory and 8kB RAM for program and data storage. Rich analog and digital peripheral set including DAC, ADC, and comparators. Multiple serial communication interfaces for connectivity flexibility.
Timers and PWM channels supporting complex timing and control. Meets automotive AEC-Q100 standard ensuring high reliability. Operating temperature range from -40°C to 85°C suitable for harsh environments. Compact 112-pin LQFP surface mount package with low profile.
This microcontroller series represents an excellent choice for automotive and industrial control applications where reliability and performance are critical. For further device options and detailed technical documents, refer to NXP's official resources. Browse EnvMart's electronics section for more advanced Microcontrollers from leading brands like NXP.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the MC9S12E128CPVE microcontroller is 50 MHz.
It features a program memory size of 128 kB FLASH.
This model includes 16 channels of 10-bit ADC for analog signal processing.
It operates reliably within a temperature range of -40°C to 85°C.
This microcontroller is packaged in a 112-pin LQFP (Low-Profile Quad Flat Package).
Yes, it meets the AEC-Q100 automotive standard, ensuring reliability in automotive environments.
It is equipped with 3 asynchronous Serial Communications Interfaces and 1 SPI interface for connectivity.
This model has 8 kB of RAM for data storage.
The height of the MC9S12E128CPVE is 1.45 mm.
It includes 3 timers for various control applications.
The minimum supply voltage is -0.3V.
The package dimensions are 20 mm in length and 20 mm in width.
