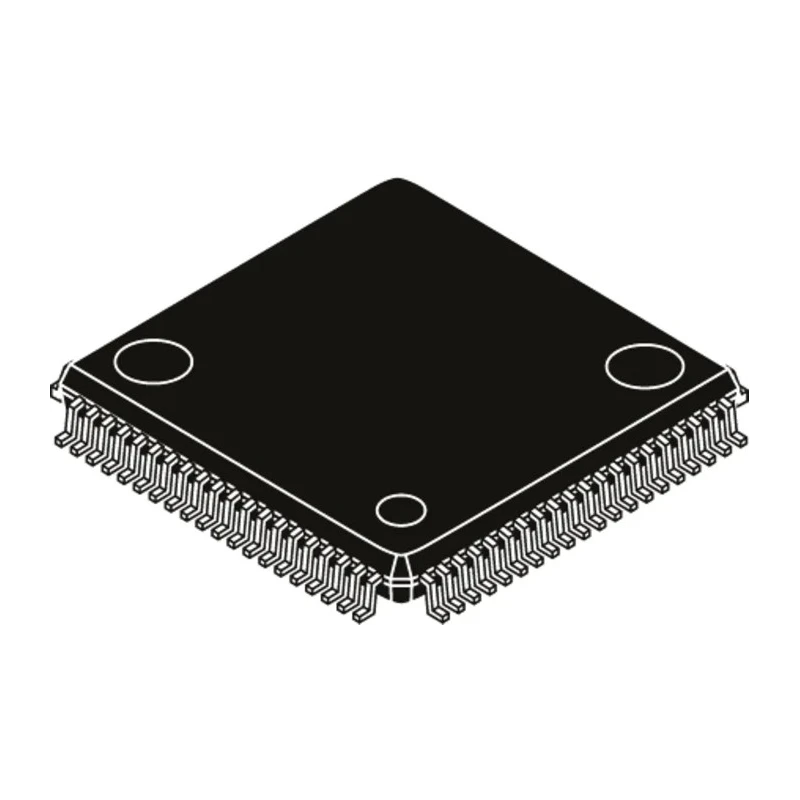

NXP 16 bit HSC12 HCS12 Microcontroller 25 MHz 64kB FLASH 80-Pin QFP MC9S12D64CFUE

The NXP MC9S12D64CFUE is a 16-bit HSC12 core microcontroller from the HCS12 series, operating at a maximum clock frequency of 25 MHz. It offers 64kB of FLASH program memory and 4kB of RAM, packaged in an 80-pin QFP surface mount for space-efficient integration.

This device integrates a host of peripherals suitable for automotive and industrial embedded applications, including two asynchronous Serial Communications Interfaces (SCI), a Serial Peripheral Interface (SPI), an 8-channel 10-bit Analog to Digital Converter (ADC), and an 8-channel Pulse-Width Modulator (PWM).

The microcontroller provides 29 discrete digital I/O channels and 20 digital I/O lines, enhancing connectivity options for various control systems. It operates over a wide temperature range from -40°C to 85°C and supports a maximum supply voltage of 6V, allowing it to function reliably under demanding environmental conditions.

Additional features include one timer module, a digital byte data link controller, and automotive-compatible software modules, making this microcontroller suitable for automotive networks and industrial automation.

The compact QFP package with dimensions approximately 14.1 mm in length and width, and 2.2 mm in height, supports surface mounting on PCB boards for advanced application designs.

This microcontroller series supports interfacing with single 8-bit wide memory to reduce cost in simpler systems while retaining performance. The integrated PLL circuit offers flexible power consumption management tailored to operational needs.

Applications include embedded automotive control systems, industrial automation, and other control-intensive embedded applications requiring a robust, high-performance microcontroller.

Features a 16-bit HSC12 core CPU optimized for efficient embedded control. Equipped with 64kB of FLASH program memory and 4kB of RAM for versatile application needs. Supports up to 80 pins in a QFP surface mount package for compact PCB design.

Includes 8-channel 10-bit ADCs and multiple serial communication interfaces including SCI and SPI. Operational temperature range from -40°C to 85°C ensures reliability in harsh environments. Maximum supply voltage is 6V with a minimum supply voltage of -0.3V for flexible power management.

Integrates multiple timers, PWM channels, and I/O lines for comprehensive peripheral control. Designed with automotive system compatibility but suited for industrial embedded systems as well. Explore a variety of Microcontrollers and embedded solutions in the Electronics & Electricals category at EnvMart for your industrial, automotive, or automation project needs.
