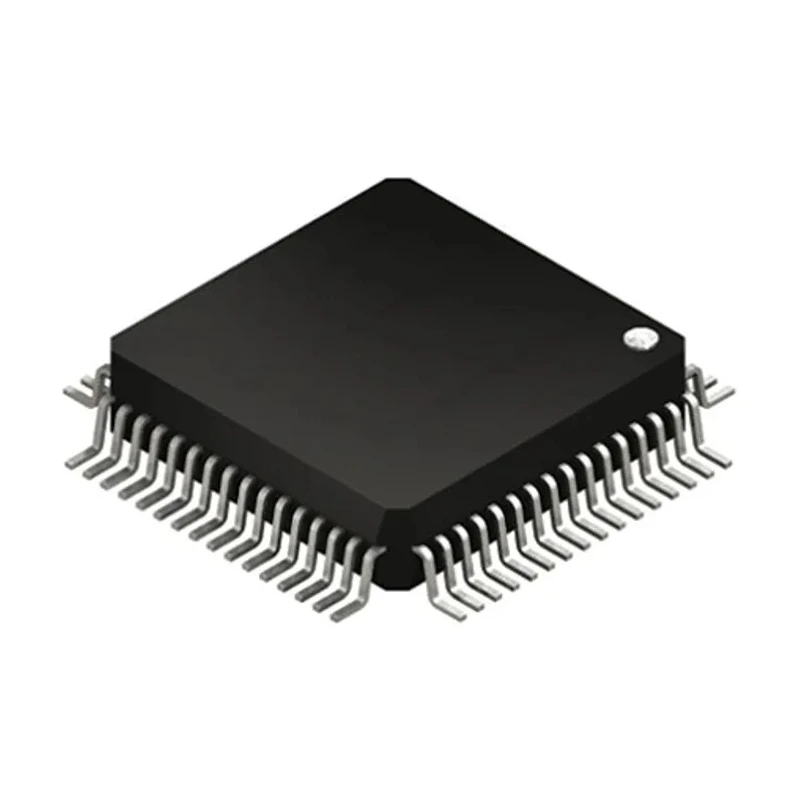

Texas Instruments 16 bit MSP430 Microcontroller, 16 MHz CPU, 116kB FLASH, 8kB RAM, 64-Pin LQFP MSP430F2618TPM

Texas Instruments MSP430F2618TPM is a 16-bit microcontroller designed for ultra-low power and industrial applications. Operating at a maximum clock frequency of 16 MHz, it incorporates 116kB of flash program memory and 8kB of RAM, housed in a 64-pin LQFP package suitable for surface mounting on PCBs.

This microcontroller features a 16-bit RISC architecture optimized for efficient performance and low power consumption, making it ideal for battery-powered, wireless, and portable industrial devices. The device supports a wide supply voltage range of 1.8V to 3.6V which enhances flexibility in various application environments.

Thermal performance is rated from -40°C to 105°C, ensuring reliable operation in harsh and extended temperature conditions typically encountered in industrial and automotive sectors. The integrated digital and analog peripherals include 48 programmable I/O pins, 10 timers, one analogue comparator, and 8 ADC channels of 12-bit resolution that provide comprehensive signal processing capabilities.

Low power consumption modes facilitate active power usage of only 200μA/MHz and extremely low current retention modes, supporting extended battery life. The device can wake from standby mode in under 6 microseconds, making it responsive for real-time industrial control and data acquisition tasks.

The flash memory supports in-system programming for ease of development and firmware updates. The MSP430 platform benefits from a robust ecosystem including extensive development tools and community support.

Features a 16-bit RISC CPU architecture optimized for low power consumption. Equipped with 64-pin LQFP package ensuring surface mount assembly compatibility. Supports operating voltage range from 1.8V to 3.6V for flexibility in power supply.

Includes 48 programmable I/O pins and 10 timers for diverse applications. Operates reliably in extended temperature range from -40°C up to 105°C. Incorporates 8 channels of 12-bit ADC and one analogue comparator for sensing applications.

Flash memory type supports efficient program storage and execution. Ultra-low power modes enable active current of 200μA/MHz and real-time clock mode of 0.7μA. Fast wake-up from standby in less than 6 microseconds suits industrial and portable devices.

This microcontroller suits industrial, embedded, wearable, and portable electronic applications requiring precise control, low power consumption, and reliable operation across a wide range of temperatures and voltages.
