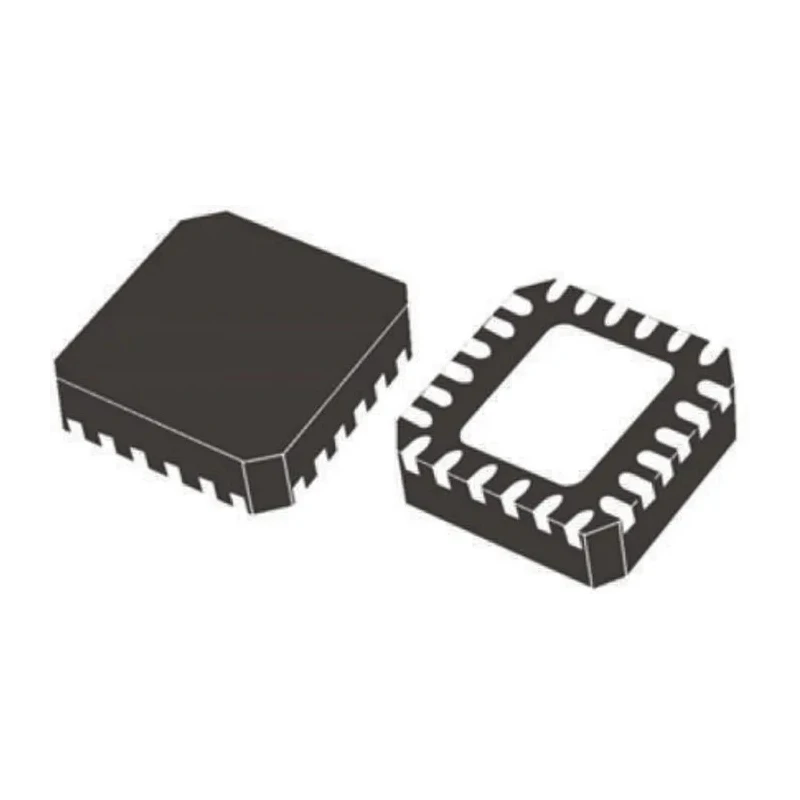

STMicroelectronics STM8L151G6U6 8-Bit STM8 Microcontroller 16 MHz 32kB FLASH 28-Pin UFQFPN

The STMicroelectronics STM8L151G6U6 is a high-performance, ultra-low power 8-bit microcontroller built on the STM8L series architecture with a 16 MHz maximum clock frequency and 32kB of FLASH memory. It provides robust operation for industrial, scientific, and embedded systems applications requiring efficient processing and low energy consumption.

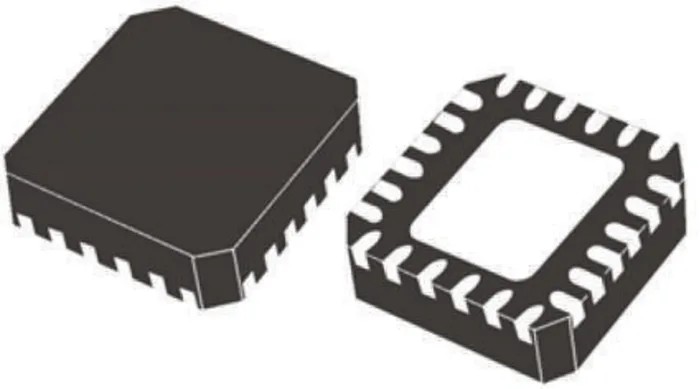

This microcontroller features 2kB RAM, 41 programmable input/output ports, and includes advanced peripherals such as 1 x 12-bit DAC and 18 x 12-bit ADCs, enabling high-resolution analogue signal processing. With a surface mount UFQFPN package type, measuring 4.1 mm by 4.1 mm with a height of 0.55 mm, it is well-suited for compact electronic designs.

Designed to operate across a wide voltage range of 1.8V to 3.6V, the device supports low power consumption modes, including a minimum power mode of 0.4 μA and a dynamic running current of 192 μA/MHz. It withstands operating temperatures from -40°C to 85°C, making it adaptable to harsh environments.

The STM8L151G6U6 microcontroller integrates three timers and two analogue comparators, providing precise timing and signal comparison capabilities necessary for control and automation systems. Its architecture implements a CISC instruction set and is compliant with RoHS environmental standards.

Built on the STM8L series ultra-low power 8-bit STM8 core. Operates at a maximum clock frequency of 16 MHz. 32kB FLASH memory and 2kB RAM for program and data storage. 41 programmable I/Os for extensive interfacing options.

Includes 1 x 12-bit DAC and 18 x 12-bit ADCs for analogue functions. Operates within 1.8V to 3.6V power supply range. Low power modes reduce consumption to 0.4 μA minimum. Surface mount UFQFPN 28-pin package, compact 4.1 mm × 4.1 mm × 0.55 mm.

Operating temperature range of -40°C to 85°C. Three timers and two analogue comparators integrated. Environmentally friendly RoHS certified.

This microcontroller is ideal for embedded applications in industrial control systems, instrumentation, consumer electronics, and automotive electronics where low power and compact size are critical. It supports development of versatile and efficient solutions requiring precise control and analogue interfacing.
