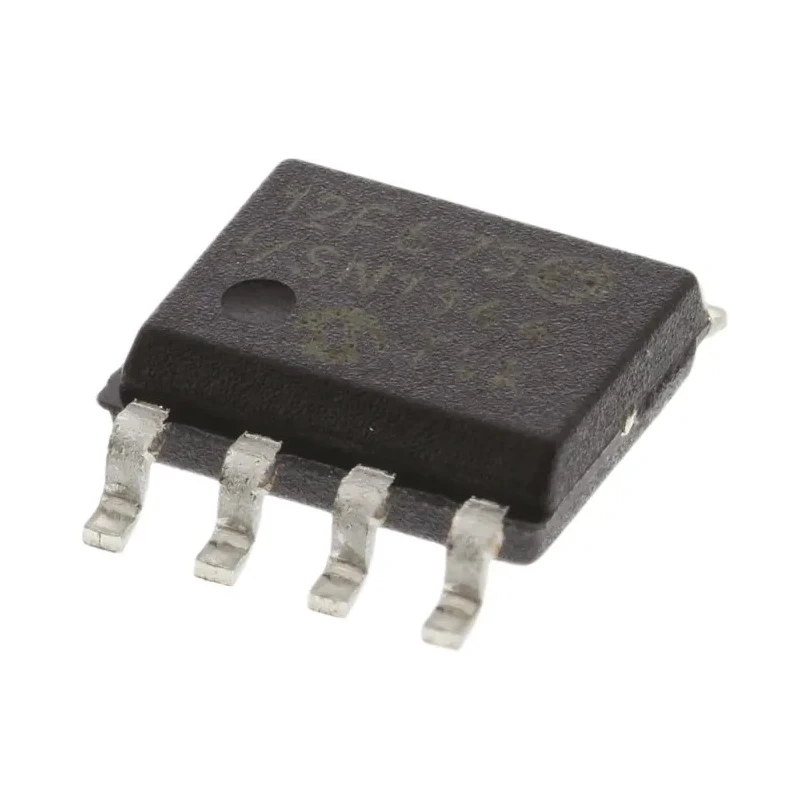

Microchip 8-bit PIC Microcontroller, 20 MHz, 1.75kB FLASH, 8-Pin SOIC PIC12F675-I/SN

Microchip PIC12F675-I/SN is a sophisticated 8-bit PIC microcontroller designed for compact and efficient embedded system applications. Featuring a 20 MHz maximum clock frequency, this microcontroller integrates a PIC mid-range core architecture with 35 instruction capabilities, facilitating up to 5 MIPS performance.

The device comes with 1.75 kB of FLASH program memory and 64 bytes of RAM, supporting robust program execution and data storage. It incorporates 6 programmable input/output (I/O) pins and an internal RC oscillator offering ±1% frequency accuracy, which eliminates the need for an external clock source in many designs.

Additional hardware features include one analogue comparator, four 10-bit analogue-to-digital converter (ADC) channels exclusive to the PIC12F675 variant, and two timers (8-bit and 16-bit), providing versatile timing and control options necessary for complex embedded systems.

Manufactured in a compact 8-pin SOIC surface-mount package, it measures 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height, making it ideal for applications requiring a minimal footprint. The device operates over a broad voltage range from 2V to 5.5V and supports a maximum power dissipation of 800 mW, ensuring reliable operation across varying electrical conditions.

Notably, the microcontroller adheres to automotive standard ISO/TS 16949, underlining its suitability for automotive and industrial control applications where quality and longevity are critical. Its RISC instruction set simplifies code development and execution speed.

Common industrial uses include automotive electronics, consumer appliances, communications equipment, and power management systems where space and power efficiency are paramount. The in-circuit serial programming (ICSP) feature simplifies firmware updates post-deployment without requiring chip removal.

The product gallery includes high-quality images illustrating the microcontroller package and supported design software tools such as DesignSpark for PCB and 3D mechanical designs, aiding engineers in rapid development and prototyping.

Set includes 1 Microchip PIC12F675-I/SN microcontroller in 8-pin SOIC package. Designed for industrial, automotive, laboratory, and consumer electronic applications requiring small form factor microcontrollers with reliable performance.

Browse Microchip Microcontrollers at EnvMart for comprehensive semiconductor solutions and related accessories. Equipped with 8-bit PIC core architecture delivering efficient processing. Operates within temperature range of -40°C to 85°C for industrial reliability.

Includes 6 programmable I/O pins and 4 channels of 10-bit ADC for versatile applications. Consists of dual timers: one 8-bit and one 16-bit for precise timing functions. Supports in-circuit serial programming (ICSP) for convenient device reprogramming.

Internal RC oscillator with ±1% accuracy minimizes external components. Compact dimensions of 4.9mm length, 3.9mm width, and 1.5mm height suit space-limited designs. Maximum operating voltage up to 5.5V and power dissipation capped at 800 mW ensure robust performance.

Complies with automotive ISO/TS 16949 standard reflecting quality manufacturing norms.
