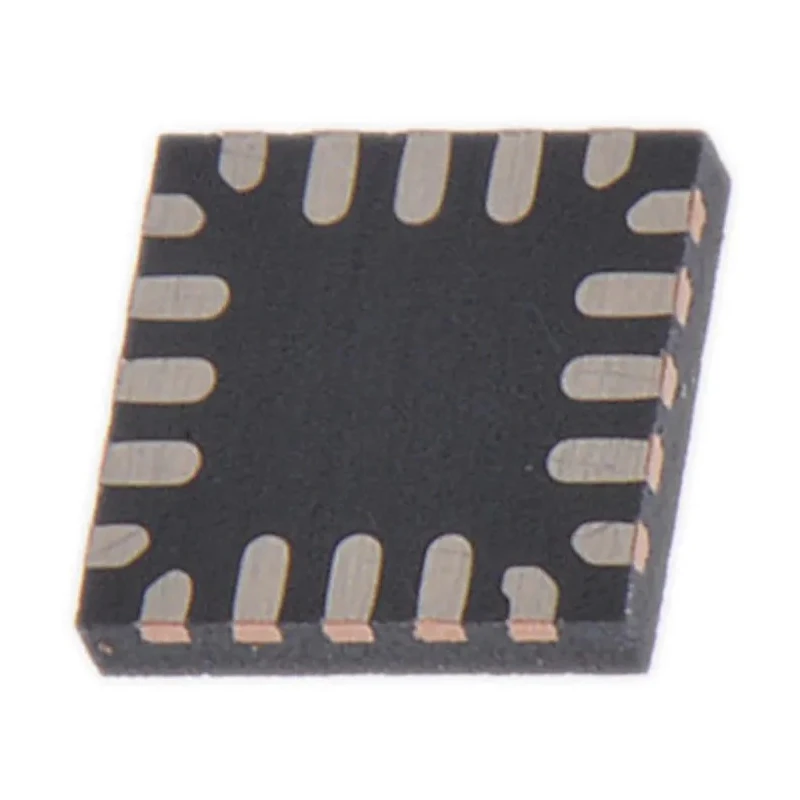

STMicroelectronics STM8L101F3U6TR 8-bit Microcontroller, 20 MHz, 8kB FLASH, 20-Pin UFQFPN STM8L101F3U6TR STM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.55mm |
| Length | 3mm |
| Model | STM8 |
| Width | 3mm |
| Mount Type | Surface |
| Series | STM8L101F3 |
| Maximum Operating Temperature | 85°C |
| Package Type | UFQFPN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.5kB |
| Interface Type | I2P, SPI, UART |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 288mW |
| Minimum Supply Voltage | 1.65V |
| Device Core | STM8 |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8kB |
| Number of Timers | 3 |
| Instruction Set Architecture | CISC |
| Program Memory Type | FLASH |
| STM8L101 | Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz |
| STM8L151/152 | Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz |
Key Features
- Ultra-low power STM8L microcontroller operating at up to 20 MHz.
- Provides 8kB of FLASH program memory for secure, reliable application storage.
- Surface-mount UFQFPN package with 20-pin configuration for compact integration.
- Features 1.5kB RAM and support for I2P, SPI, and UART interfaces.
- Wide operating voltage range from 1.65V to 5.5V for versatile industrial applications.
- Includes 33 programmable I/O ports, 3 timers, and 2 analog comparators.
- Suitable for embedded systems requiring ultra-low power consumption and high reliability.
- Maximum supply voltage of 5.5V and maximum power dissipation of 288mW.
Product Description
STMicroelectronics STM8L101F3U6TR is a high-performance ultra-low power 8-bit microcontroller designed with the STM8 core, offering robust functionality and efficiency for industrial electronics, embedded control, and automation systems. With a 20-pin UFQFPN package, it provides a compact form factor ideal for dense PCB layouts and integration into advanced electronic assemblies.
Ultra-low power STM8L microcontroller operating at up to 20 MHz. Provides 8kB of FLASH program memory for secure, reliable application storage. Surface-mount UFQFPN package with 20-pin configuration for compact integration.
Features 1.5kB RAM and support for I2P, SPI, and UART interfaces. Wide operating voltage range from 1.65V to 5.5V for versatile industrial applications. Includes 33 programmable I/O ports, 3 timers, and 2 analog comparators.
Suitable for embedded systems requiring ultra-low power consumption and high reliability. Maximum supply voltage of 5.5V and maximum power dissipation of 288mW.
This microcontroller is engineered for demanding environments, with an operating temperature range from -40°C to 85°C. The STM8L101F3U6TR offers features like FLASH memory for program storage, RAM for runtime data, and a CISC instruction set architecture for efficient execution. Its programmable I/O ports, analog comparators, timers, and interfaces render it ideal for automation, instrumentation, industrial sensors, and smart device implementations.
Designed for applications where energy efficiency is paramount, the STM8L series boasts dynamic run modes and ultra-low power sleep states. Automation, smart meters, industrial controls, and embedded devices all benefit from the reliable, high-performance STM8 platform. With a surface-mount package, it is well-suited for volume manufacturing and professional PCB production.
Whether used in factory automation, industrial control, consumer electronics, or laboratory instrumentation, the STM8L101F3U6TR reliably supports a wide variety of industrial environments. The robust program memory and interface support facilitate integration into complex multi-device systems.
Explore more microcontrollers and STM8L series devices in the Microcontrollers category from STMicroelectronics. EnvMart makes it easy to discover, compare, and buy high-quality, reliable semiconductors for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8L101F3U6TR operates at a maximum clock frequency of 20 MHz.
It features 8kB of FLASH program memory for application storage.
The operating temperature range is from -40°C to 85°C.
This microcontroller includes 33 programmable I/O ports.
It supports I2P, SPI, and UART interfaces for communication.
The maximum supply voltage is 5.5V.
The dimensions are 0.55mm in height and 3mm in width.
It has a RAM size of 1.5kB.
The STM8L101F3U6TR includes 3 timers.
The maximum power dissipation is 288mW.
It comes in a surface-mount UFQFPN package with a 20-pin configuration.
The microcontroller uses a CISC instruction set architecture.
