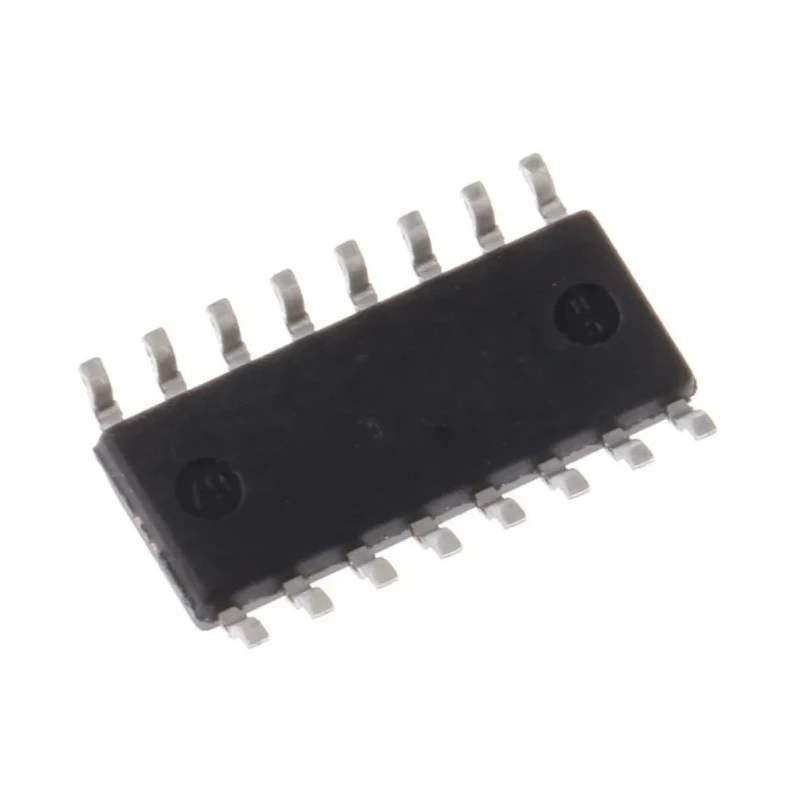

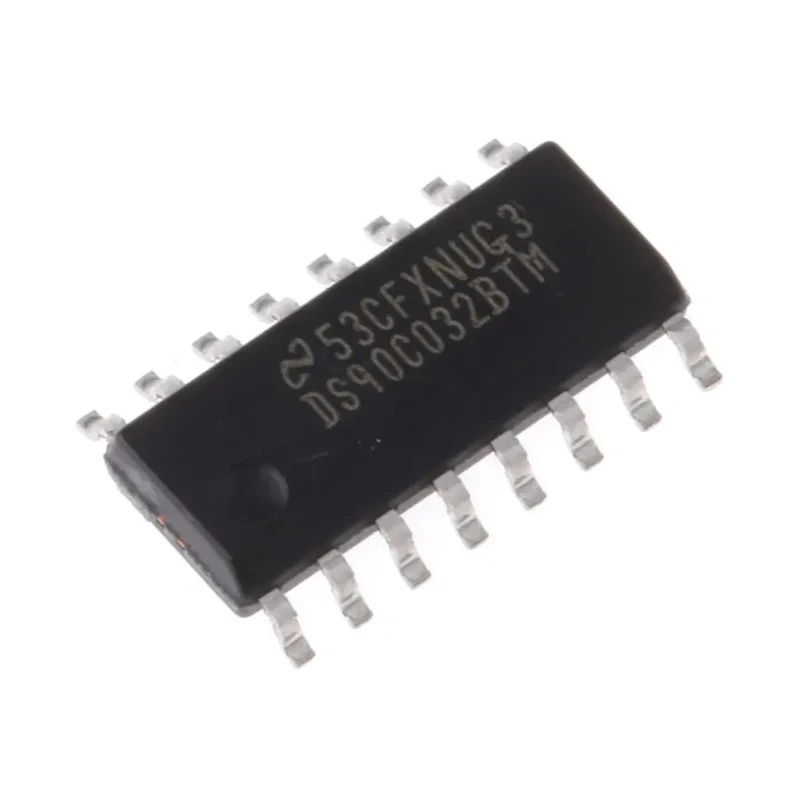

Texas Instruments Receiver IC 4 LVDS CMOS/TTL 16-Pin SOIC DS90C032BTM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.499mm |
| Length | 10mm |
| Model | DS90C032BTM/NOPB |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DS90C032B |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Receiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 155Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- This receiver IC supports 4 LVDS inputs and provides 4 receiver outputs.
- It offers data transmission rates up to 155 Mbps ensuring high-speed communication.
- The compact 16-pin SOIC surface-mount package facilitates easy PCB integration.
- Wide operating temperature range from -40°C to 85°C enables use in harsh environments.
- Operating voltage ranges from 4.5 V to 5.5 V with robust ESD protection.
- Outputs are CMOS/TTL compatible supporting common logic interfaces.
- Complies with RoHS standards for environmental safety.
- Applicable in industrial, electronics, and communication interface applications such as Firewire, SATA, and SCSI.
Product Description
Texas Instruments DS90C032BTM/NOPB receiver IC is a high-speed, low-voltage differential signaling (LVDS) interface device delivering 4 input drivers and 4 receiver outputs with CMOS/TTL compatibility. Housed in a 16-pin SOIC surface mount package, it features a compact design measuring 1.499 mm in height and 10 mm in length suitable for space-constrained electronic assemblies.
With a differential input high threshold voltage of 100 mV and low threshold voltage of -100 mV, this receiver IC operates efficiently across a supply voltage range from 4.5 V to 5.5 V. It is designed to withstand extreme temperatures and includes essential ESD protection, making it reliable for industrial and commercial communication systems.
The device's transmission data rate capability of 155 Mbps enables seamless performance for protocols such as Firewire, SATA, and SCSI where differential signaling is essential. It complies with RoHS directives, facilitating environmentally responsible usage in manufacturing.
This receiver IC finds application in electronics manufacturing, industrial machinery controls, communication equipment, and high-speed data transmission interface systems. The surface mount SOIC package ensures straightforward integration onto printed circuit boards improving production efficiency and product reliability.
This receiver IC supports 4 LVDS inputs and provides 4 receiver outputs. It offers data transmission rates up to 155 Mbps ensuring high-speed communication. The compact 16-pin SOIC surface-mount package facilitates easy PCB integration.
Wide operating temperature range from -40°C to 85°C enables use in harsh environments. Operating voltage ranges from 4.5 V to 5.5 V with robust ESD protection. Outputs are CMOS/TTL compatible supporting common logic interfaces.
Height and length are 1.499 mm and 10 mm respectively for a small footprint. Complies with RoHS standards for environmental safety. Applicable in industrial, electronics, and communication interface applications such as Firewire, SATA, and SCSI.
Explore more semiconductor Interface ICs from Texas Instruments for reliable industrial and communication electronic designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This receiver IC supports a maximum data transmission rate of 155 Mbps, enabling high-speed communication for various applications.
The operating voltage for this receiver IC ranges from 4.5 V to 5.5 V, allowing for flexibility in different electronic designs.
This model has a height of 1.499 mm and a length of 10 mm, making it suitable for space-constrained applications.
It supports 4 LVDS inputs, providing robust performance for differential signaling applications.
The outputs of this model are compatible with CMOS and TTL logic levels, facilitating integration with common logic interfaces.
The unit operates efficiently within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This receiver IC is housed in a 16-pin SOIC surface mount package, which simplifies PCB integration.
The DS90C032BTM/NOPB features 4 drivers and 4 receivers, allowing for efficient data handling in communication systems.
The differential input high threshold voltage is 100 mV, and the low threshold voltage is -100 mV, ensuring reliable signal detection.
Yes, it complies with RoHS standards, ensuring environmentally responsible usage in manufacturing processes.
This receiver IC is applicable in industrial, electronics, and communication interface applications such as Firewire, SATA, and SCSI.
It includes robust ESD protection, enhancing its reliability in various electronic environments.
