Bourns Optical Incremental Encoder 5V dc 64 ppr Quadrature Signal Flatted Shaft 6.35 mm EM14

Free Delivery in India | Lowest Global Shipping Charges

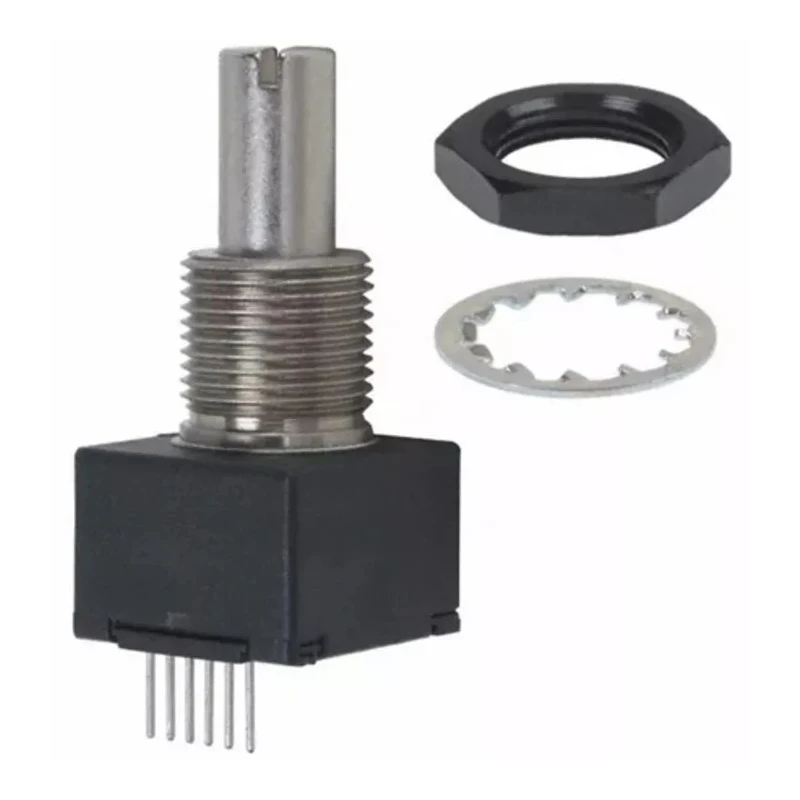

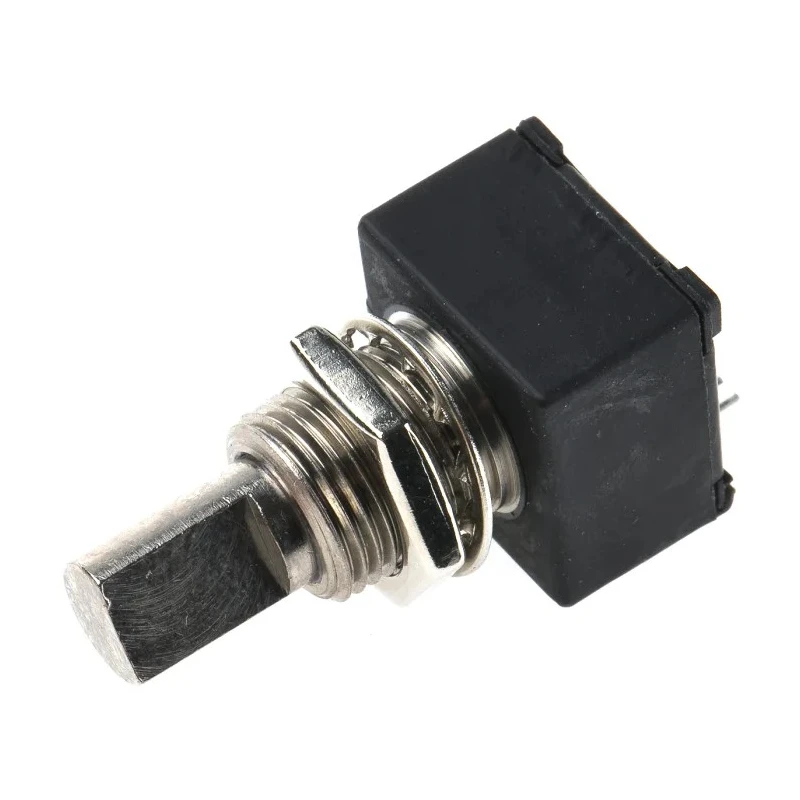

Bourns Optical Incremental Encoder 5V dc 64 ppr Quadrature Signal Flatted Shaft 6.35 mm EM14

Name: Bourns Optical Incremental Encoder 5V dc 64 ppr Quadrature Signal Flatted Shaft 6.35 mm EM14
Brand: BOURNS
SKU: 212767
Price: 36.3 USD
Availability: InStock



Category Optical Encoder Brand BOURNS Condition New

Specifications

Country of Origin	Mexico
Brand	Bourns
Model	EM14
IP Rating	IP54
Mount Type	Panel Mount
Series	EM14
Overall Width	14.25mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Shaft Diameter	6.35mm
Overall height	14.76mm
Shaft Type	Flatted
Terminal type	Axial Multi Purpose Pin
Interface Type	HMI
Pulses per Revolution	64ppr
Standards/Approvals	RoHS
Maximum Supply Voltage	5V dc
Overall Depth	32.05mm
Encoder Technology	Optical
Maximum Revolutions	120rpm
Output Signal Type	Quadrature

Key Features

Optical encoder technology ensures precise incremental position feedback.
Compact 14 mm rotary design with splashproof shaft seal enhances durability.
Compatible with HCMOS, CMOS, and TTL signal levels for versatile interfacing.
Rated IP54 for protection against dust and water splashes.
Panel mount design with axial multi-purpose pin terminals for secure installation.
Operates efficiently within -40°C to 70°C temperature range.
Maximum rotational speed of 120 rpm supports moderate speed applications.
Shaft type is flatted with 6.35 mm diameter, suitable for precise mechanical coupling.

Product Description

Bourns EM14A0D-C24-L064N optical incremental encoder is a compact 14 mm rotary encoder designed to provide accurate 64 pulses per revolution with quadrature signal output at a 5V dc supply. This encoder features optical technology for high precision and durability, suitable for human-machine interface (HMI) and other automation control gear applications.

The unit offers a splashproof shaft seal to enhance operational life and is compatible with HCMOS, CMOS, and TTL output signals, making it adaptable across various electronic control systems. Its flatted shaft with a 6.35 mm diameter ensures precise mechanical coupling and reliable signal generation.

With an IP54 rating, this encoder withstands dust ingress and water splashes, suitable for industrial environments. It supports panel mounting and utilizes axial multi-purpose pin terminals for stable installation. The operating temperature range spans from -40°C to 70°C, allowing use in diverse climatic conditions.

The encoder maintains performance up to 120 rpm maximum rotational speed, making it ideal for moderate-speed position and motion sensing. Manufactured in Mexico under RoHS standards, it meets environmental and regulatory compliance, ensuring quality and safety.

Optical encoder technology for high accuracy. 64 pulses per revolution output for detailed position tracking. Quadrature signal output compatible with various digital electronics. Flatted 6.35 mm shaft designed for precision coupling.

IP54 splashproof rating for protection against dust and water. Panel mount type with multi-purpose axial pin terminals. Operational temperature from -40°C up to 70°C. Maximum rotational speed of 120 rpm. Compliant with RoHS environmental standards.

Manufactured in Mexico ensuring high-quality standards.

This Bourns EM14 series optical incremental encoder is essential for industrial automation, motion control sensing, and HMI applications requiring reliable and precise rotational position feedback. It is part of the broader category of optical encoders used in various electronics and electrical sensor solutions.
