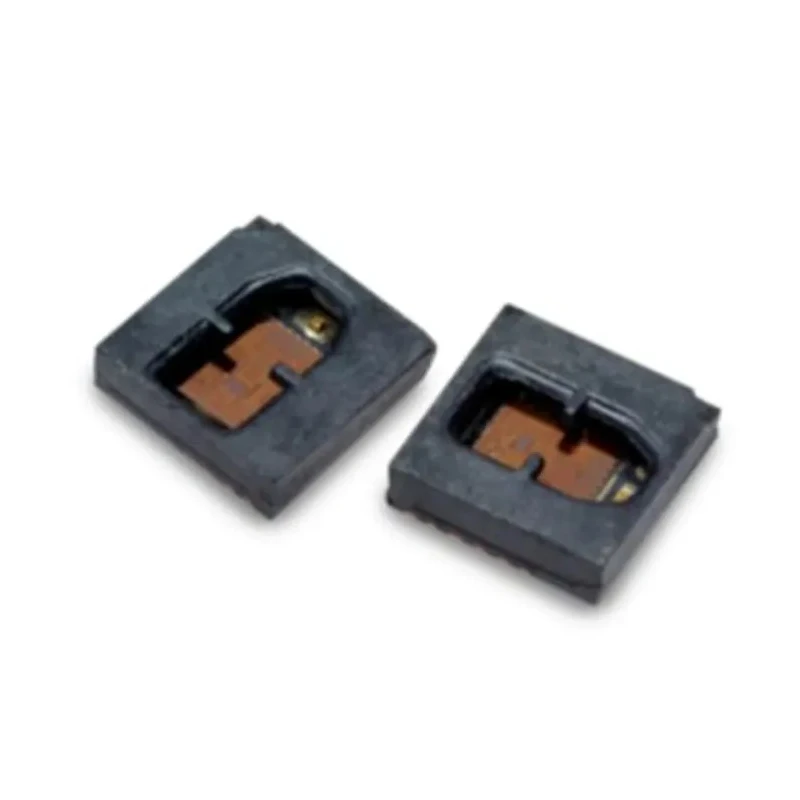

Broadcom Incremental Surface Optical Encoder 2 Channel Quadrature with Index Digital, 3.3V DC / 5V DC AEDR-9820-102

Broadcom AEDR-9820-102 is a robust incremental optical encoder designed for precise motion detection in industrial, automotive, and commercial applications. This surface mount encoder employs reflective technology to convert mechanical rotation into accurate electrical signals. It features 2 channel quadrature signals with an index for position referencing.

The encoder supports dual supply voltages of 3.3V and 5V DC, providing versatile compatibility with various system voltage levels. It offers analog output options with two-channel differential analog and index outputs, as well as digital output options featuring differential or TTL compatible signals. Its built-in interpolator enables resolutions up to 16x, allowing fine resolution adjustments for enhanced control.

Operating reliably within a temperature range from -40°C to 115°C, the AEDR-9820-102 is well-suited for demanding environments. Its surface mount design facilitates easy integration onto planar surfaces in equipment and control systems. The device meets commercial industrial standards and performs without automotive certification.

The encoder is manufactured in Malaysia, ensuring adherence to stringent production and quality assurance processes. Typical applications include manufacturing automation, robotics, HVAC equipment, and motion control systems where precise angular position feedback is essential.

Supports dual supply voltages of 3.3V and 5V DC for flexible integration. Offers both analog and digital output options including differential and TTL compatible signals. Capable of operating within a wide temperature range from -40°C to 115°C.

Designed for surface mounting applications with reflective optical encoder technology. Built-in interpolator supports 1x to 16x signal interpolation enhancing resolution. Suitable for commercial, industrial, and automotive motion control systems.

Manufactured in Malaysia ensuring quality and reliability.
