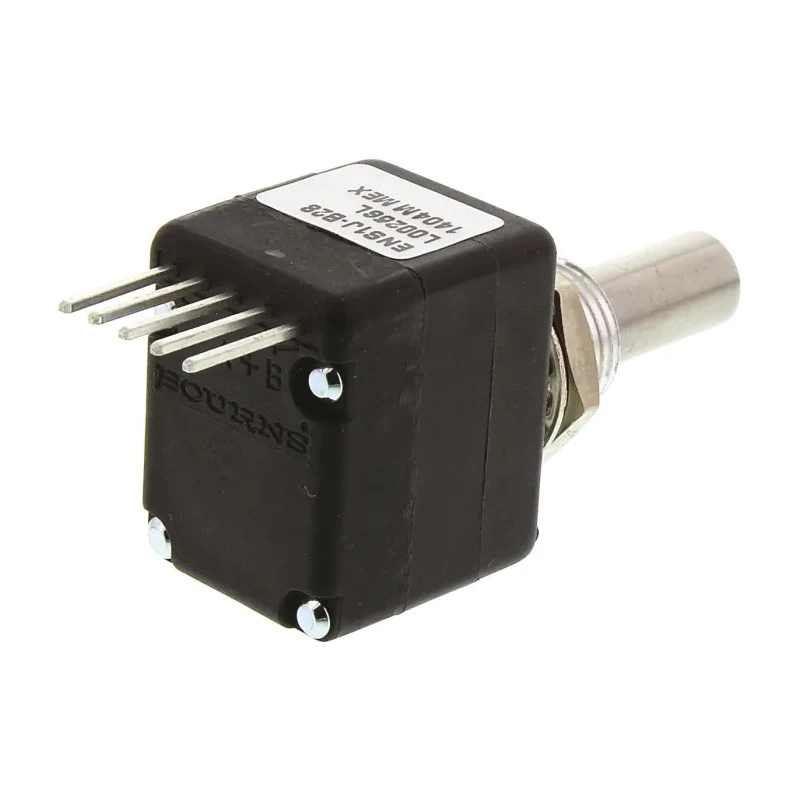

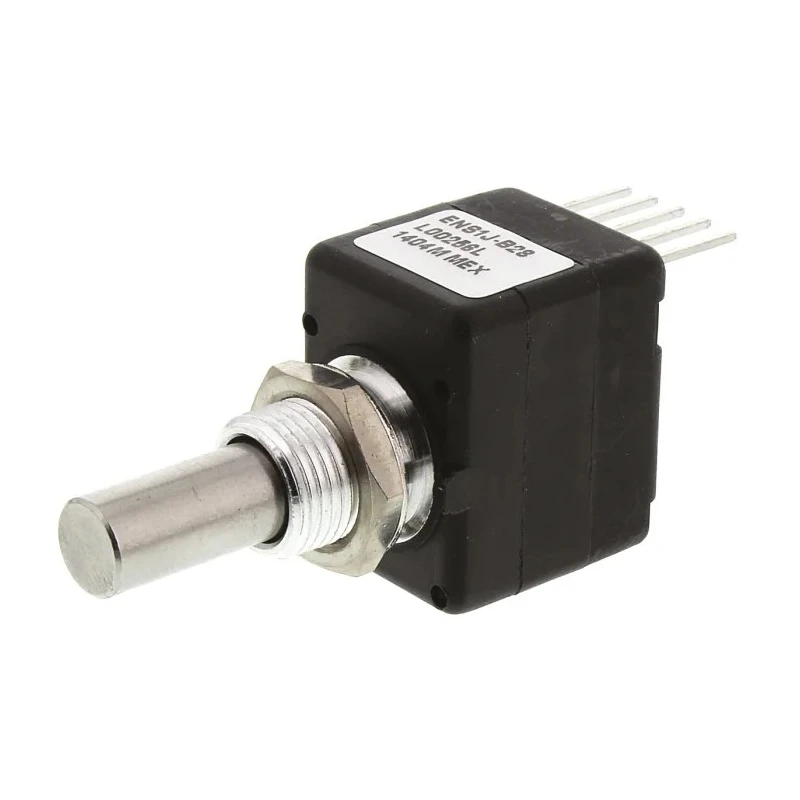

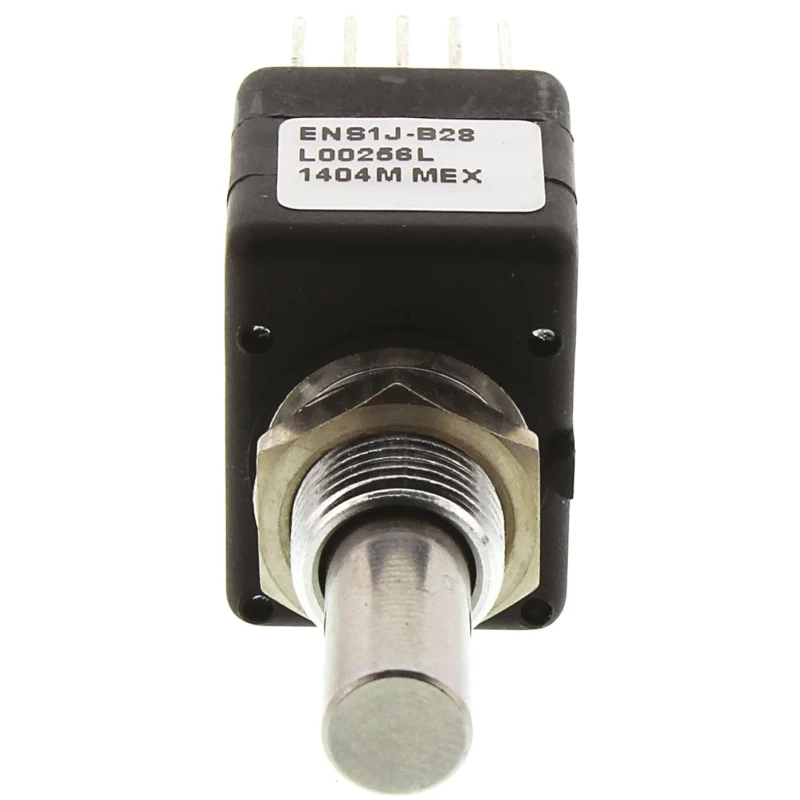

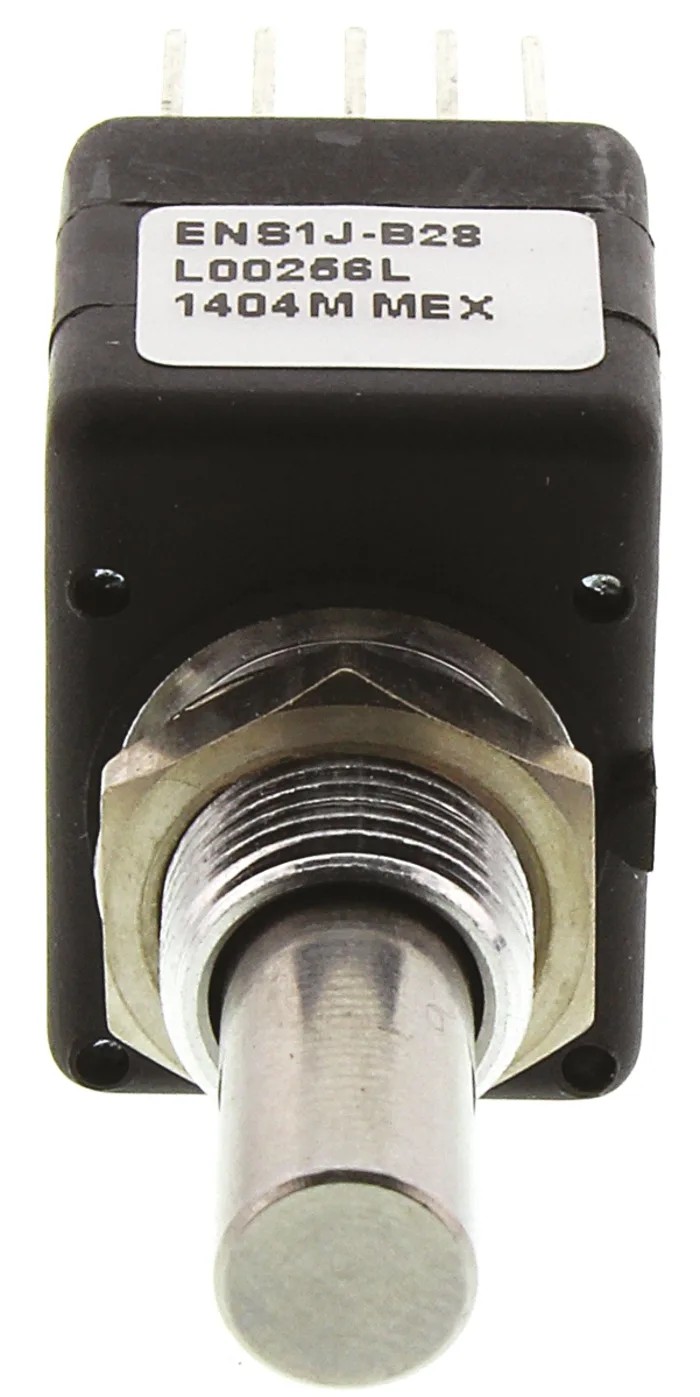

Bourns 5V DC 256 PPR Pulse Optical Encoder with 6.35 mm Round Shaft, Bracket Mount ENS1J-B28-L00256L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | ENS1J-B28-L00256L |
| Mount Type | Bracket Mount |
| Current Rating | 25mA |
| Series | EN |
| Shaft Diameter | 6.35mm |
| Encoder Type | Incremental |
| Shaft Length | 22.23mm |
| Supply Voltage | 5V dc |
| Pulses per Revolution | 256ppr |
| Standards/Approvals | RoHS |
| Mounting Hole Diameter | 9.5 mm |
| Shaft Style | Round |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 3000rpm |
Key Features
- The encoder features a 6.35 mm round shaft with a bracket mounting style for secure installation.
- It supports a supply voltage of 5V DC and delivers 256 pulses per revolution (PPR) with digital square wave output.
- This incremental encoder operates at a maximum speed of 3000 RPM and is CMOS and TTL compatible for versatile signal processing.
- The metal bushing and shaft design ensure long life, with up to 200 million revolutions in ball bearing versions.
- The encoder's mounting hole diameter is 9.5 mm, suitable for bracket mount applications.
- Its current rating is 25mA, providing efficient low power operation.
- Compliant with RoHS standards, the encoder offers reliable and environmentally conscious performance.
- Typical uses include industrial automation, HVAC controls, manufacturing, and instrumentation requiring accurate rotary position sensing.
Product Description
Bourns ENS1J-B28-L00256L 5V DC 256 PPR Pulse Optical Encoder with a 6.35 mm round shaft and bracket mount is a high-precision incremental optical encoder suitable for various industrial applications. Its 256 pulses per revolution provide accurate position feedback essential for digital panel controls and position sensing.
This encoder features a robust metal bushing and shaft construction which delivers durability and a long mechanical life, up to 200 million revolutions in ball bearing configurations. The bracket mount and 9.5 mm mounting hole diameter ensure stable and secure installation in machinery.
Operating at a maximum speed of 3000 rpm, this encoder outputs digital square wave signals compatible with CMOS and TTL logic families, making it versatile across many control systems. Its supply voltage of 5V DC and a current rating of 25mA enable energy-efficient operation.
Conforming to RoHS directives, the product ensures environmentally responsible manufacturing standards. It is ideal for use in automation, manufacturing machinery, HVAC systems, laboratory instruments, and other industrial equipment requiring precise rotary position feedback.
The encoder delivers 256 pulses per revolution with quadrature output for direction and speed sensing. Includes a 6.35 mm round shaft with a sturdy bracket mounting design. Supports a supply voltage of 5V DC and a current rating of 25mA.
Maximum operating speed is 3000 rpm for high-speed applications. Compatible with CMOS and TTL signals for wide interfacing options. RoHS compliant, supporting eco-friendly manufacturing. Suitable for applications requiring reliable and long-life rotary sensing solutions.
Explore more Optical Encoder solutions and other sensor components on EnvMart for industrial and electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed of this optical encoder is 3000 RPM.
This model requires a supply voltage of 5V DC.
It provides 256 pulses per revolution (PPR).
The encoder features a bracket mounting style for secure installation.
The current rating of this encoder is 25mA.
The shaft diameter is 6.35 mm.
Yes, it is compatible with both CMOS and TTL logic families for versatile signal processing.
The mounting hole diameter is 9.5 mm, suitable for bracket mount applications.
The shaft length is 22.23 mm.
It outputs a digital square wave signal.
This encoder is compliant with RoHS standards.
Typical applications include industrial automation, HVAC controls, manufacturing, and instrumentation requiring accurate rotary position sensing.
