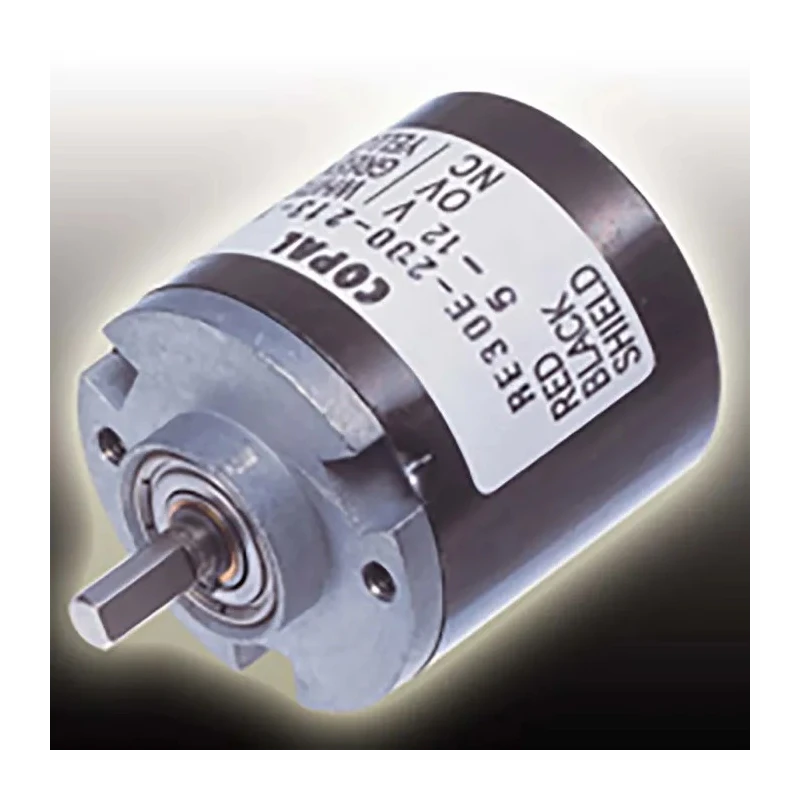

Nidec Components 12V dc, 5 V dc 1024 Pulses Per Revolution Pulse Optical Encoder with 4 mm Plain Shaft RE30E-1024-213-1

Nidec Components RE30E-1024-213-1 Optical Encoder is an incremental pulse optical encoder with 1024 pulses per revolution, digital square wave signal, and operates at 12V dc and 5V dc supply voltages. It is designed with a 4 mm diameter plain shaft and panel mount style, terminated with cable connection for reliable interface.

The encoder uses an LED light source passing through a rotating disk slit to actuate a photosensor, whose output is then shaped into square wave pulses by a voltage comparator. This provides precise and reliable rotary position feedback suitable for various industrial applications.

Key features include a temperature compensation circuit for consistent performance and an operating range of 0 °C to 70 °C. It is rated with IP40 protection to resist solid particles and includes a zero index signal enabling exact reference position detection.

The current rating is 50 mA, contributing to efficient power usage. It complies with RoHS environmental standards and is manufactured in Japan, reflecting high quality and performance standards.

This optical encoder suits applications in industrial automation, robotics, control systems, HVAC equipment, and manufacturing processes requiring precise shaft position or speed monitoring.

Incremental Optical Encoder with panel mount configuration. Features a 4 mm diameter plain shaft suitable for precise rotary position sensing. Equipped with a cable termination style for easy integration. Includes a temperature compensation circuit for stable operation.

Operating temperature range from 0 °C to 70 °C ensuring wide industrial applicability. IP40 protection class provides resistance against solid particle ingress. Equipped with zero index signal for reference positioning. Current rating of 50 mA for efficient power consumption.

Compliant with RoHS standards for environmental safety. Manufactured in Japan ensuring high-quality standard.

This product is part of the Nidec Components RE30E series optical rotary encoders, ideal for integration into electronics and electrical control systems at various industries listed in the EnvMart catalog.
