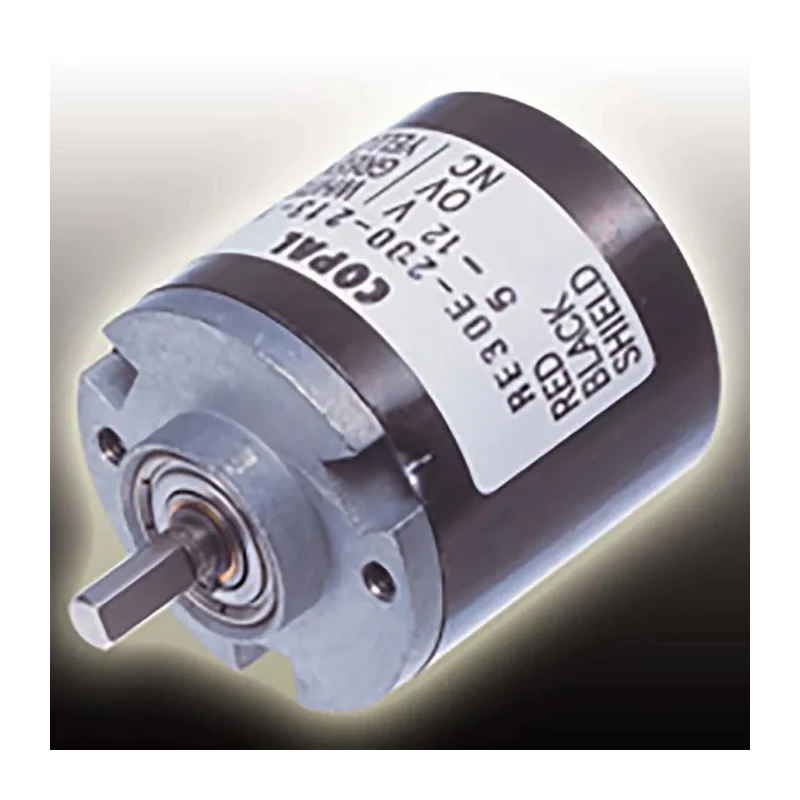

Nidec Components 12V DC, 5V DC 200 PPR Pulse Optical Encoder with 4mm Plain Shaft, Panel Mount, Cable RE30E-200-213-1

Nidec Components RE30E-200-213-1 optical encoder is a precision incremental rotary encoder designed for industrial and electronic applications requiring accurate position sensing. It features a 200 pulses per revolution (PPR) output with digital square wave signals generated by shaping the quasi-sinusoidal photodetector output through a voltage comparator.

This encoder operates on dual supply voltages of 12V and 5V DC, providing versatility for integration in diverse systems. The 4 mm plain shaft with panel mount facilitates easy installation and mounting in control panels or machinery enclosures.

Equipped with a temperature compensation circuit, it maintains reliable performance across the operating temperature range of 0 °C to 70 °C. The zero index signal allows for precise referencing, and the device offers an IP40 protection rating to safeguard against ingress of solid particles in controlled environments.

The encoder has a low current consumption of 50 mA, contributing to energy-efficient operation. It is RoHS compliant, ensuring adherence to environmental and safety standards. Designed and manufactured in Japan, this component is suited for industrial automation, robotics, instrumentation, and other precision motion control applications.

Operates at 12V and 5V DC supply voltages for flexibility. Provides 200 pulses per revolution for accurate position feedback. Digital square wave output signal for clean detection. Panel mount design with 4 mm plain shaft.

Temperature compensation ensures stable performance. Zero index signal for precise positional reference. IP40 protection class suitable for controlled environments. Compliance with RoHS environmental standards. Low current rating of 50 mA for energy efficiency.

Operating temperature range of 0 °C to 70 °C.

This optical encoder is an excellent choice for integration into industrial machines, electronic control systems, laboratory instrumentation, robotics, HVAC equipment, and water treatment monitoring systems. Its compact design and reliable signal output make it ideal for accurate rotational position and speed measurement.
