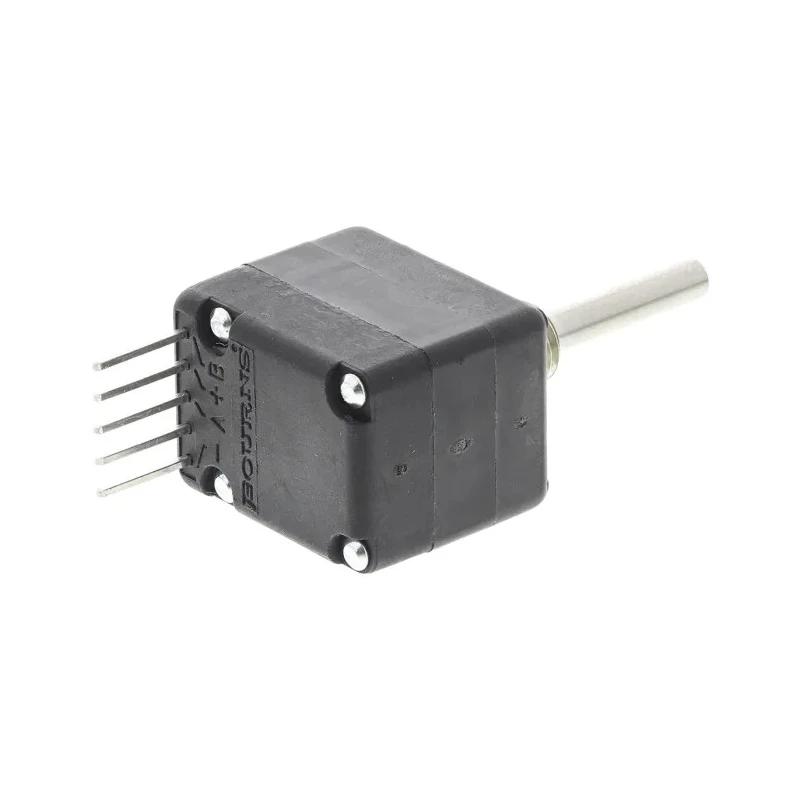

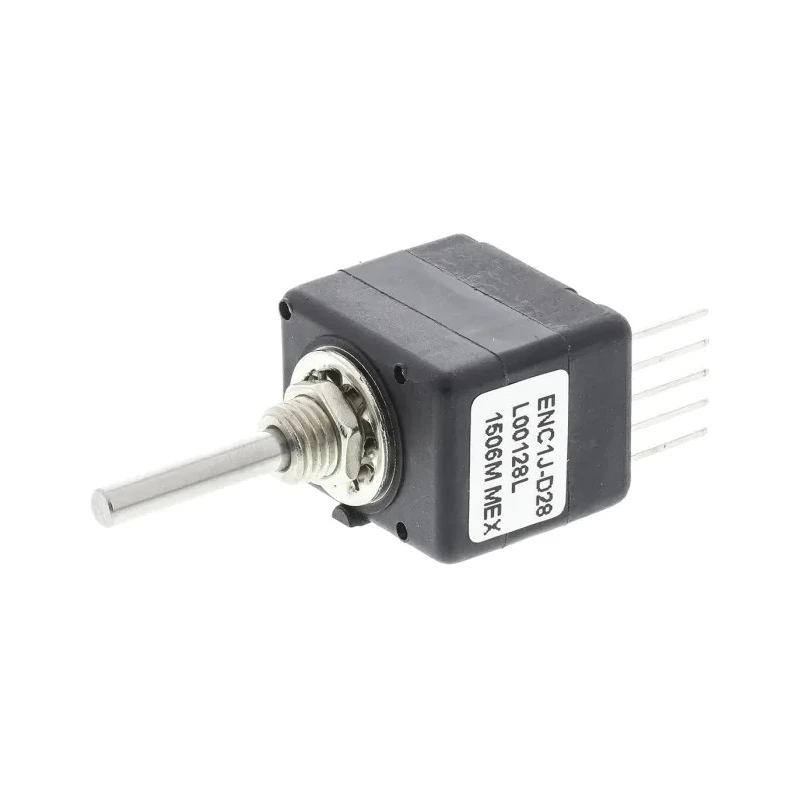

Bourns EN Series Optical Encoder 5V DC, 128 PPR Pulses Per Revolution, Quadrature Signal, End Type Shaft ENC1J-D28-L00128L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | ENC1J-D28-L00128L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | EN |
| Overall Width | 21.21mm |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 47.05mm |
| Shaft Type | End |
| Terminal type | Axial |
| Pulses per Revolution | 128ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 15.88mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 3000rpm |
| Output Signal Type | Quadrature |
Key Features
- Operates with a maximum supply voltage of 5V DC.
- Provides quadrature two-channel output for accurate position monitoring.
- Features a 6.35 mm end-type shaft for easy installation.
- Designed for panel mount with axial terminal type and IP40 rating.
- Compatible with CMOS and TTL logic circuits.
- Supports a maximum rotation speed of 3000 rpm.
- Operates reliably from -40°C to 75°C ambient temperatures.
- Compact dimensions with 47.05 mm height, 21.21 mm width, and 15.88 mm depth.
Product Description
The Bourns ENC1J-D28-L00128L is an EN Series Optical Encoder designed for accurate rotary position sensing and motion control applications. It operates on a 5V DC supply voltage and delivers 128 pulses per revolution (PPR) via a quadrature two-channel output signal, ideal for detecting direction and speed of rotation.
This encoder features an end-type 6.35 mm diameter shaft, making it versatile for integration into various industrial machinery and automation systems. Its panel mount design with axial terminals offers straightforward installation options.
Built with optical encoder technology, it ensures precise position feedback and long life, compatible with CMOS and TTL logic levels. With an IP40 ingress protection rating, it is suited for environments with minimal dust exposure.
Operating temperature ranges from -40°C to 75°C enable it to perform reliably in demanding industrial and automation contexts. The encoder supports rotational speeds up to 3000 rpm, suitable for many motion control sensors applications.
Compact dimensions (47.05 mm height, 21.21 mm width, 15.88 mm depth) make the device space-efficient. It is RoHS compliant, ensuring adherence to environmental and safety standards.
Operates with a maximum supply voltage of 5V DC. Provides quadrature two-channel output for accurate position monitoring. Features a 6.35 mm end-type shaft for easy installation. Designed for panel mount with axial terminal type and IP40 rating.
Compatible with CMOS and TTL logic circuits. Supports a maximum rotation speed of 3000 rpm. Operates reliably from -40°C to 75°C ambient temperatures. Compact dimensions with 47.05 mm height, 21.21 mm width, and 15.88 mm depth.
This optical encoder is suitable for a variety of industrial applications including automation systems, robotics, manufacturing equipment, and motion control sensors. Its precise feedback capabilities aid in enhancing machine efficiency and control accuracy.
Explore EnvMart’s comprehensive category of Motion Control Sensors and Optical Encoders to find compatible products and accessories for your industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V DC.
It provides 128 pulses per revolution (PPR).
This unit delivers a quadrature two-channel output signal.
It supports a maximum rotation speed of 3000 rpm.
The overall dimensions are 47.05 mm in height, 21.21 mm in width, and 15.88 mm in depth.
It features a 6.35 mm end-type shaft.
It operates reliably within a temperature range of -40°C to 75°C.
The encoder has an IP40 ingress protection rating.
It is designed for panel mount with axial terminal type.
Yes, it is compatible with CMOS and TTL logic circuits.
It is RoHS compliant, ensuring adherence to environmental and safety standards.
It is suitable for automation systems, robotics, manufacturing equipment, and motion control sensors.
