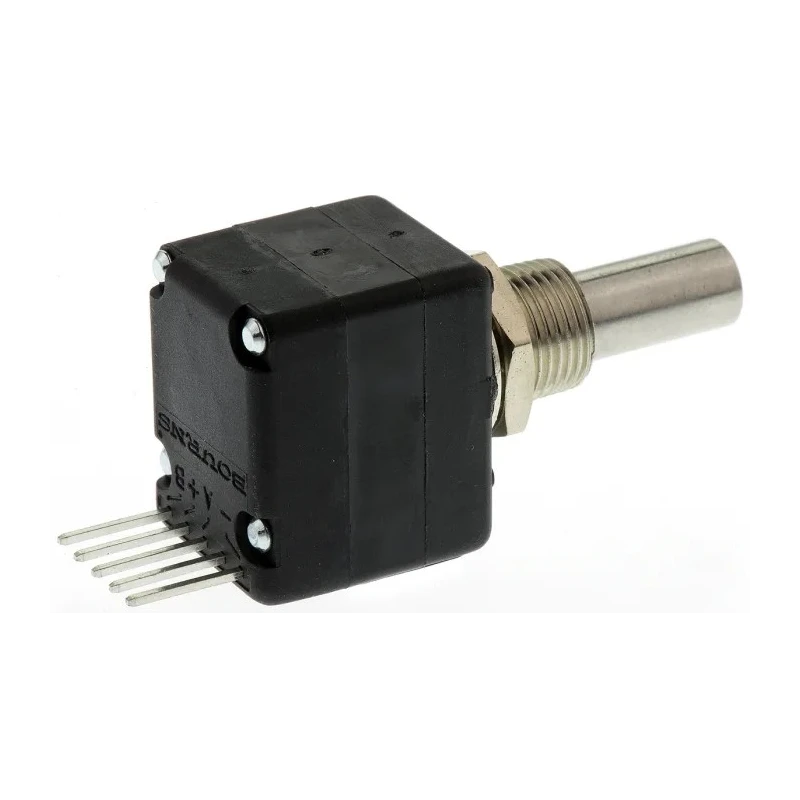

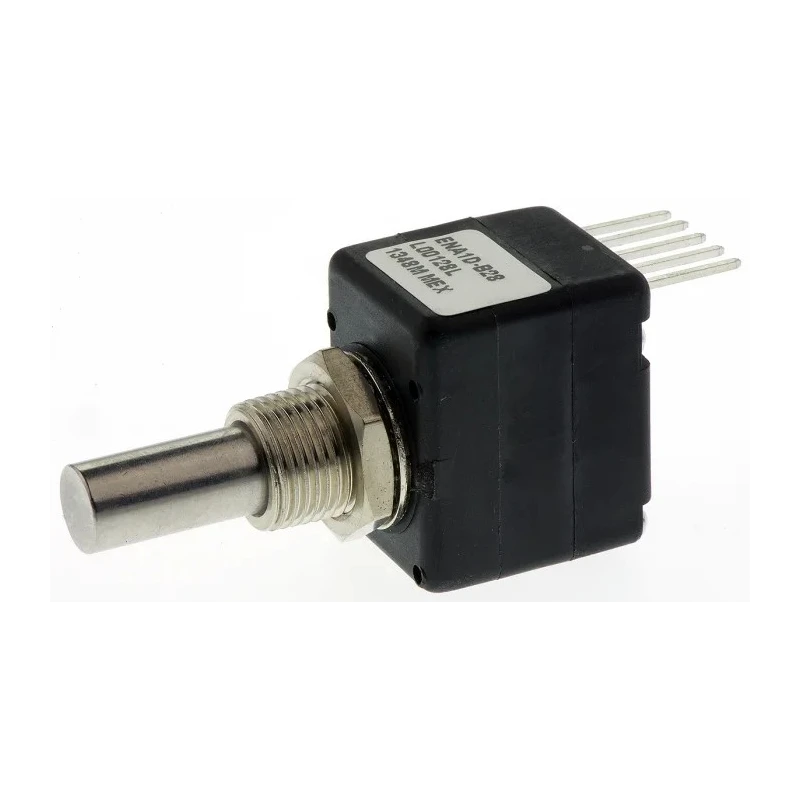

Bourns 5V dc 128 PPR Pulse Optical Encoder with 6.342 mm Plain Shaft, Bracket Mount, Axial ENA1D-B28-L00128L

Bourns ENA1D-B28-L00128L pulse optical encoder is a high-precision incremental rotary encoder featuring 128 pulses per revolution, powered by a 5V DC supply. It is designed with a 6.342 mm plain shaft and bracket mounting with axial termination, making it ideal for precise position sensing and digital panel control.

This optical encoder produces a digital square wave output, fully compatible with CMOS and TTL logic systems. The metal bushing and shaft construction ensure durability and a high operating speed capability of up to 3000 rpm.

The EN series encoders from Bourns are known for their long life expectancy, achieving up to 10,000,000 mechanical revolutions, making them highly reliable for industrial automation, manufacturing equipment, and control instrumentation.

Mounting is facilitated by the bracket mount, and the shaft length is 22.23 mm, with a mounting hole diameter of 0.99 mm. This model is RoHS compliant and built to meet demanding electronic component standards.

Typical applications include industrial automation, robotics, HVAC systems, and machinery where precise rotary position measurement is critical. The incremental encoder type with 2-bit quadrature output allows accurate direction and speed sensing.

This incremental rotary optical encoder outputs a digital square wave compatible with CMOS and TTL logic. Bracket mount design with axial termination simplifies installation. Max operating speed is 3000 rpm, suitable for demanding applications.

Metal bushing and shaft ensure durability and extended encoder life. RoHS compliant and manufactured in Mexico. Explore more Optical Encoders at EnvMart for industrial and electronic applications demanding precision and reliability.
