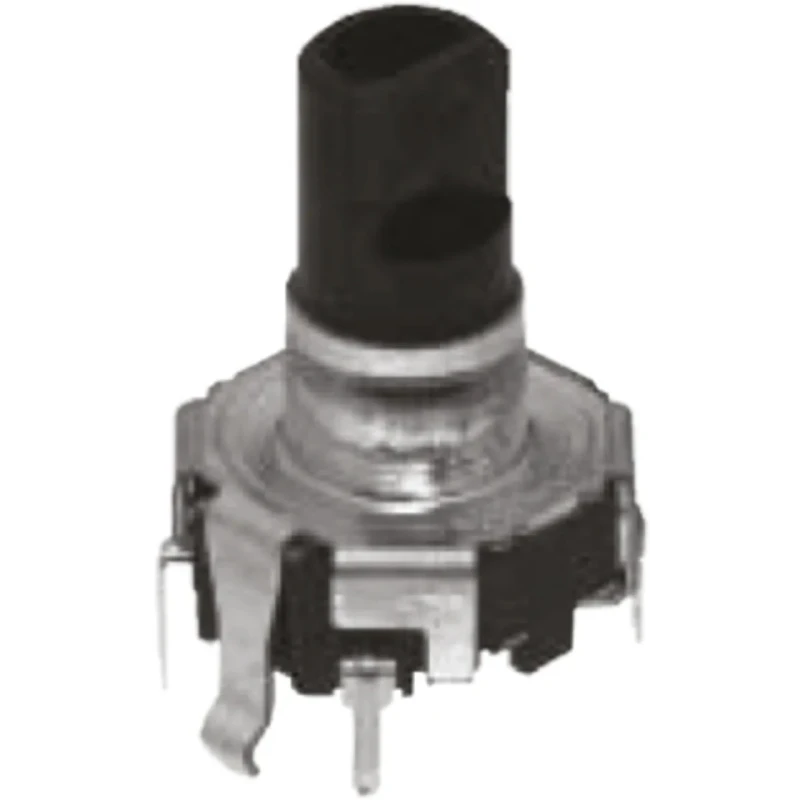

Alps Alpine 15 ppr Pulse Incremental Mechanical Rotary Encoder with 5.975 mm Flat Shaft, Through Hole EC12D1564404

Alps Alpine EC12D1564404 is a high-precision 15 ppr pulse incremental mechanical rotary encoder featuring a 5.975 mm flat shaft and through-hole mount style. It generates digital square wave signals ideal for accurate shaft position feedback in various industrial and electronic applications.

The EC12 series insulated shaft encoder is designed for durability and reliability, boasting an operating life of up to 30,000 cycles with detent and temperature ranges from -40℃ to +85℃, making it well suited for harsh environments and continuous operation.

This encoder's 17.5 mm shaft length and flat shaft design provide secure mechanical coupling and compatibility with many mounting configurations. The 0.5 mA current rating supports integration into low power electronics, ensuring efficient operation.

Key RoHS compliance guarantees adherence to environmental safety and hazardous substance standards. Originating from Japan, this component reflects stringent quality and manufacturing processes.

Typical use cases include industrial machinery position sensing, robotics, HVAC controls, and automation systems requiring precise incremental feedback. Provides 15 pulses per revolution for accurate shaft position detection.

Flat shaft with 5.975 mm diameter for stable mechanical engagement. Incremental digital square wave output for reliable signal processing. Through-hole mounting ensures strong physical and electrical connection. Surface mount termination for secure PCB integration.

RoHS compliant for environmental safety. Operating temperature from -40 to +85 degrees Celsius supports industrial environments. Current rating of 0.5 mA suits low power applications. Manufactured in Japan assuring high quality and durability.
