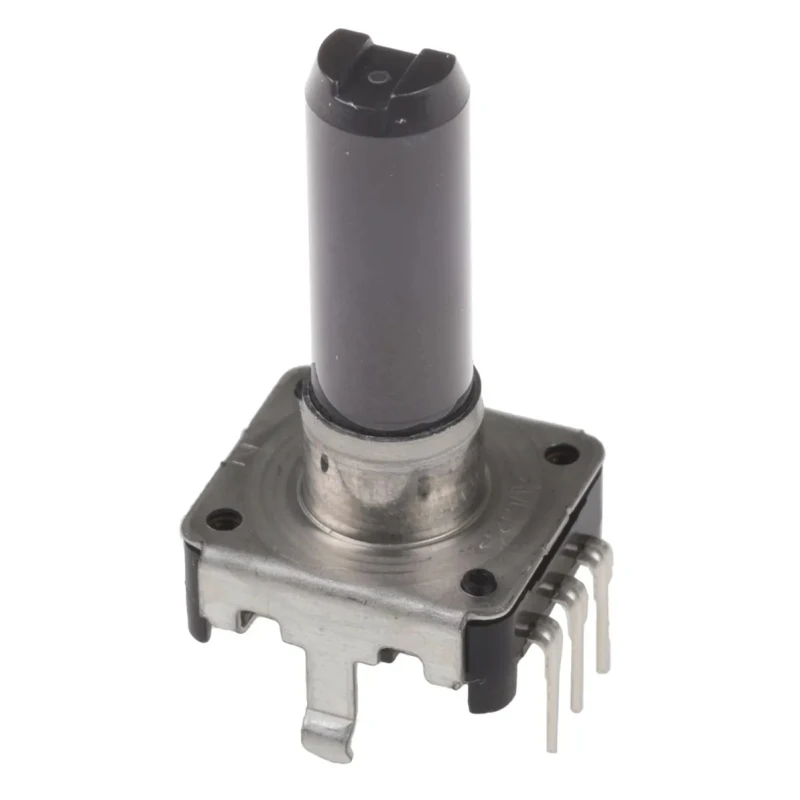

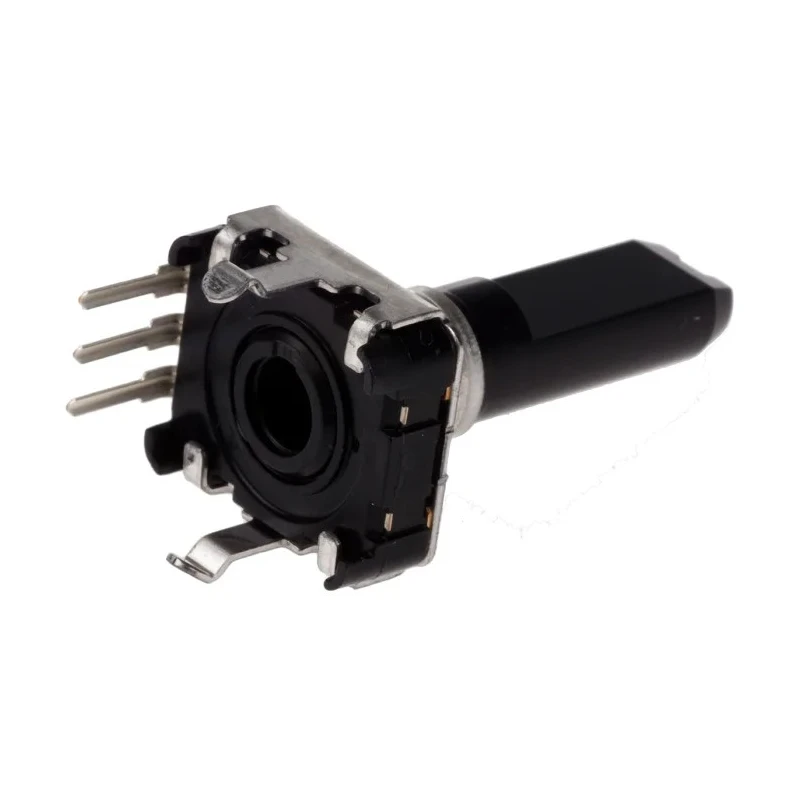

Alps Alpine 24 ppr Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft 25 mm Length EC12E24204A9

Alps Alpine EC12E24204A9 is a 24 pulses per revolution incremental mechanical rotary encoder designed with a 6 mm flat shaft and 25 mm shaft length. This encoder produces a digital square wave signal output, ideal for precision position detection in industrial and electronic applications.

The flat shaft style and through hole mount type enable stable mechanical mounting, while the surface mount termination offers dependable electrical contacts. Compliant with RoHS standards, this encoder ensures reduced environmental impact and meets safety regulations.

Operating at a 5 Vdc typical rating and only consuming 0.5 mA current, this rotary encoder is energy efficient. It is suitable for environments with temperatures from -10 to +70°C, making it adaptable to a range of industrial, manufacturing, and automation tasks.

The EC12 series rotary encoder features both push-on switch and non-indexed versions, offering flexibility based on application needs. The mechanical design allows for up to 15,000 cycles of operation without detent and up to 30,000 cycles with detent, ensuring long-term reliability.

The incremental encoder provides a digital square wave output for accurate position sensing. 6 mm diameter flat shaft designed for through hole mounting ensures secure mechanical engagement. Surface mount termination style facilitates reliable electrical connections.

The device is RoHS compliant, confirming its environmental safety standards. Typical operating current is 0.5 mA with a rated voltage of 5 Vdc. Operating temperature range is -10 to +70°C, suitable for various industrial applications.

Operating life extends to 15,000 cycles without detent and 30,000 cycles with detent.

This Mechanical Rotary Encoder is suitable for integration in industrial automation, robotics, CNC machinery, and instrumentation where precise shaft rotation measurement is necessary. It is often utilized in manufacturing processes, control systems, and sensor applications.

Explore the full range of precise electronic sensors and rotary encoders at EnvMart for all your industrial and laboratory needs.
