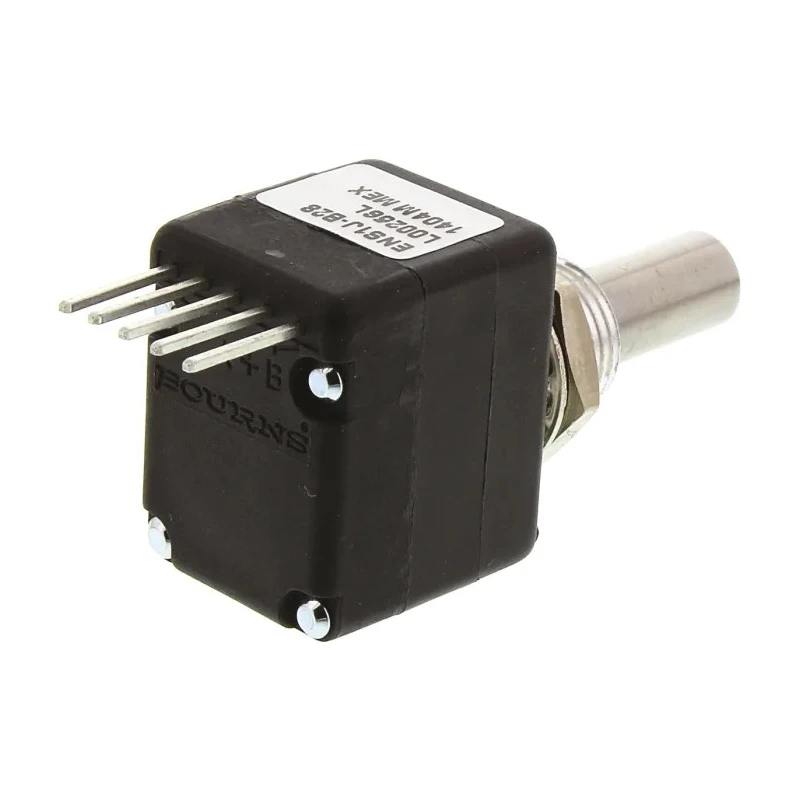

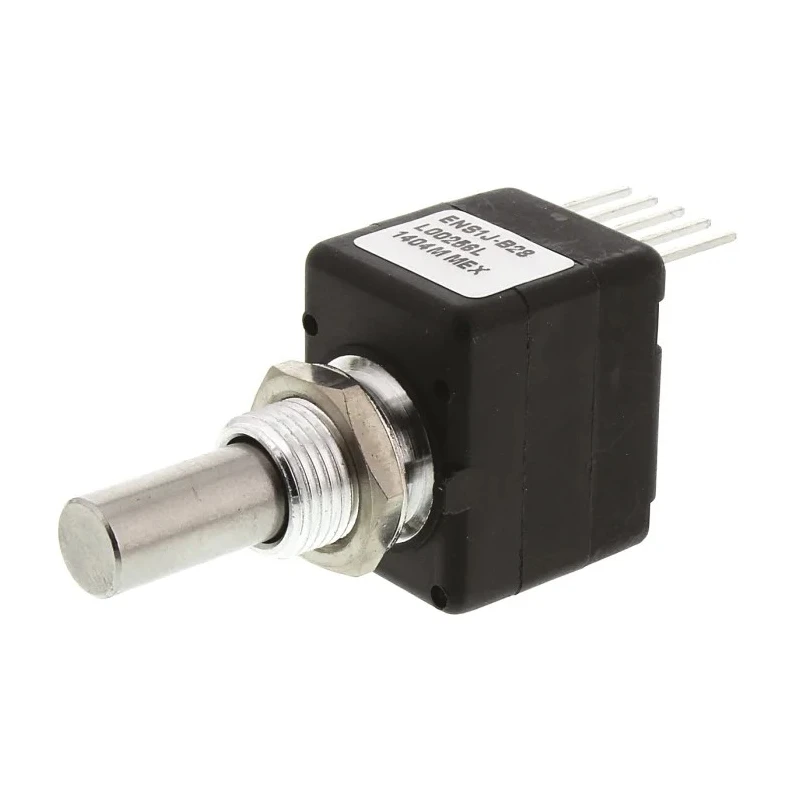

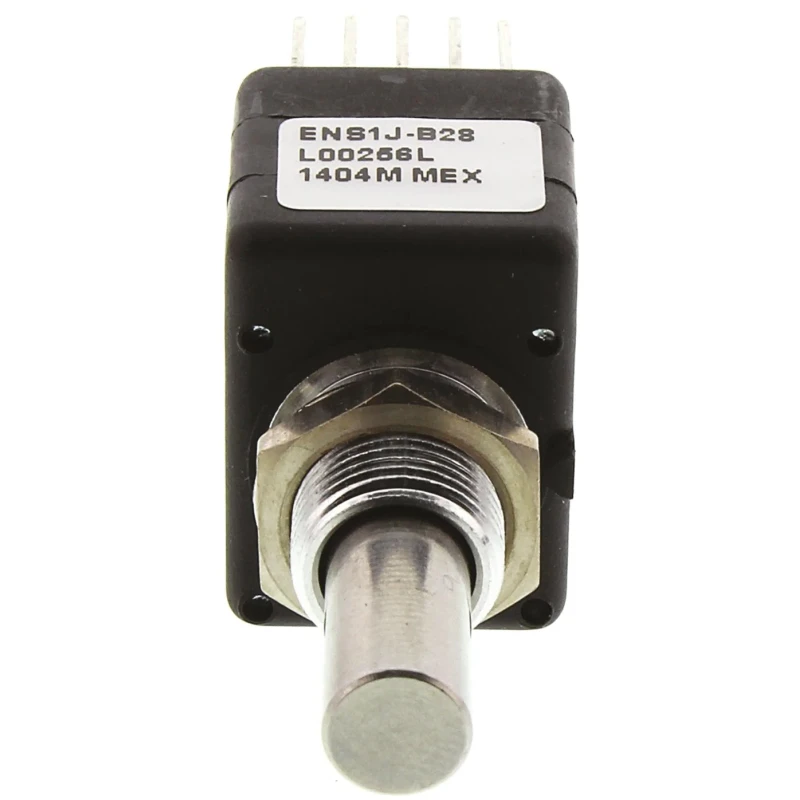

Bourns 5V DC 256 PPR Incremental Pulse Optical Encoder with 6.35 mm Round Shaft, Bracket Mount ENS1J-B28-L00256L

Bourns ENS1J-B28-L00256L is a 5V DC powered incremental pulse optical encoder featuring a resolution of 256 pulses per revolution (PPR). This optical encoder is designed with a 6.35 mm round metal shaft and a bracket mount to support easy and secure installation in industrial and electronic applications.

Equipped with a digital square wave output, this encoder provides highly reliable position sensing and speed feedback compatible with CMOS and TTL logic systems. The robust build includes a metal bushing and shaft ensuring long operational life, rated for up to 10,000,000 revolutions or 200,000,000 revolutions in ball bearing models. It supports a maximum operating speed of 3000 rpm suitable for high-speed rotary measurement tasks.

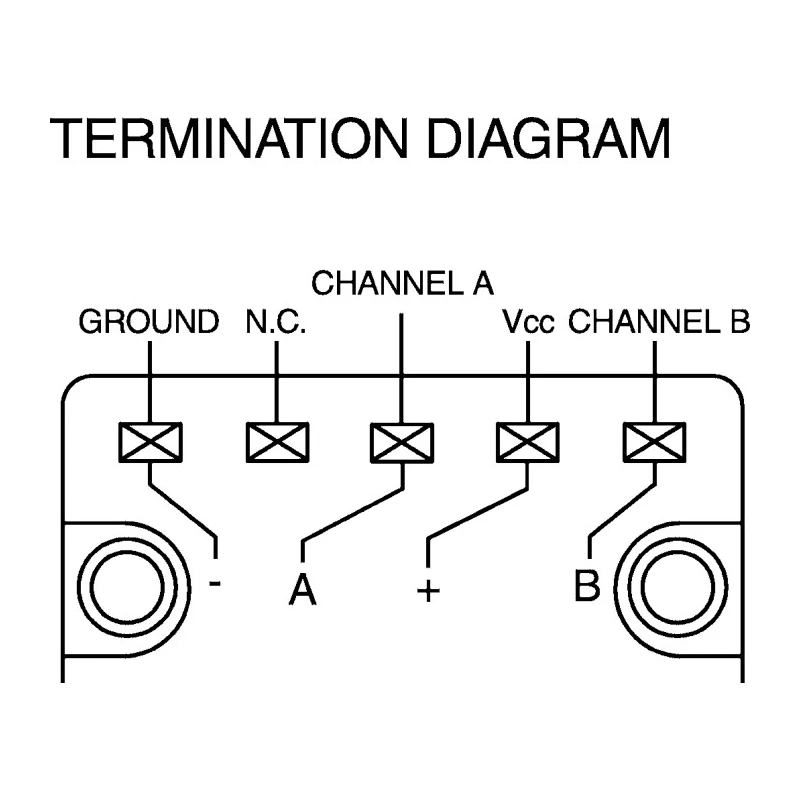

The EN series includes an advanced 2-bit quadrature output where channel A leads channel B by 90° in clockwise rotation, enabling accurate directional detection and incremental position tracking. The shaft length measures 22.23 mm with a mounting hole diameter of 9.5 mm, allowing integration into various mechanical assemblies.

Typical industrial applications include digital panel controls, position sensing, and automated machinery requiring precise rotation feedback with enhanced linearity and resolution. This encoder complies with RoHS regulations, ensuring environmentally responsible manufacturing standards. The product is manufactured in Mexico and is engineered for continuous mechanical rotation operational use.

256 pulses per revolution for high-resolution feedback. Bracket mounting for secure mechanical attachment. Digital square wave output compatible with CMOS and TTL inputs. Supports up to 3000 rpm operating speed for dynamic applications.

Metal bushing and shaft provide extended durability. 2-bit quadrature output for direction and position sensing. Compact form factor with 6.35 mm shaft diameter and 22.23 mm shaft length. RoHS compliant ensuring restrictive substances limits.

Manufactured in Mexico for quality assurance.

This Bourns Optical Encoder is suitable for use in electronics manufacturing, industrial automation, robotics, laboratory instrumentation, and HVAC systems. It offers precise incremental measurement solutions essential for advanced control and monitoring equipment.
