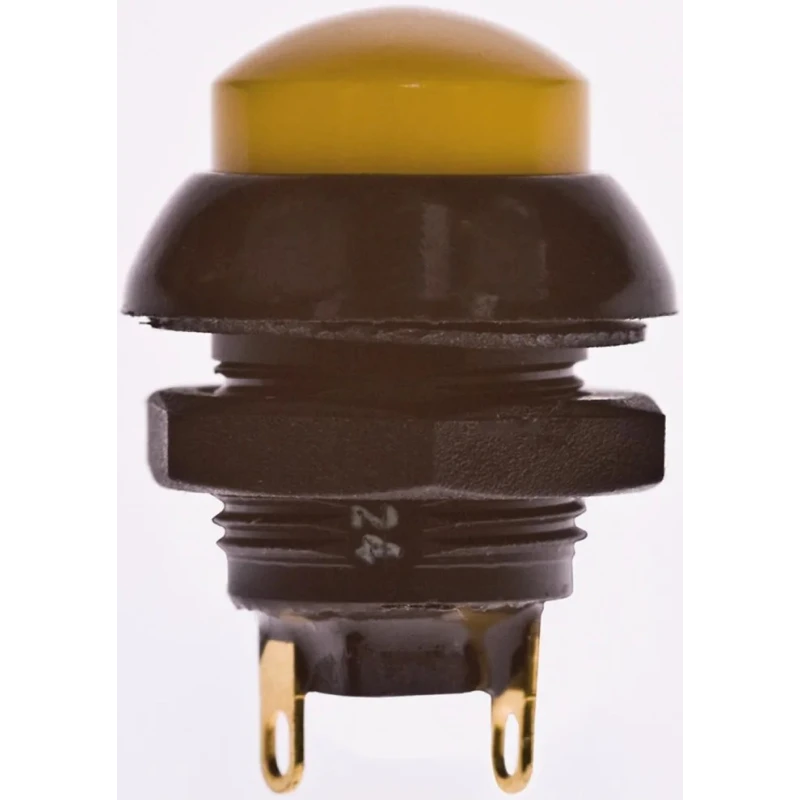

Otto P9 Series Push Button Switch Momentary Panel 0.5 in Cutout SPDT Yellow LED IP68 28 V dc 115 V ac P9213124W
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Otto |
| Operating Temperature | -55 to +85°C |
| Model | P9213124W |
| IP Rating | IP68 |
| Mount Type | Panel |
| Series | P9 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -55°C |
| Panel Cutout Size | 0.5 in |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
Key Features
- Designed for panel mounting with a compact 0.5 in cutout size.
- Momentary switch operation with SPDT (Single Pole Double Throw) contacts.
- Illuminated with a yellow LED for visual status indication.
- IP68 certified, ensuring watertight sealing up to 1 meter depth.
- Suitable for DC voltages up to 28 V and AC voltages up to 115 V.
- Operating temperature range from -55°C to +85°C.

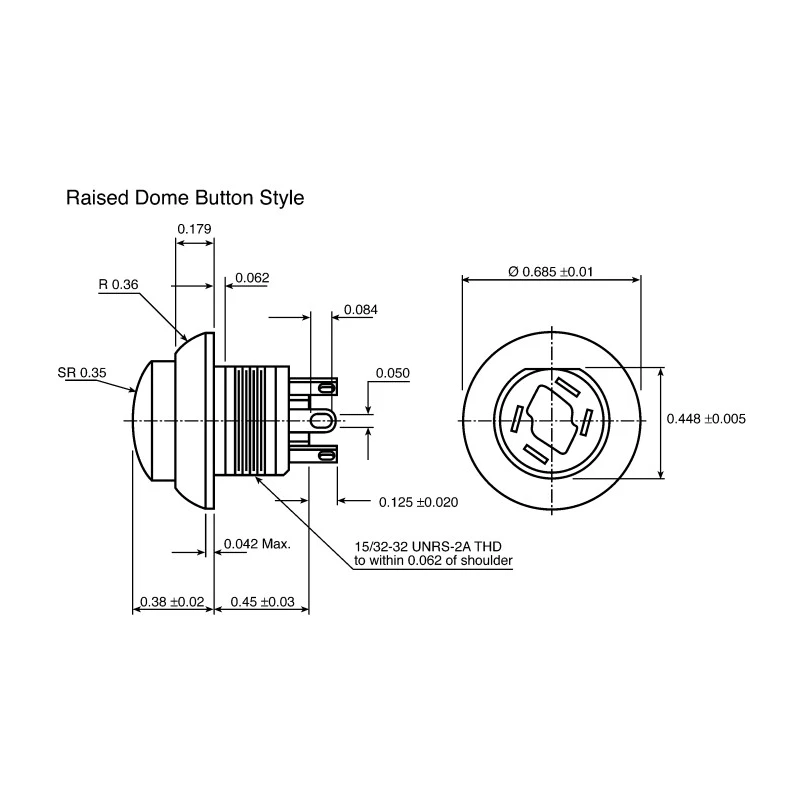

- Low profile black body with a contoured dome style push button.
- Rated for 5 A resistive load and 3 A inductive load with high mechanical and electrical life cycles.
Product Description
Otto P9213124W series push button switch is a high-quality panel mount device featuring momentary action and a SPDT contact configuration. This switch is designed with a 0.5 inch panel cutout, making it suitable for use in compact and demanding applications. It features a yellow LED illumination for status indication and is constructed with a robust black contoured dome style push button.
The switch body is threaded facilitating secure hex nut mounting and has a short behind panel depth of approximately 12mm. It is sealed to IP68 standard, providing watertight protection suitable for submersion up to 1 meter water pressure, making it ideal for harsh environments.
Operating temperatures span from -55°C to +85°C with a contact rating supporting 5 amps resistive or 3 amps inductive loads at 28 V DC or 115 V AC. The P9 series switch is engineered for durability, boasting approximately one million mechanical operations and 25,000 electrical operations, coupled with low contact resistance for reliable low level switching capability.
Applications include use in panels, control grips, computers, instruments, heavy equipment, and other industrial environments where rugged and reliable push button switches are required. The switch is supplied complete with a nut and panel seal gasket for installation.
Designed for panel mounting with a compact 0.5 in cutout size. Momentary switch operation with SPDT contacts for versatile circuit control. Yellow LED illumination enhances visual feedback in operation. IP68 rating ensures water and dust resistance suitable for submersible conditions.
Operates reliably between -55°C and +85°C temperatures. High durability with one million mechanical and 25,000 electrical operation cycles. Low contact resistance supports low level switching. Robust black contoured dome style push button in a compact form.
Supplied with mounting nut and panel seal gasket for secure installation.
This Otto push button switch is ideal for various industrial and commercial applications, including electrical control panels, automation equipment, and machinery interface systems.
Explore more products in the Push Button Switch category for robust and reliable switching solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this model is from -55°C to +85°C.
This switch requires a panel cutout size of 0.5 inches for installation.
It features a Single Pole Double Throw (SPDT) contact configuration.
The switch has an IP68 rating, ensuring it is watertight and dustproof, suitable for submersion up to 1 meter.
It supports DC voltages up to 28 V and AC voltages up to 115 V.
The switch is rated for a maximum current of 5 A for resistive loads and 3 A for inductive loads.
The illumination color of the LED in this switch is yellow, providing visual status indication.
This model is rated for approximately one million mechanical operations and 25,000 electrical operations.
It uses solder type terminals for connections.
The switch is supplied complete with a mounting nut and a panel seal gasket for secure installation.
This model complies with RoHS standards.
It is suitable for use in panels, control grips, computers, instruments, heavy equipment, and other industrial environments.
