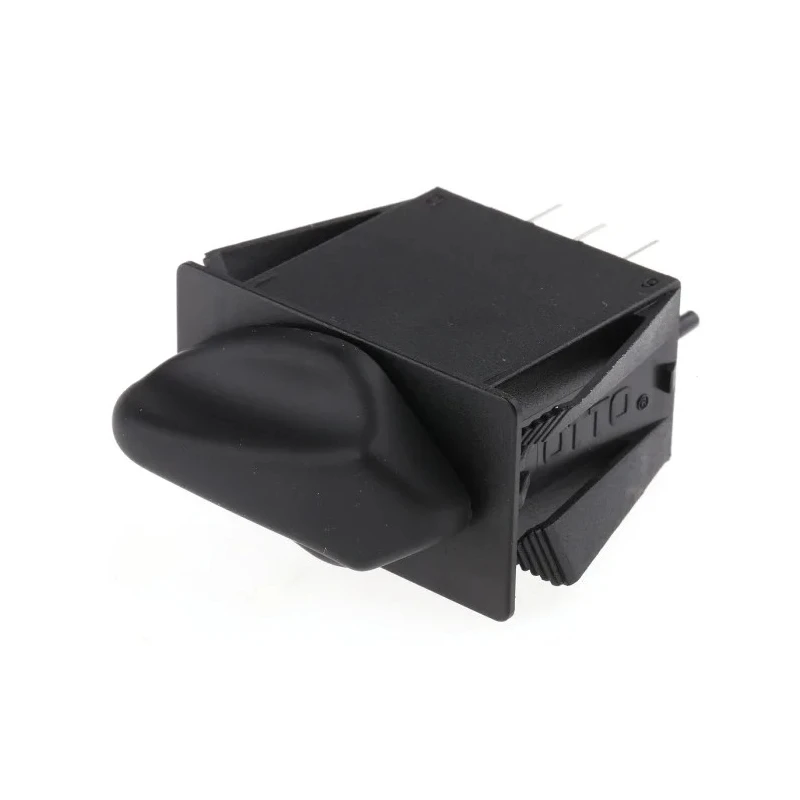

Otto 3 Position DPDT Rotary Switch 20A, Maintained Momentary, Panel Mount R2AB4455NNNN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Otto |
| Height | 58.67mm |
| Model | R2AB4455NNNN |
| Depth | 1.68mm |
| IP Rating | IP68S |
| Width | 1.68mm |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Series | R2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Number of Positions | 3 |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Tab |
| Maximum dc Voltage | 28V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Switch Operation | Maintained, Momentary |
| Actuator Colour | Black |
| Switch Contact Current | 20A |
| Mechanical Life | 100000Cycles |
| Maximum AC Voltage | 110V ac |
Key Features
- The switch features a thermoplastic housing with panel mount type.
- It supports up to three positions and two poles with off-on configuration.
- The switch is illuminated and sealed for IP68S rating.
- Operating temperature ranges from -40°C to 85°C, suitable for harsh environments.
- Terminal connections are via tab type with a black actuator color.
- Mechanical life expectancy is 100,000 cycles ensuring long durability.
- Electrical ratings include 20A contact current, 110V AC max voltage, and 28V DC max voltage.
- Black soft touch selector knob offers enhanced user interaction.
Product Description
Otto R2AB4455NNNN is a 3 Position DPDT rotary switch rated for 20A contact current, designed for panel mounting in demanding industrial applications.
Constructed with a durable thermoplastic housing, this rotary switch combines maintained and momentary switch operations, providing versatile on-off control across three positions and two poles. It supports a wide operating temperature range from -40°C to 85°C and is sealed to IP68S standards, ensuring excellent resistance against dust and water ingress.
The unit incorporates illumination features with up to three independent LED light positions that illuminate the lens on the rotary knob, enhancing visibility in low-light environments. Mechanical life is rated for 100,000 cycles, signifying high reliability and long service life for industrial, marine, heavy equipment, and instrumentation sectors.

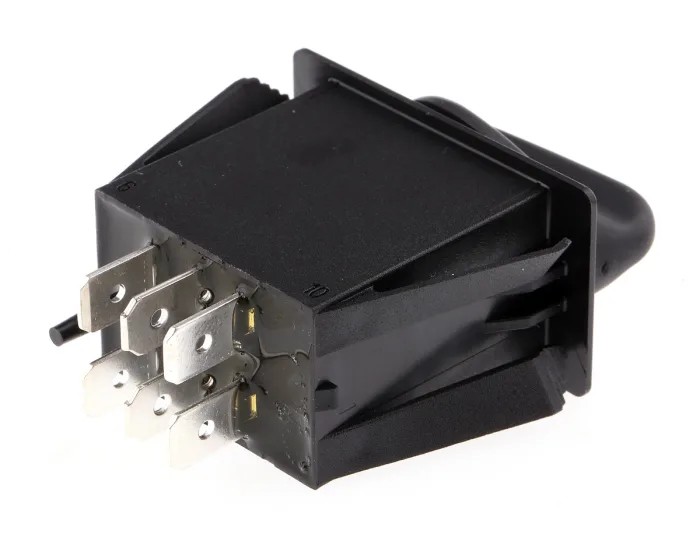

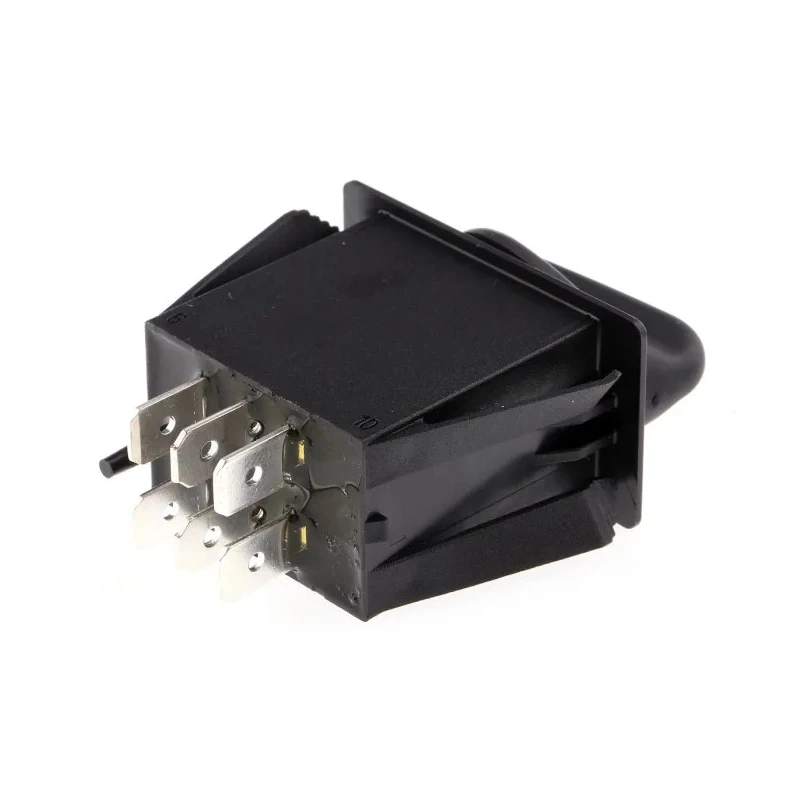

Electrical ratings include a maximum AC voltage of 110V and a maximum DC voltage of 28V, with 20A switch contact current. Connection is through .250 inch fast-on tab terminals and the actuator is colored black for clear operational indication. The switch body dimension is compact with a height of 58.67mm and a width and depth of 1.68mm each.
This model is designed as a direct replacement for rocker switches, offering enhanced visual indication and robust sealing, making it ideal for process control and heavy-duty industrial environments.
Otto R2 series rotary switches provide flexible, reliable switching solutions for a wide range of electrical and automation applications, combining durability with performance. The switch features a thermoplastic housing with panel mount type.
The switch supports up to three positions and two poles with off-on configuration. It is illuminated and sealed for IP68S rating. Operating temperature ranges from -40°C to 85°C for usage in harsh environments. Terminal type is tab, with mechanical life of 100,000 cycles.
Electrical ratings: 20A contact current, 110V AC maximum voltage, 28V DC maximum voltage. Black soft touch selector knob enhances user interaction. Explore a comprehensive range of Rotary Switches and components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact current rating of 20A, with a maximum voltage of 110V AC and 28V DC.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The switch is sealed to an IP68S rating, providing excellent resistance against dust and water ingress.
It features tab type terminals for connections, specifically .250 inch fast-on tab terminals.
This rotary switch supports three positions and two poles with an off-on configuration.
The mechanical life expectancy is rated for 100,000 cycles, indicating high reliability.
The switch is constructed with a thermoplastic housing, ensuring durability in various applications.
The switch has a height of 58.67mm and both a width and depth of 1.68mm.
It combines maintained and momentary switch operations, providing versatile control options.
Yes, due to its IP68S rating and wide operating temperature range, it is suitable for outdoor and harsh environments.
The actuator is colored black, which enhances visibility during operation.
This model complies with RoHS standards, ensuring it meets environmental regulations.
