Otto Hall Effect Sensor Dome Through Hole Current/Voltage Momentary IP64 -40°C to 85°C 24V DC 20mA
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Momentary, 85 °C, -40 °C, 24V dc, 24 V dc RS Stock No |
| Brand | Otto |
| Model | IP64 |
| IP Rating | IP64 |
| Output type | Current/Voltage |
| Maximum Operating Temperature | 85°C |
| Actuator Type | Dome |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Output Voltage | Open collector, Max. current 20mA, Max. off voltage 28V, Output saturation 400mV max. @ 20mA typical |
| Maximum Output Current | 20mA |
| Switch Operation | Momentary |
| Mechanical Life | 10000000Operations |
| Minimum Supply Voltage | 24V dc |
| Button material | Nylon |
| Hall Effect Switch Button Through Hole Momentary, -40 → +85°CBrand | Otto |
Key Features
- Operates at 24V DC with a maximum output current of 20mA.
- Features a dome actuator type with momentary switch operation and mechanical detent.
- Constructed with a nylon button material for durability.
- Provides an IP64 rating, ensuring protection against dust and water splashes.
- Functions across a temperature range from -40°C to 85°C for industrial use.
- Incorporates reverse voltage protection up to -18V and an open collector output voltage.
- Designed for applications including material handling equipment, loaders, lift trucks, and earth moving machinery.
- Long mechanical life rated at 10 million operations for extended reliability.
Product Description

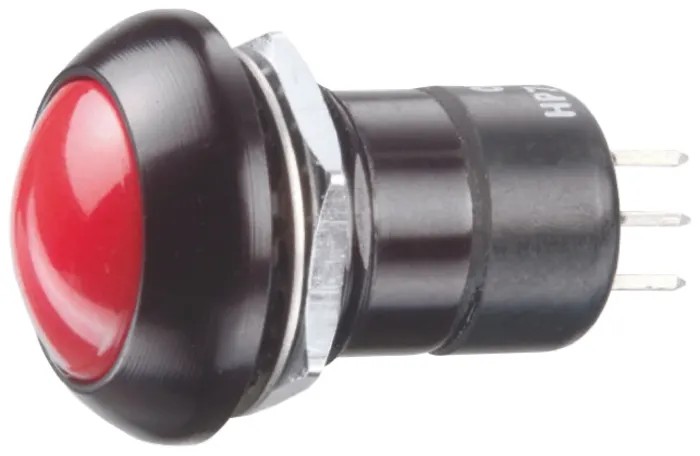

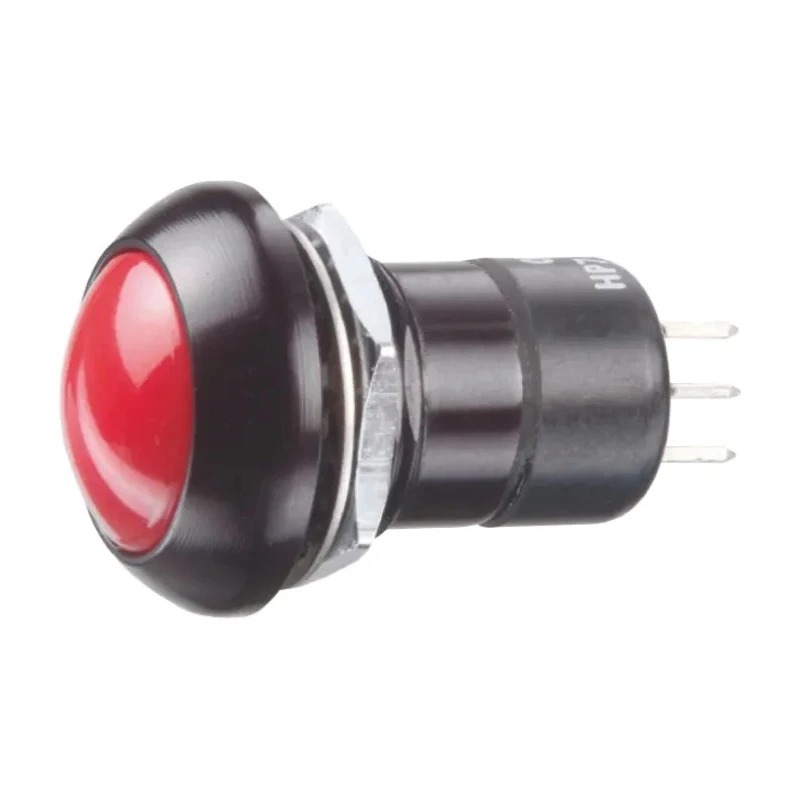

Otto HP7-DF23321 Hall Effect Sensor is a dome through-hole momentary switch utilizing advanced Hall Effect sensing technology to provide contactless switching and enhanced durability. Operating at 24V DC with a max current output of 20mA, this sensor is engineered to withstand harsh industrial environments.
The sensor features a robust nylon button and a dome actuator that offers tactile feedback through a mechanical detent mechanism. It is rated IP64, providing excellent protection against dust ingress and water splashes, making it ideal for demanding conditions.
With an operational temperature range from -40°C to 85°C, the HP7-DF23321 sensor is well-suited for use in material handling equipment, including loaders, lift trucks, buckets, and shovels used in earth-moving activities. The design includes reverse voltage protection of up to -18V, ensuring system reliability and safety.
The output is configured as an open collector with a maximum off voltage of 28V and output saturation at 400mV max. at 20mA typical current. The sensor delivers momentary switch operation, ideal for applications requiring precise jogging or continuous load positioning.
Its mechanical life is rated at ten million operations, supporting long-term industrial usage with minimal maintenance requirements. Operates at 24V DC with maximum 20mA output current. Momentary dome actuator switch type with mechanical detent.
IP64 rated for dust and water splash resistance. Durable nylon button construction. Temperature range from -40°C to 85°C ensures versatile application. Reverse voltage protection up to -18V enhances reliability. Open collector output with 28V max off voltage and 400mV saturation at 20mA.
Extensive mechanical life of 10 million operations for industrial endurance.
This Otto Hall Effect Sensor is an excellent choice for industrial, automation, and material handling equipment requiring precise, contactless, and reliable switching solutions. Explore more from the Hall Effect Sensor category for a range of sensor technologies suited for varied applications.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at 24V DC with a maximum output current of 20mA.
The sensor functions across a temperature range from -40°C to 85°C, making it suitable for harsh industrial environments.
It features an open collector output with a maximum off voltage of 28V and an output saturation of 400mV at a typical current of 20mA.
This model has an IP64 rating, providing protection against dust ingress and water splashes.
The mechanical life is rated at 10 million operations, supporting long-term industrial usage.
The button is constructed from nylon, which contributes to its durability.
It features a dome actuator type with momentary switch operation and mechanical detent.
It incorporates reverse voltage protection up to -18V, enhancing system reliability and safety.
The terminal type is through hole, allowing for easy installation in various applications.
It is designed for applications including material handling equipment, loaders, lift trucks, and earth-moving machinery.
The maximum output current is 20mA, suitable for various control applications.
The open collector output configuration allows for versatile interfacing with different control systems, enabling effective signal management.
