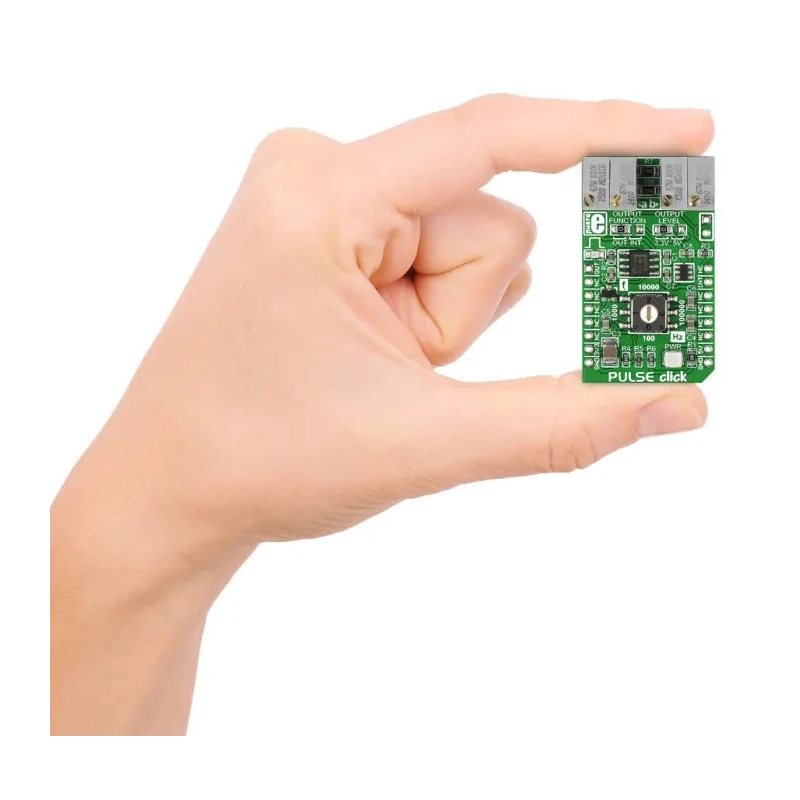

MikroElektronika Pulse Generator MikroBus Click Board for NE555 mikroBUS Socket MIKROE-2032

MikroElektronika MIKROE-2032 Pulse Generator MikroBus Click Board is an advanced clock and timer development tool designed for pulse generation with adjustable frequency ranges. It employs the NE555 Precision Timer IC, renowned for generating accurate time delays, making it ideal for embedded system and industrial control applications requiring precise timing signals.

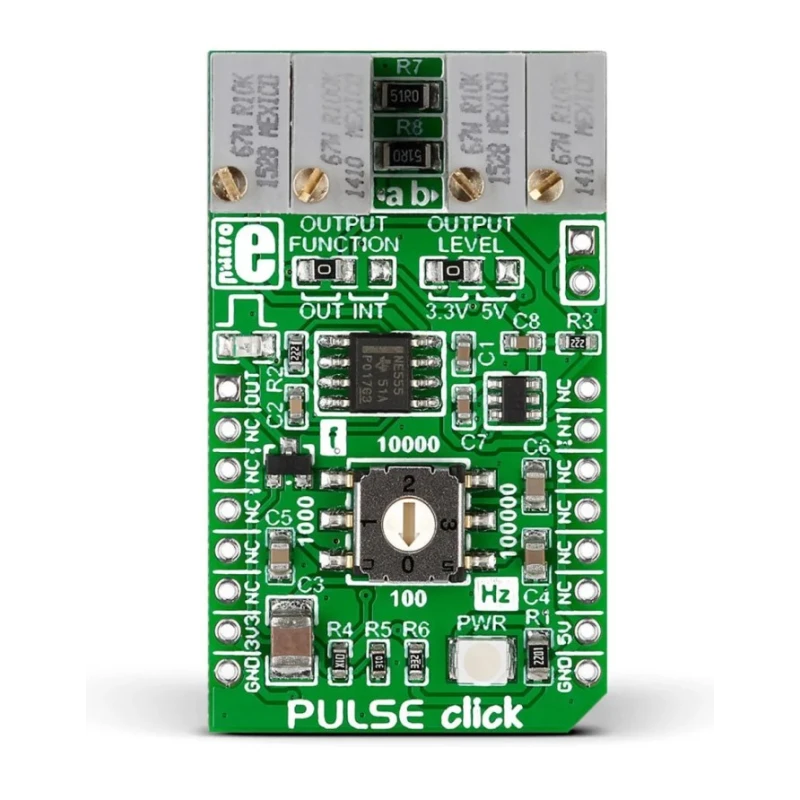

The board features a circular central switch which allows selection among four pulse frequency maximum ranges: up to 100 Hz, 1 kHz, 10 kHz, and 100 kHz, offering flexibility for various timing requirements. Multi-turn trimmer potentiometers on the board enable fine tuning of the desired output frequency to meet exact specifications.

A jumper on the mikroBUS socket facilitates the selection between output or interrupt functions, enhancing adaptability in signal handling. Additionally, a 3.3 V or 5 V output logic level can be selected with a jumper, assuring compatibility with a broad range of microcontrollers and development platforms.

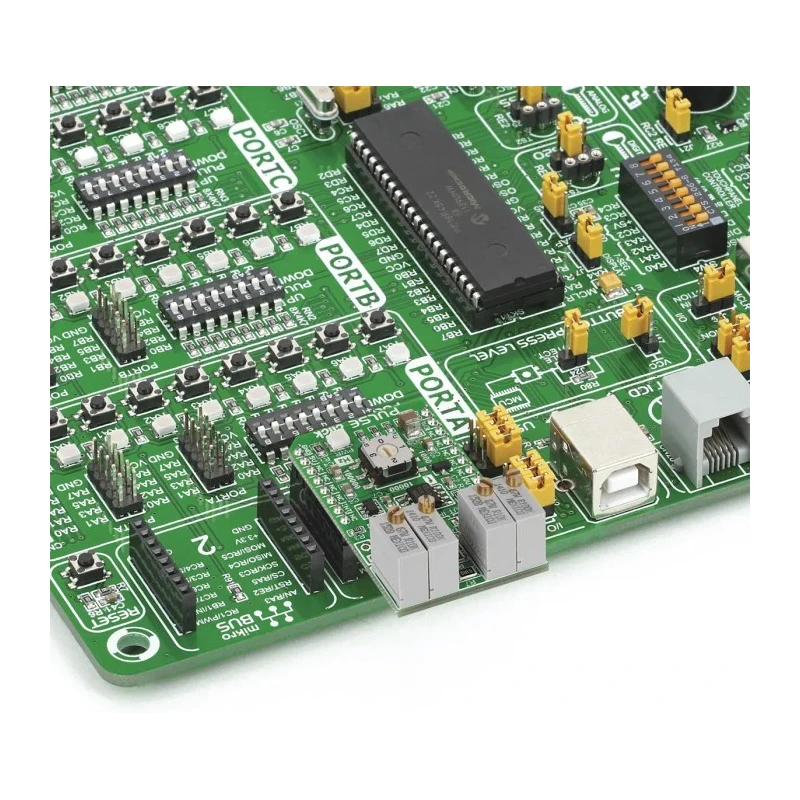

The compact form factor measuring 42.9 by 25.4 mm allows easy integration into devices equipped with the mikroBUS socket standard. The product is particularly suited for applications including electronics prototyping, control system development, educational kits, and laboratory use within Industrial, HVAC, manufacturing, and commercial electrical environments.

Four pulse frequency ranges selectable up to 100 kHz offer wide versatility. Multi-turn trimmer potentiometers ensure precise frequency tuning. Output or interrupt function easily selected with jumper. 3.3 V or 5 V output level selectable to match system logic levels.

Compact dimensions ideal for mikroBUS socket integration. Uses NE555 Precision Timer for accurate and stable pulse generation. Designed for embedded, laboratory, and development applications. Facilitates efficient time delay and pulse signal generation in projects.

Package contents include one MikroElektronika MIKROE-2032 Pulse Generator mikroBUS Click Board with header strips soldered for immediate use. This device boosts capability in clock and timer development tools category on EnvMart, supporting innovators and engineers in delivering high-quality timing functionalities.
