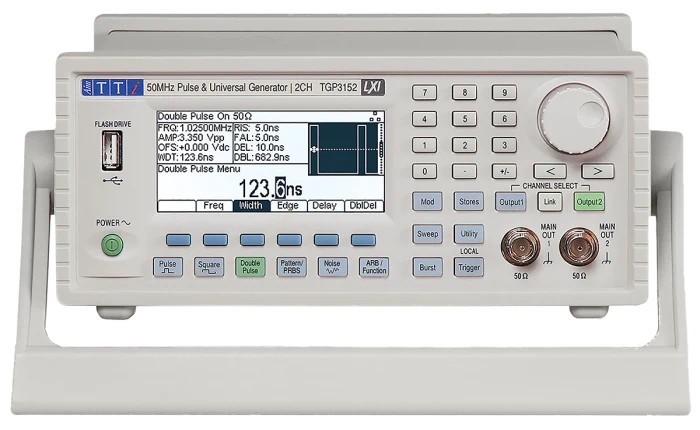

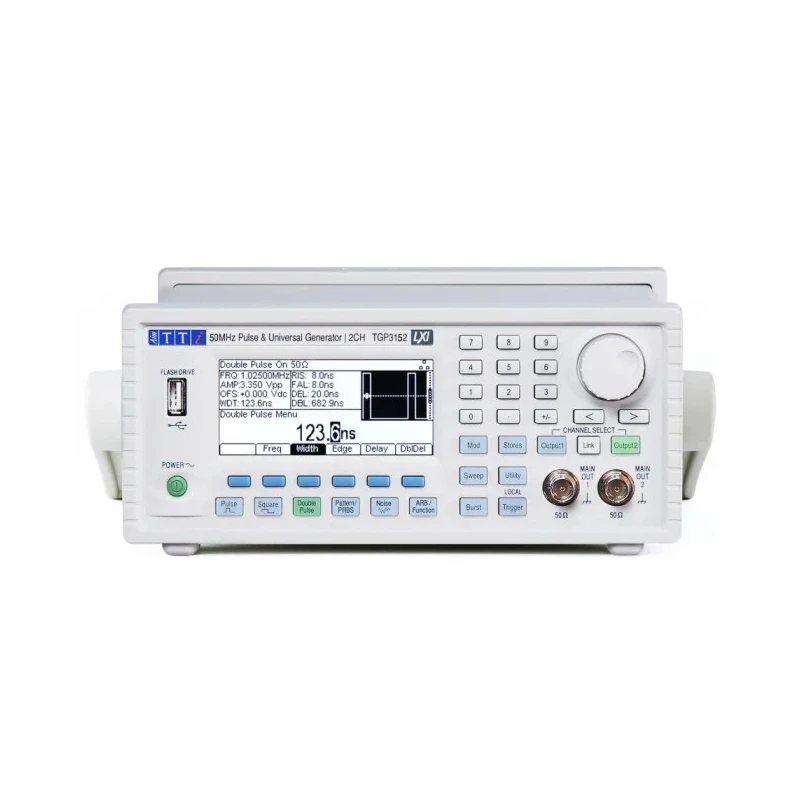

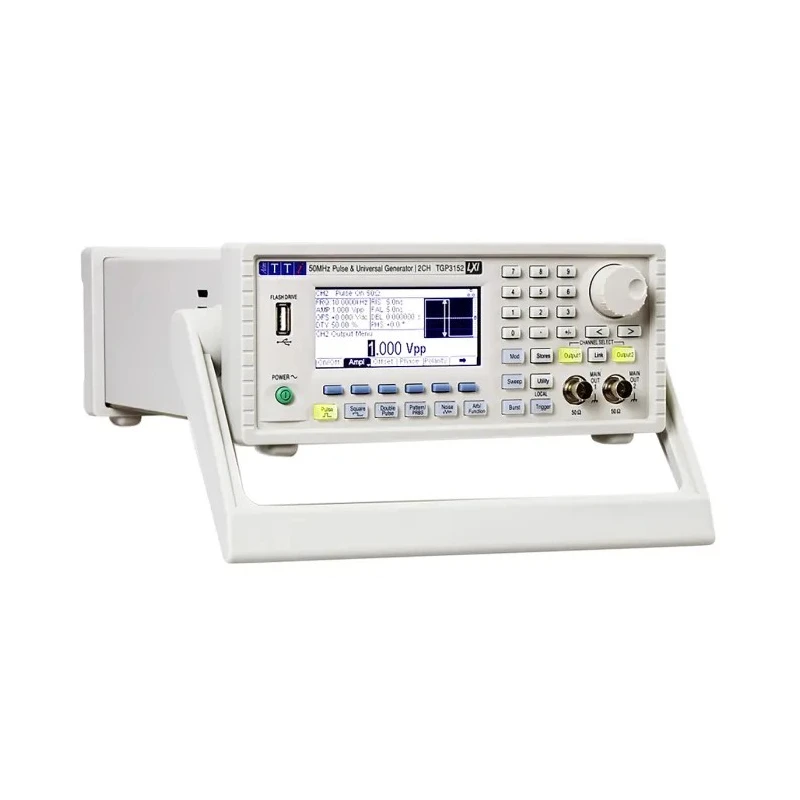

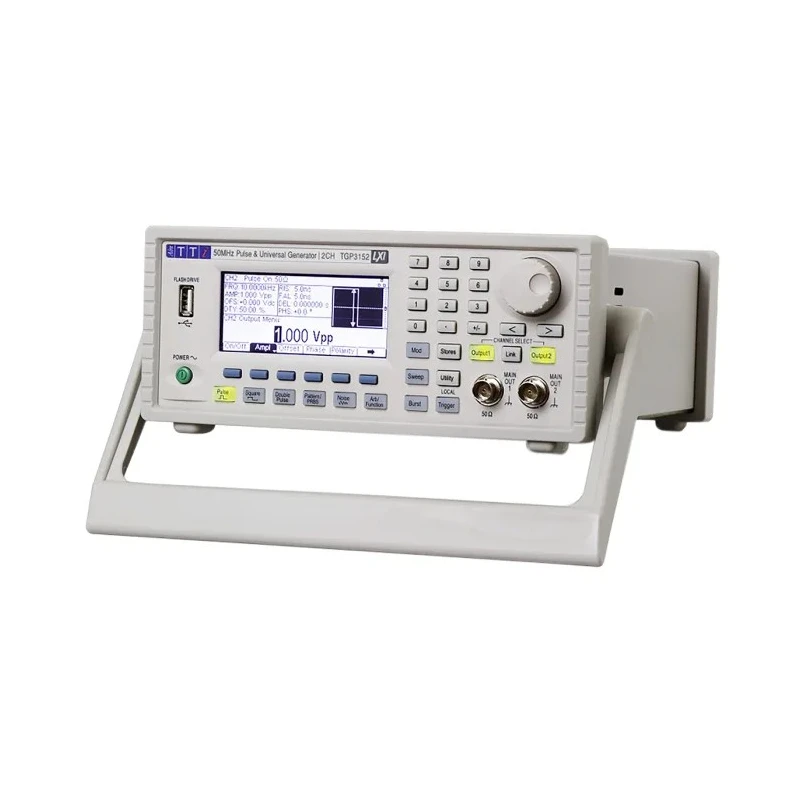

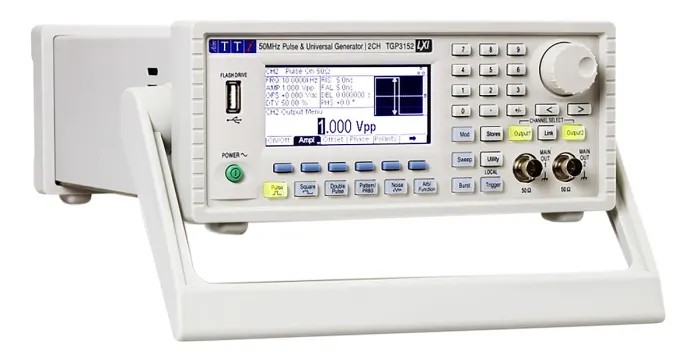

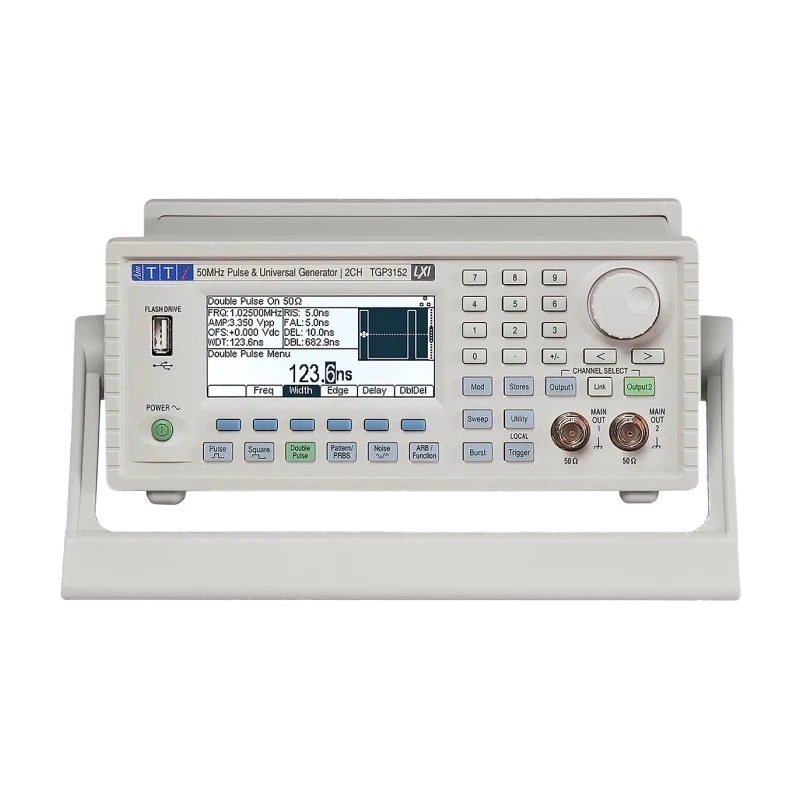

Aim-TTi Pulse Generator 1 MHz Min Frequency 50 MHz Max Frequency LXI USB GPIB Interface TGP3152

Aim-TTi TGP3152 Pulse Generator is a high-precision, dual-channel instrument designed for waveform generation and modulation spanning from 1 MHz minimum frequency to 50 MHz maximum frequency. It is ideal for demanding industrial, laboratory, and electronic test & measurement environments where control over pulse width, delay, and sequencing is critical.

The device supports a wide array of modes including sweep, function, double pulse, burst, and arbitrary waveform generation, allowing versatile signal output tailored to complex testing needs. Advanced internal modulation capabilities enable amplitude, frequency, phase modulation, PWM, and noise generation to simulate a broad spectrum of signal conditions.

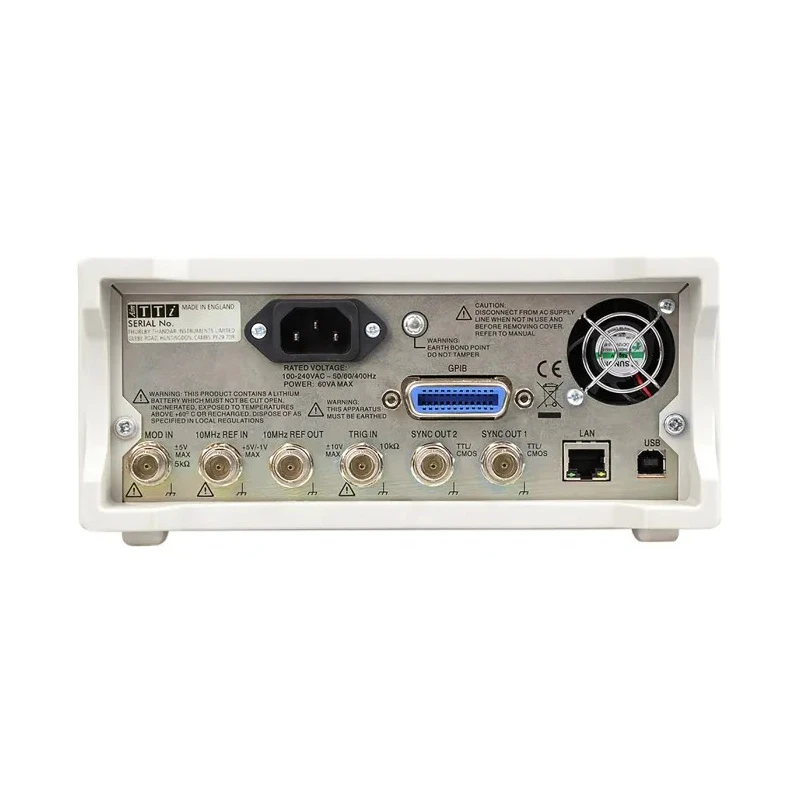

Connectivity options are extensive, providing LXI compliance, USB 2.0, remote LAN, GPIB interfaces enabling seamless integration into automated test systems and remote equipment control. Compact dimensions (295 mm length, 250 mm width, 97 mm height) and a weight of 3.2 kg make it well-suited for benchtop use without sacrificing performance.

Applications include stress testing designs with jitter and delay, clock frequency simulation with glitch-free parameter changes, data sequencing for serial data testing, op amp slew rate and asymmetrical characterization, and propagation delay analysis. It offers robust and reliable output with an input impedance of 10 kΩ and can operate between 5°C and 40°C ambient temperatures.

Offers precise control of pulse parameters including width, delay, and period. Supports multiple modes such as sweep, function, burst, and arbitrary waveforms. Equipped with dual-channel operation for independent or coupled outputs.

Includes internal modulation options like AM, FM, PM, PWM, and noise generation. Features a variety of interfaces including LXI, USB, Remote LAN, and GPIB for remote control. Designed for stress testing, clock simulation, data sequencing, and signal characterization applications.

Compact size with dimensions 295 mm length, 250 mm width, and 97 mm height for convenient lab use. Operational temperature range from 5°C to 40°C ensuring reliability in typical lab environments. Input impedance rated at 10 kΩ for stable connection to test circuits.

Robust unit weighing 3.2 kg suitable for industrial and laboratory settings.

This pulse generator is an indispensable device for professionals involved in electronics testing, research and development, manufacturing quality assurance, and calibration labs. Its broad waveform capabilities and reliable interfaces make it a valuable addition to signal generation equipment.
