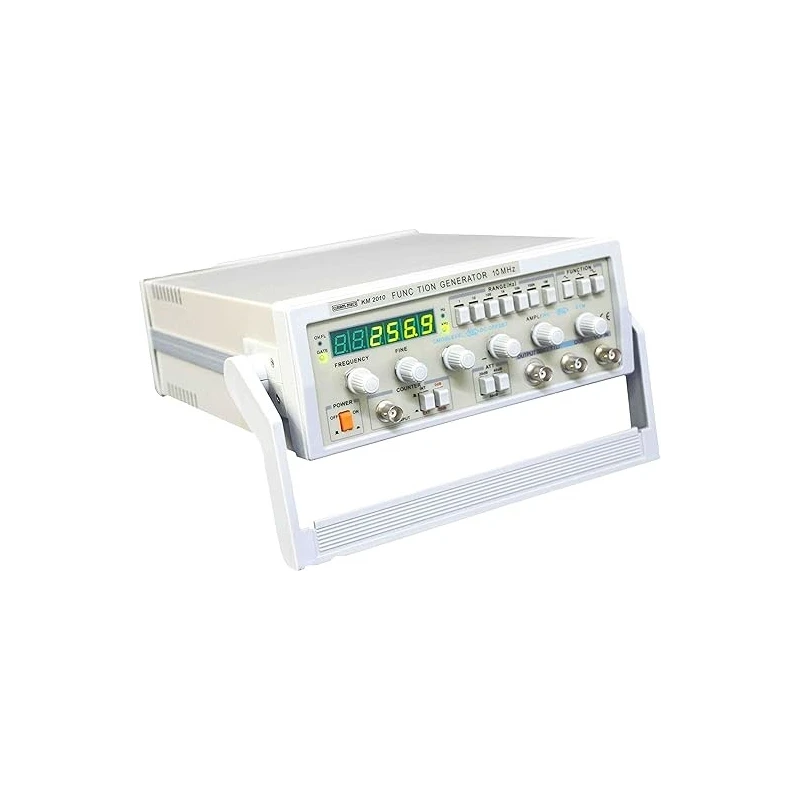

Kusam Meco Function Generator KM2010
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 2010 Function Generator |
| Accuracy | Less Than 0.003% ±1 Digit |
| Frequency range | 0.1Hz–5MHz |
| Symmetry Range | 90 |
| Brand | Kusam Meco |
| Power | 220V/110V ±10% / 50Hz/60Hz |
| Dimensions | 270×225×90 Mm |
| Function | Function Generator |
| Model | KM2010 |
| SENSITIVITY | 100mVrms |
| Weight | Approx 2.5 kg |
| Frequency response | 0.1Hz–100MHz ±0.5dB; 100kHz–5MHz ±1dB |
| Output Impedance | 50Ω ±10% |
| Amplitude | ≥50Vpp (Open Circuit) |
| Input Signal | DC–1kHz |
| Input Impedance | ≥1MΩ / 20F |
| Rising Time | Less Than 100ns |
| DC Voltage | 0~±10V Adjustable |
| Distortion | Less Than 1% (10Hz–100kHz) |
| Waveforms | Sine / Triangle / Square / Positive/Negative Pulse And Ramp |
| Rising Edge | Less Than 35ns |
| TTL/CMOS Output | TTL Low Less Than 0.4V / High Less Than 3.5V / CMOS 0–14V Variable |
| VCF Input Voltage | -5V~0V ±10 |
| Max Voltage Control | 1000 |
| Frequency Counter Range | 1Hz–10MHz |
| Max Input | 150V (AC+DC) |
| Input Attenuation | 20dB |
Key Features
- Function generator 0.1 Hz – 10 MHz with multiple waveforms
- Outputs sine, triangle, square, ramp and ± pulse signals
- Low distortion < 1% and flat response ± 0.5 dB up to 100 kHz
- Includes 1 Hz – 30 MHz frequency counter and sync output
- Ideal for laboratory and educational use
Product Description
The Kusam Meco KM2010 Function Generator delivers multiple waveform outputs such as sine, square, ramp, and triangle with a frequency range up to 10MHz. Built with precision components, it ensures low distortion and stable output. Equipped with an internal frequency counter and adjustable DC offset, it’s ideal for laboratory, research, and testing environments. Compact and easy to operate, it serves engineers, technicians, and educators performing signal simulation and circuit analysis tasks with high precision.
Available on EnvMart, these Function Generators produce sine, triangle, square, and ramp waveforms. Kusam Meco Instruments deliver precision and flexibility for circuit testing and research.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency range of the Kusam Meco KM2010 Function Generator is from 0.1 Hz to 5 MHz.
The Kusam Meco KM2010 can produce sine, triangle, square, positive and negative pulse, and ramp waveforms.
The accuracy of the Kusam Meco KM2010 Function Generator is less than 0.003% ±1 digit.
The maximum output voltage of the Kusam Meco KM2010 Function Generator is ≥50 Vpp (open circuit).
The Kusam Meco KM2010 requires a power supply of 220V/110V ±10% at 50Hz/60Hz.
The dimensions of the Kusam Meco KM2010 are 270×225×90 mm, and it weighs approximately 2.5 kg.
The distortion level of the Kusam Meco KM2010 is less than 1% for frequencies between 10 Hz and 100 kHz.
The input impedance of the Kusam Meco KM2010 is ≥1 MΩ / 20F.
Yes, the Kusam Meco KM2010 includes an internal frequency counter with a range of 1 Hz to 10 MHz.
The rising time for the Kusam Meco KM2010 Function Generator is less than 100 ns.
The output impedance of the Kusam Meco KM2010 Function Generator is 50Ω ±10%.
The maximum input voltage for the Kusam Meco KM2010 is 150V (AC+DC).
