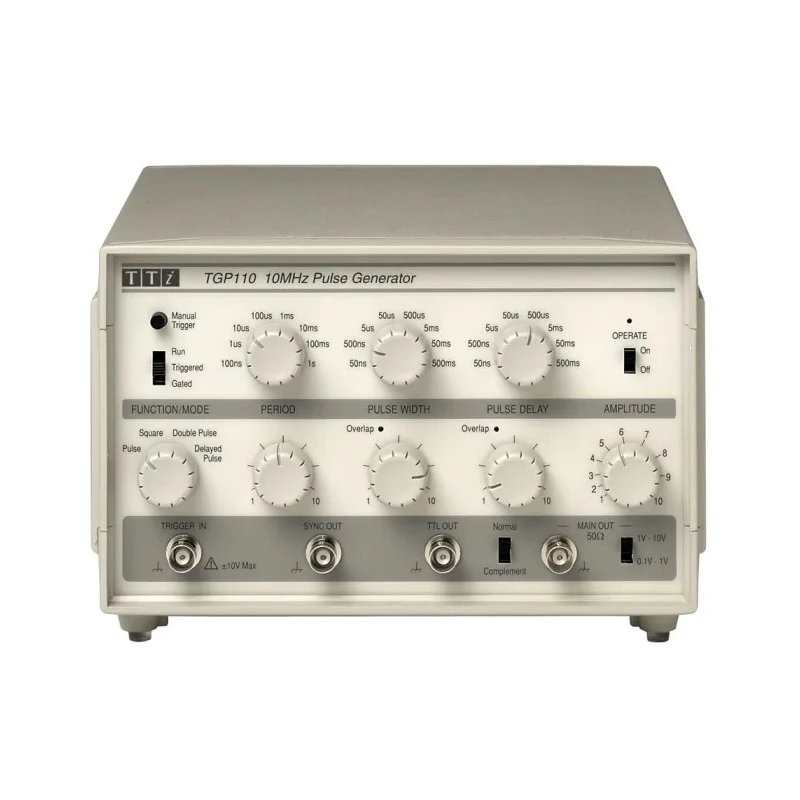

Aim-TTi Pulse Generator 0.1 Hz min to 10 MHz max Frequency, Adjustable Output Amplitude, GPIB LAN USB Interface TGP110

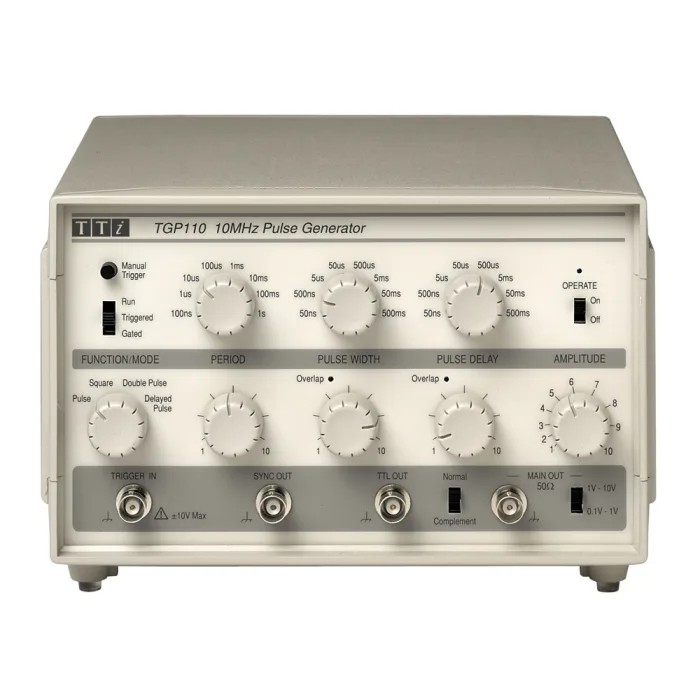

Aim-TTi TGP110 Pulse Generator is a high-performance instrument designed for precision pulse generation with a frequency range from 0.1 Hz minimum up to 10 MHz maximum. This pulse generator features an adjustable output amplitude and supports multiple pulse modes such as delayed, double, normal, run, square, and triggered, allowing for flexible waveform generation to meet diverse testing needs.

With a jitter of only 0.1% and fast rise and fall times of 15 ns, the TGP110 ensures high accuracy and reliability in pulse timing, making it ideal for precise timing control in electronic systems.

The unit provides a 10 kΩ input impedance and supports popular connectivity interfaces including GPIB, LAN, and USB, facilitating integration into automated test environments. Operating efficiently between 5°C and 40°C, it features dimensions of 230 mm length, 220 mm width, and 140 mm height, with a weight of 1.6 kg, making it suitable for laboratory and industrial bench setups.

Applications of the TGP110 pulse generator include generating trigger pulses with defined timing relationships and creating pulses with specific widths and delays, useful in electronics manufacturing, research, and development environments.

The device supports European and British plug types for versatile usage. Its construction and stable performance provide reliability across various test and measurement tasks in the electronics industry.

The device supports multiple pulse modes including delayed, double, normal, run, square, and triggered pulses. The pulse generator features high precision with a jitter of 0.1% and rise/fall times of 15 ns. It includes a 10 kΩ input impedance and supports GPIB, LAN, and USB interfaces for flexible connectivity.

The product operates reliably within 5°C to 40°C, housed in a compact design with dimensions 230x220x140 mm. Its robust construction, weighing 1.6 kg, ensures durability and stable operation in various industrial and laboratory settings.
