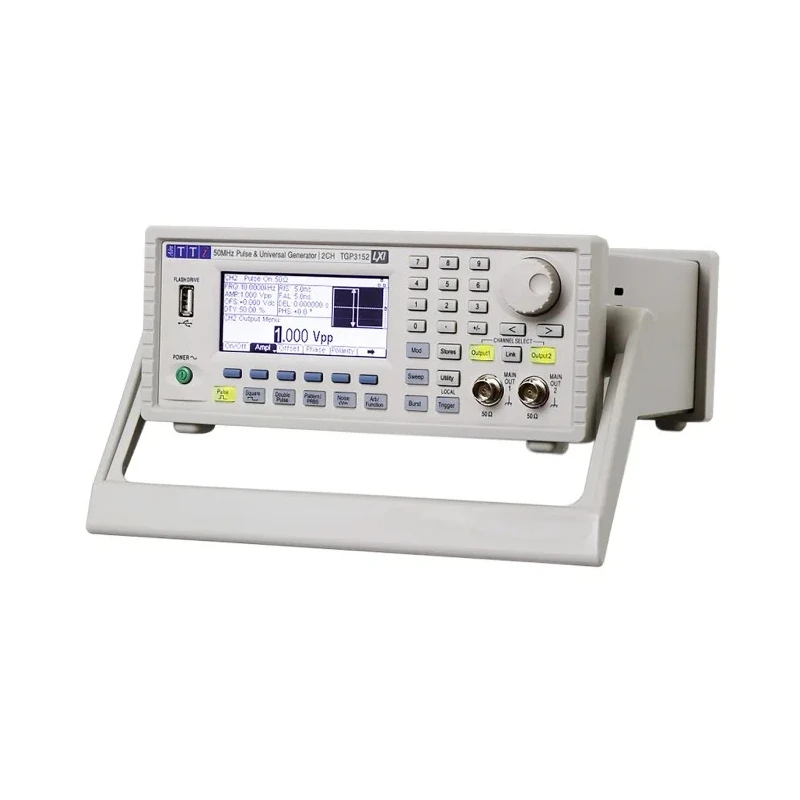

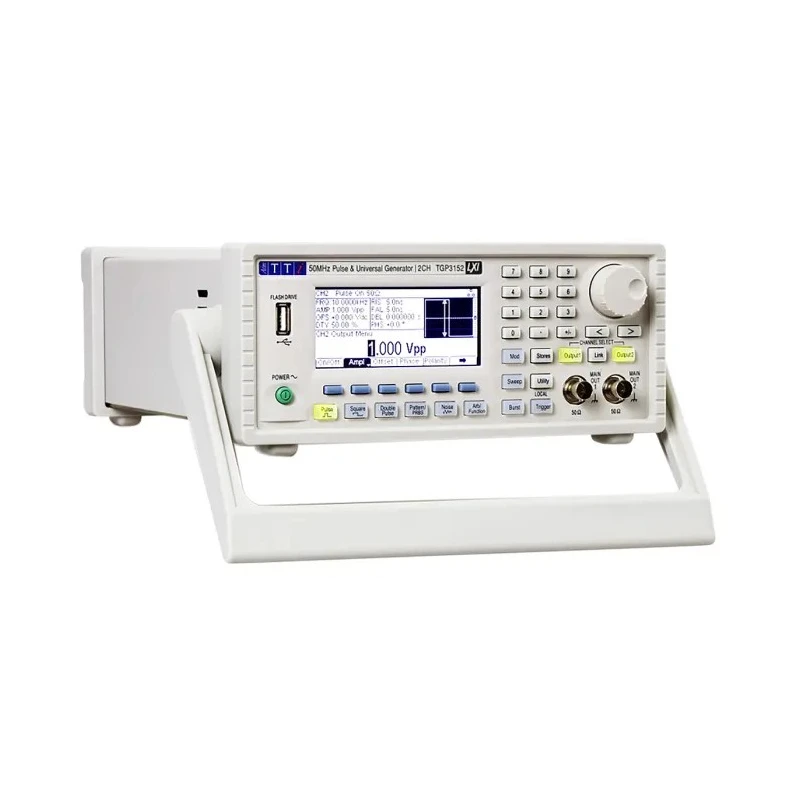

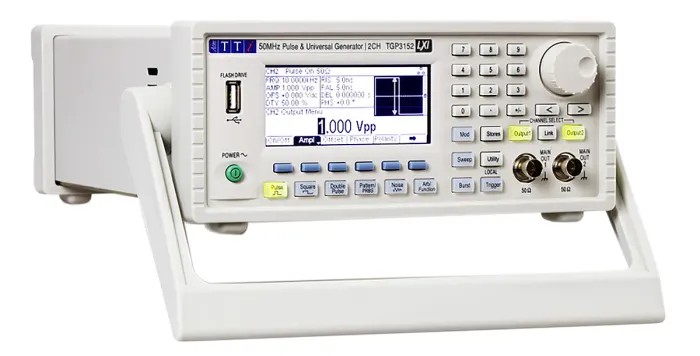

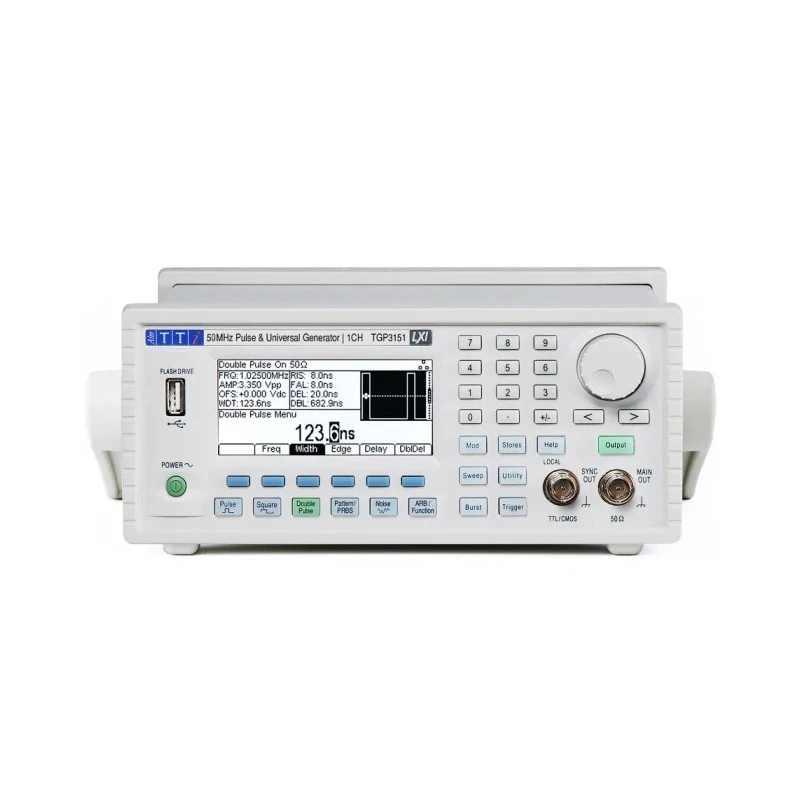

Aim-TTi Advanced Pulse Generator with Adjustable Output Amplitude, 1 MHz min, 50 MHz max, USB & LAN Interface TGP3151

Aim-TTi TGP3151 Pulse Generator is an advanced instrument designed for versatile signal generation in industrial, electronic, and motor manufacturing testing applications. This device supports a frequency range from 1 MHz minimum to 50 MHz maximum, making it suitable for precise waveform and pulse generation needs.

The pulse generator features adjustable output amplitude allowing fine control over signal strength and quality. It operates in multiple modes including double pulse, modulation, noise, pattern, pulse, square, sweep, triggered, arbitrary, and burst, thus supporting a broad spectrum of testing scenarios.

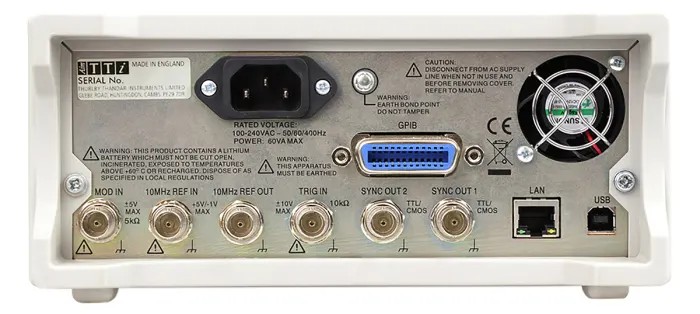

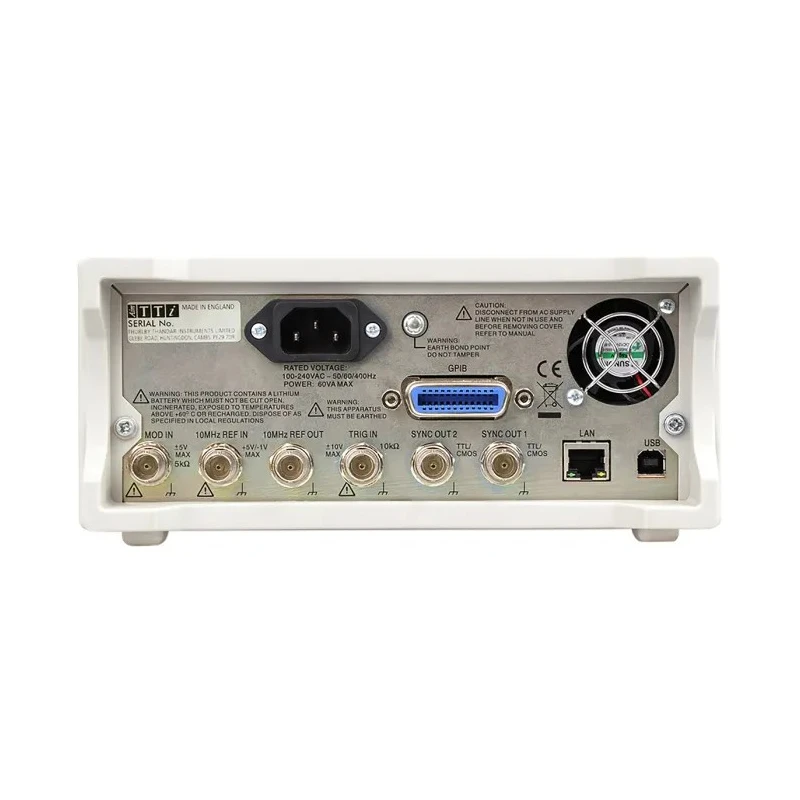

Equipped with modern interfaces such as USB 2.0, LXI, GPIB, LAN, and Remote control, the TGP3151 permits seamless integration into automated test setups and remote operation environments. Its compact design with dimensions 295 mm length, 250 mm width, and 97 mm height supports benchtop or rack mounting versatility.

Key features include jitter control up to 30%, fast rise and fall time, and minimum pulse widths as low as 10 nanoseconds. This unit is ideal for stress testing electronic designs requiring defined jitter and delay, clock frequency simulation with glitch-free parameter changes, data sequencing patterns for serial communications, asynchronous pulse signal conditioning, and precise Op Amp slew rate characterization.

The device operates reliably within an environmental temperature range of 5°C to 40°C and includes a 10 kΩ input impedance. Manufactured in the United Kingdom, the TGP3151 pulse generator stands as a robust and high-quality tool for electrical, electronics, laboratory, measurement, and process control industries.

Adjustable output amplitude for precise control of signal strength. Operates from 1 MHz to 50 MHz offering wide frequency range. Multiple operating modes including double pulse, burst, sweep, and arbitrary waveform generation.

Equipped with USB, GPIB, LXI, and LAN interfaces for remote operation capabilities. Compact size suitable for benchtop and rack mount applications. Reliable performance with jitter control and fast rise-fall time. Designed for stress testing, clock frequency simulation, and data sequencing applications.

Supports pulse widths from 10 ns minimum to nearly 1000 s maximum for flexible timing. Robust build with operating temperature range from 5°C to 40°C. Manufactured in the United Kingdom, ensuring high quality standards. Explore more advanced Pulse Generators and test equipment in the Electronics & Electricals category on EnvMart.
