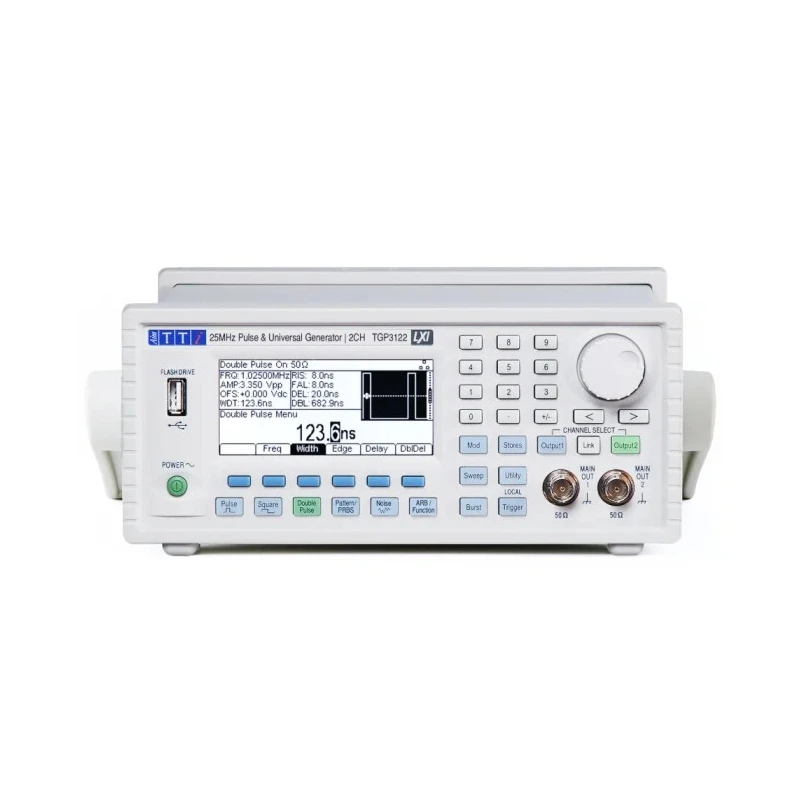

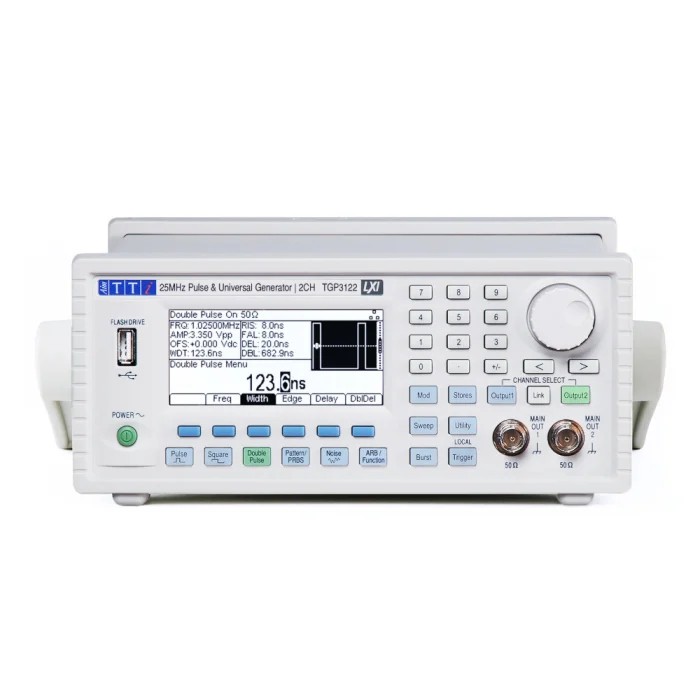

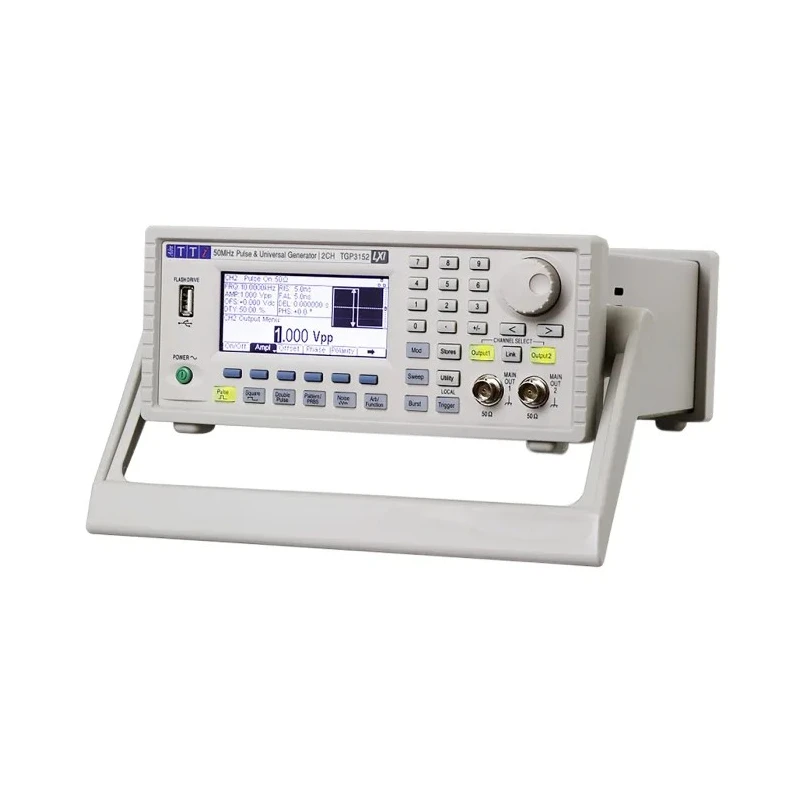

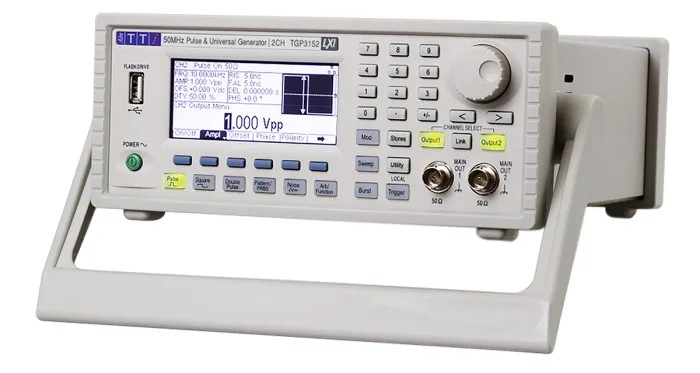

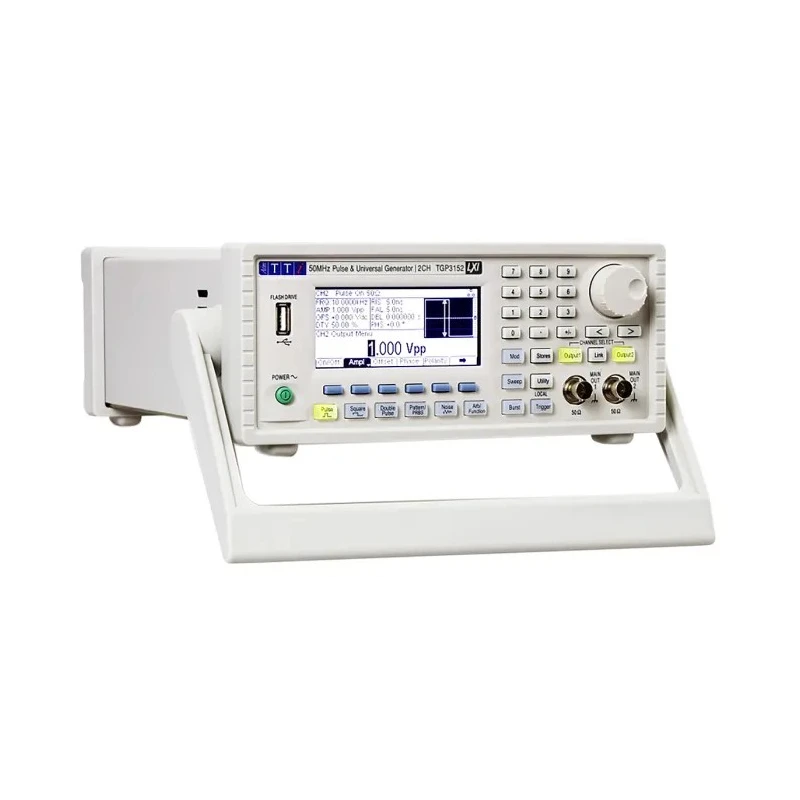

Aim-TTi Pulse Generator, 1 MHz Minimum Frequency, 50 MHz Maximum Frequency, Adjustable Amplitude, 3.2 kg, United TGP3122

Aim-TTi TGP3122 Pulse Generator is a precision instrument designed for generating pulses with minimum frequency of 1 MHz and maximum frequency of 50 MHz. It features an adjustable output amplitude and supports a variety of modes including Triggered, Arbitrary, Burst, Sweep, Double Pulse, Function, Modulation, Square, Pattern, Policy Based Routes, Pulse, and Noise. This device is engineered for high reliability and performance in electronic testing and waveform generation applications.

The Pulse Generator offers jitter control at 30% and rise-fall times of up to 799.99s, ensuring smooth signal transitions. It includes advanced double pulse capabilities allowing two identical pulses per cycle with adjustable delay. The compact design has physical dimensions of 295 mm (length), 250 mm (width), and 97 mm (height), weighing approximately 3.2 kg, making it practical for benchtop use.

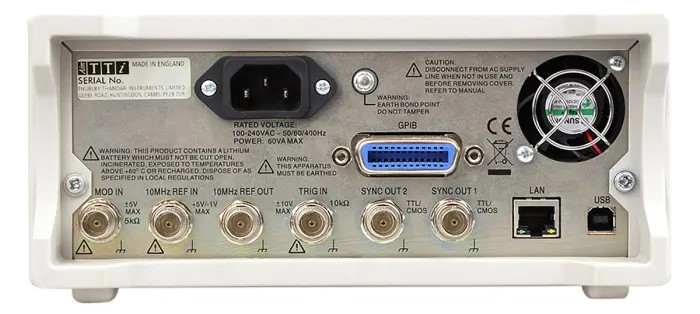

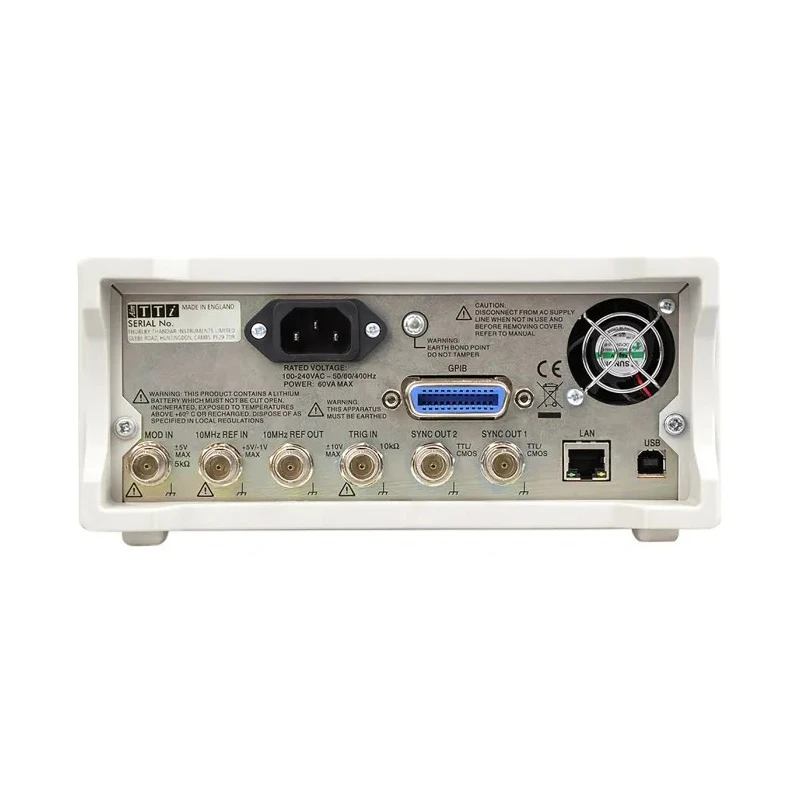

Interfaces include LAN, USB 2.0, Remote, LXI, GPIB, providing flexible connectivity options for integration with testing setups. Operating temperature ranges between 5°C and 40°C, suitable for laboratory and industrial environments. The device’s input impedance is 10 kΩ, enhancing compatibility with diverse electronic circuits.

This pulse generator is extensively used in stress testing and signal characterization within electronic design cycles. It is particularly useful for simulating clock frequencies, generating custom data patterns, and conditioning pulse signals for communications and electronic equipment testing.

Supports precise amplitude control reflecting output waveform requirements. Enables generation of custom pulse patterns tailored to specific testing needs. Compatible with common LabVIEW software aiding user-friendly operation and remote control.

Reliable low jitter operation ensures stable timing for critical testing applications. Multiple modulation options allow adjustment of amplitude, frequency, and phase. Compact and robust for laboratory, industrial, and manufacturing testing environments.

This Aim-TTi Pulse Generator is manufactured in the United Kingdom and is ideal for professionals requiring advanced pulse generation capabilities. Explore more precision instruments and pulse generation solutions at EnvMart.
