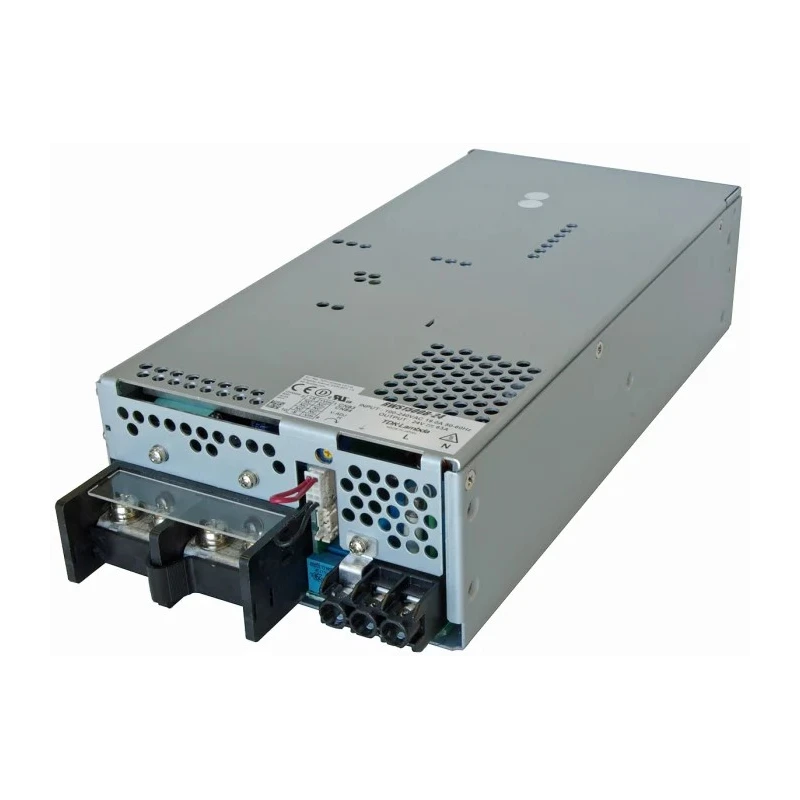

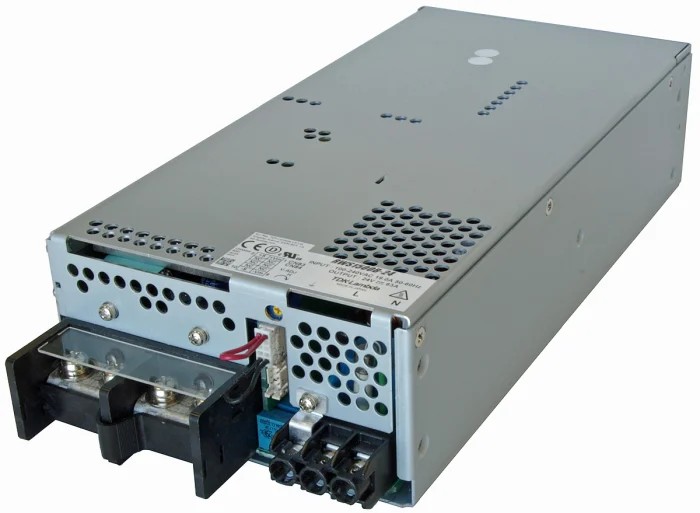

TDK-Lambda Switching Power Supply 48V dc 1.5kW Panel Mount RWS1500B-48

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda Switching Power Supply 48V dc 1.5kW Panel Mount RWS1500B-48

Name: TDK-Lambda Switching Power Supply 48V dc 1.5kW Panel Mount RWS1500B-48
Brand: TDK-Lambda
SKU: 207598
Price: 1086.98 USD
Availability: InStock



Category Switching Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	India
Brand	TDK-Lambda
Power	1.5kW
Efficiency	88%
Length	261mm
Model	RWS1500B-48
Depth	63mm
Gross Weight	3kg
Width	63mm
Mount Type	Panel
Series	RWS1500B
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	340, 265V dc
Maximum Output Voltage	48V dc
SMPS Output Current	32A
Minimum Input Voltage	265V ac
Conducted and radiated EMI	EN55011 / EN55022-B, FCC Class B, VCCI-B

Key Features

Supports a maximum output voltage of 48V DC and output current of 32A.
Designed for panel mounting with compact dimensions of 261mm length, 63mm width, and 63mm depth.
Operates efficiently with 88% efficiency and supports universal AC input voltage range from 85 V to 265 V AC.
Built for industrial applications with operating temperatures between -20°C to 60°C and compliance with CE and multiple EMI standards.
Suitable for industrial automation, broadcast, test and measurement, and LED signage applications.

Product Description

TDK-Lambda RWS1500B-48 is a high-performance switching power supply delivering a single output of 48V DC at 1.5kW power rating. Its robust panel-mount form factor with compact dimensions (261mm length, 63mm width, and 63mm depth) facilitates easy installation in diversified industrial environments.

This power supply features universal AC input voltage compatibility ranging from 85 V to 265 V AC and a maximum input voltage of 340 V DC, making it suitable for a wide range of input sources. It maintains operational stability within temperature limits of -20°C to 60°C, supporting reliable performance in demanding conditions.

Designed with efficiency and compliance in mind, the RWS1500B-48 achieves an 88% efficiency rating and meets stringent EMI and immunity standards such as CE, EN 55011, EN 55022-B, FCC Class B, IEC/UL/CSA/EN 62368-1, and VCCI-B. This ensures minimal interference and enhances system integrity.

The power supply is ideal for applications in industrial automation, broadcast equipment, test and measurement instruments, and LED signage and displays, where reliable DC power is essential.

Maximum output voltage of 48V DC with 32A output current. Panel mount type with compact size for easy integration. Universal AC input voltage 85 to 265 V AC, with a maximum input voltage of 340 V DC. High efficiency of 88% reducing operational costs.

Wide operating temperature range from -20°C to 60°C for versatile use. Complies with multiple international standards for EMI and immunity. Robust design suitable for industrial and automation applications.

Settle for reliable power conversion by choosing the TDK-Lambda RWS1500B-48 switching power supply. Explore more power supplies and related products at EnvMart for industrial and electronic component requirements.
