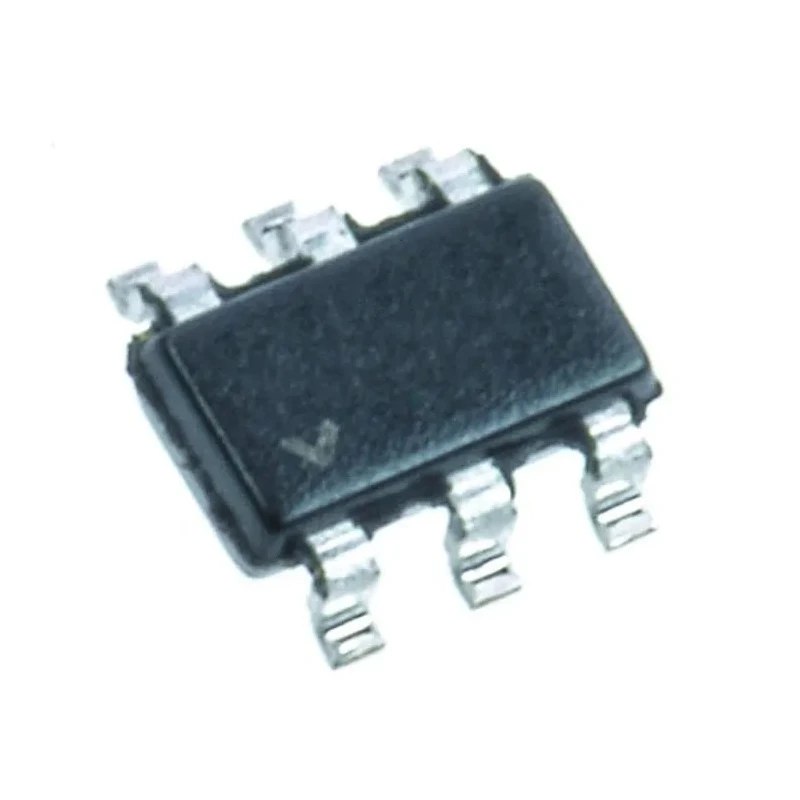

STMicroelectronics 2-Element Uni-Directional TVS Diode Array, 6-Pin SOT-23 USBLC6-2SC6Y
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | USBLC6-2SC6Y |
| Width | 1.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ethernet Port | 10/100Mbps |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 17V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.1V |
| Maximum Reverse Stand-off Voltage Vwm | 5.2V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 150nA |
| USB 2.0 port | Up to 480Mbps (High Speed) |
Key Features
- Features complex diode array configuration suitable for transient voltage suppression.
- Uni-directional design with minimum breakdown voltage of 6.1 volts ensures precise clamping.
- Compact SOT-23 surface-mount package with 6 pins allows easy PCB integration.
- Operation range supports temperatures from -40°C to 150°C for automotive-grade applications.
- Capable of handling maximum peak pulse current up to 5 amperes with low leakage current of 150 nanoamps.
- Complies with automotive standard AEC-Q101 for quality and reliability.
- Provides ESD protection compliant with ISO 10605 and ISO 7637-3 for USB and Ethernet ports.
- Ideal for USB 2.0 high-speed connections up to 480 Mbps and Ethernet 10/100 Mbps transmission lines.
Product Description
STMicroelectronics USBLC6-2SC6Y 2-Element Uni-Directional TVS Diode Array in a compact 6-Pin SOT-23 package offers high-performance transient voltage surge protection tailored for sensitive automotive and electronic communication circuits.
This diode array is designed specifically to protect automotive serial communication lines against surges defined in ISO 7637-3, as well as electrostatic discharges in compliance with ISO 10605. It meets the rigorous quality and reliability requirements of the automotive standard AEC-Q101.
Featuring a complex diode configuration, the device operates uni-directionally with a minimum breakdown voltage of 6.1 volts and clamps surge voltage at 17 volts. It supports a maximum reverse stand-off voltage of 5.2 volts and a peak pulse current capability of 5 amperes, ensuring robust protection for USB 2.0 and Ethernet data lines.
The surface-mount SOT-23 package has dimensions of 3.05mm length, 1.75mm width, and 1.3mm height, facilitating compact and efficient PCB assembly. It supports a broad operating temperature range from -40°C to 150°C, making it suitable for harsh automotive environments.
This device safeguards USB 2.0 ports enabling high-speed data transmission up to 480 Mbps and protects Ethernet lines supporting 10/100 Mbps speeds, preventing damage from voltage spikes and electrostatic discharges.
Complex diode array for transient voltage suppression. Automotive-grade AEC-Q101 qualified for enhanced reliability. Uni-directional operation optimized for signal lines protection. Broad temperature range: -40°C to 150°C ensures durability.
Low leakage current of 150nA minimizes power loss. Compact 6-Pin SOT-23 package for space-saving PCB layout. Supports USB 2.0 and Ethernet communications. ISO 10605 and ISO 7637-3 compliant ESD and surge protection.
This TVS diode array is ideal for automotive, industrial, and communication electronics applications requiring reliable voltage transient protection. Browse more TVS Diode Arrays and semiconductor components available on EnvMart to complete your circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage is 6.1 volts, ensuring effective clamping during transient events.
It can handle a maximum peak pulse current of 5 amperes, providing robust protection against voltage surges.
This model operates within a temperature range of -40°C to 150°C, making it suitable for harsh automotive environments.
It comes in a compact SOT-23 surface-mount package with dimensions of 3.05mm length, 1.75mm width, and 1.3mm height.
It complies with automotive standard AEC-Q101 for quality and reliability, and provides ESD protection compliant with ISO 10605 and ISO 7637-3.
The clamping voltage is 17 volts, which helps to protect sensitive components from voltage spikes.
It supports USB 2.0 high-speed connections up to 480 Mbps and Ethernet transmission lines at 10/100 Mbps.
The maximum reverse stand-off voltage is 5.2 volts, which is critical for ensuring safe operation in electronic circuits.
This model features a complex diode configuration with 2 elements per chip, enhancing its transient voltage suppression capabilities.
The maximum reverse leakage current is 150 nanoamps, which minimizes power loss in the circuit.
It is suitable for automotive, industrial, and communication electronics applications requiring reliable voltage transient protection.
The test current for this model is 1 mA, which is used to evaluate its performance under specified conditions.
