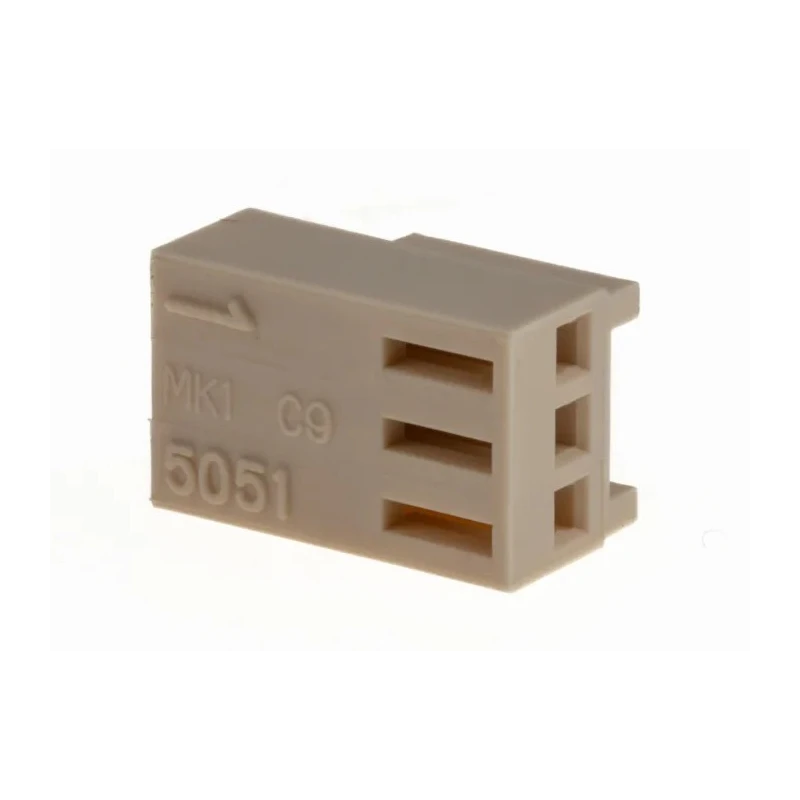

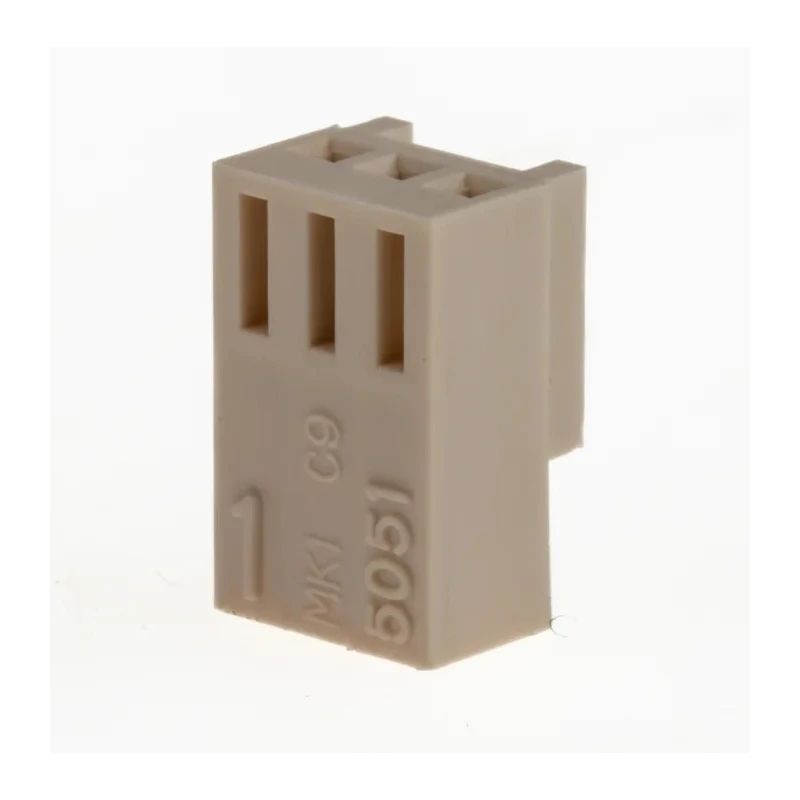

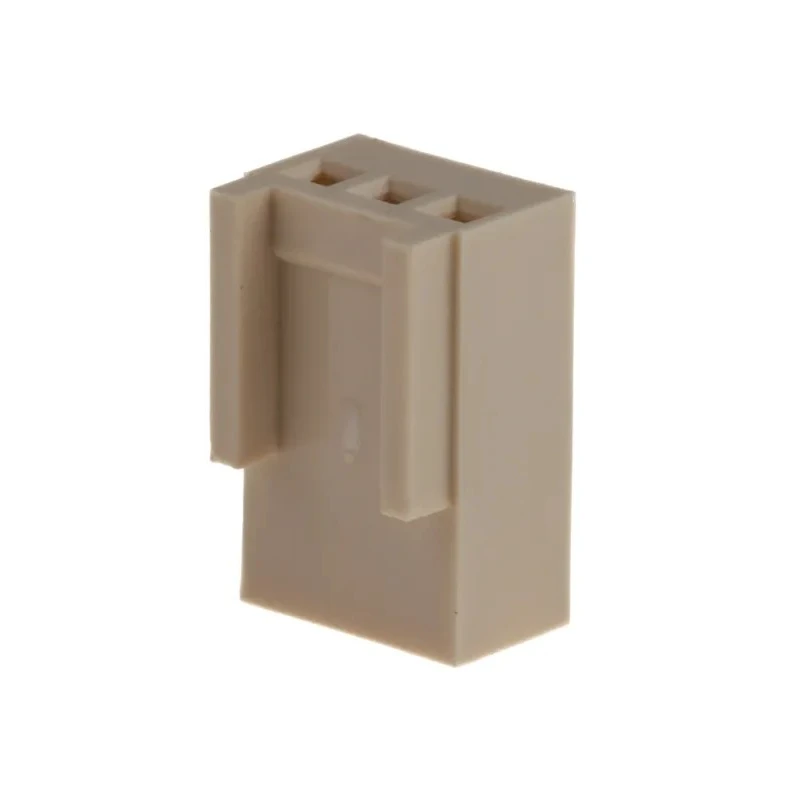

Molex KK Female Connector Housing, 2.5 mm Pitch, 3 Way, 1 Row Straight 22-01-1032

Molex 22-01-1032 KK Female Connector Housing is a high-quality electronic connector housing designed for reliable cable-to-printed circuit board (PCB) connections. Featuring a 2.5 mm pitch and 3 contact positions arranged in a single row, this straight connector housing allows easy attachment of pre-crimped terminals to PCBs.

The housing is molded from robust polyamide material, which offers excellent abrasion resistance and insulation protection to prevent electrical shocks. Its compact dimensions (8 mm length by 6.6 mm width by 12.7 mm depth) make it ideal for use in space-constrained electronic assemblies.

This product includes an integrated friction lock enhancing retention and ensuring secure mating with PCB headers. It is fully compatible with Molex 5045 series vertical headers and 5046 series right-angle headers, providing versatile PCB mounting options. The housing is suitable for use with 2759 Series terminals, facilitating reliable wire-to-board connections.

Designed for challenging environments, it supports operation over a wide temperature range from -40°C to +105°C, making it adaptable for industrial, manufacturing, networking, audio-visual, and security system applications.

Compact polyamide housing resists abrasion and electrical shock. 3-way, 1-row straight orientation for versatile wiring needs. Integrated friction lock secures connector mating on PCB. Compatible with Molex KK Wire-to-Board connectors and terminals.

Broad operating temperature range ensures performance in harsh conditions. Suitable for industrial, commercial, and consumer electronics.

This connector housing is essential for high-reliability wiring in electronics manufacturing and assembly. For further browsing, explore more Connector Housing and PCB connector products available at EnvMart.
