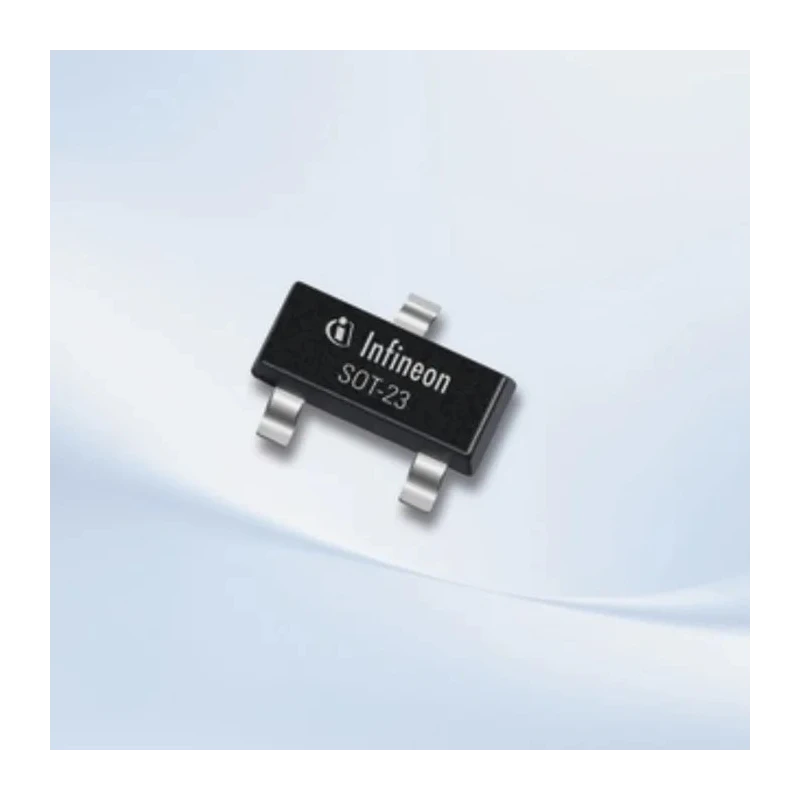

Infineon Hall Effect Sensor Unipolar Switch Surface Mount Open Drain 3G 4G 1.6mA 25mA 3 - 32V TLE49646MXTMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLE49646MXTMA1 |
| Output type | Open Drain |
| Maximum Operating Temperature | 107°C |
| Actuator Type | Unipolar switch |
| Minimum Operating Temperature | 40°C |
| Terminal type | Surface Mount |
| Maximum Output Current | 25mA |
| Switch Operation | 3G, 4G |
| Maximum Supply Voltage | 32V dc |
| Minimum Supply Voltage | 3V dc |
| Supply Current | 1.6mA |
Key Features
- Designed for reliable magnetic threshold detection.
- Supports reverse polarity protection up to -18V.
- Provides overvoltage capability up to 42V without external resistor.
- Features overcurrent and overtemperature protection at the output.
- Active error compensation ensures stable sensor performance.
- Low jitter performance, typical 0.35 μs.
- Suitable for applications in automotive and industrial environments.
Product Description
Infineon TLE49646MXTMA1 Hall Effect Sensor offers precise unipolar switching functionality with a surface mount form factor and an open drain output. This sensor operates on a wide voltage range from 3V to 32V DC, designed for high reliability and performance in demanding conditions. With a supply current of 1.6mA and maximum output current of 25mA, it is suited for integration in compact PCBs as well as automotive and industrial electronic systems.
The sensor features robust reverse polarity protection to -18V, overvoltage tolerance up to 42V without requiring external resistors, and safeguarding against output overcurrent and overtemperature for enhanced system durability.
Designed for reliable magnetic threshold detection in electronic circuits. Reverse polarity protected, supporting up to -18V. Overvoltage withstand up to 42V, compliant for automotive and industrial use. Active error compensation maximizes signal integrity.
Provides low output jitter of approximately 0.35 μs. Suitable for surface mount PCB assembly operations. Stable performance across an extended temperature range: 40°C to 107°C.
Applications include automotive sensing, industrial automation, electronic circuit monitoring, and general purpose use where Hall effect switches are required. The sensor’s stability and safety features make it ideal for high-volume manufacturing and critical system integration.
This is a high-quality product engineered for environments where reliability, electromagnetic stability, and maintenance-free operation are required. Its compact surface mount package fits smoothly into modern electronic hardware.
Explore more sensors and Hall Effect switches from Infineon in the Hall Effect Sensors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 3V to 32V DC.
The maximum output current for this sensor is 25mA.
It features an open drain output type.
The supply current is 1.6mA.
It operates within a temperature range of -40°C to 107°C.
Yes, it supports reverse polarity protection up to -18V.
This sensor is suitable for automotive sensing, industrial automation, and electronic circuit monitoring.
It uses a unipolar switch actuator type.
The maximum supply voltage is 32V DC.
The sensor provides low output jitter of approximately 0.35 μs, ensuring stable signal integrity.
It has overvoltage capability up to 42V without requiring external resistors.
The terminal type is surface mount, suitable for PCB assembly.
