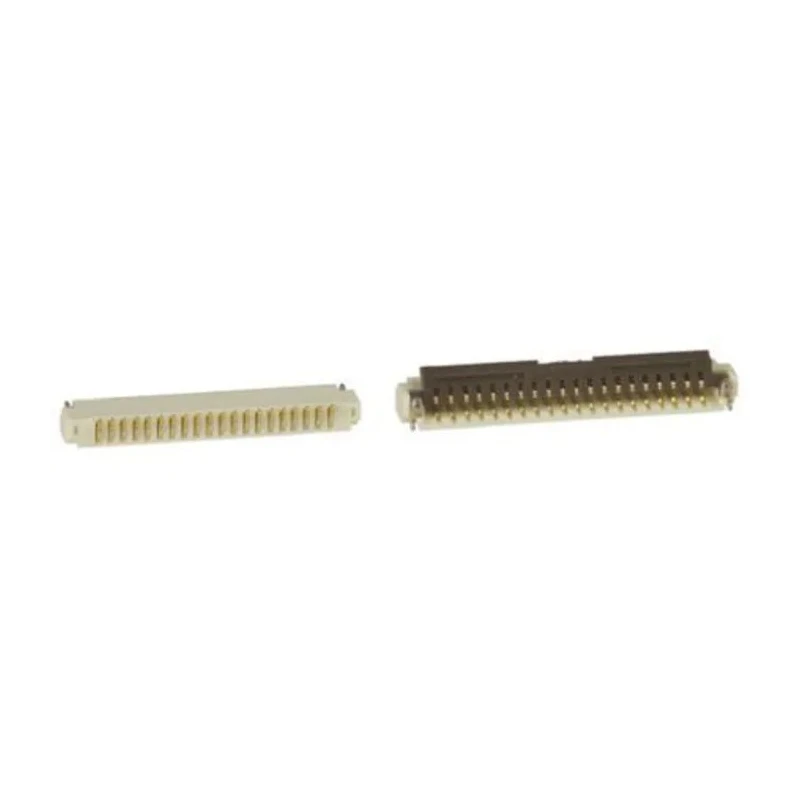

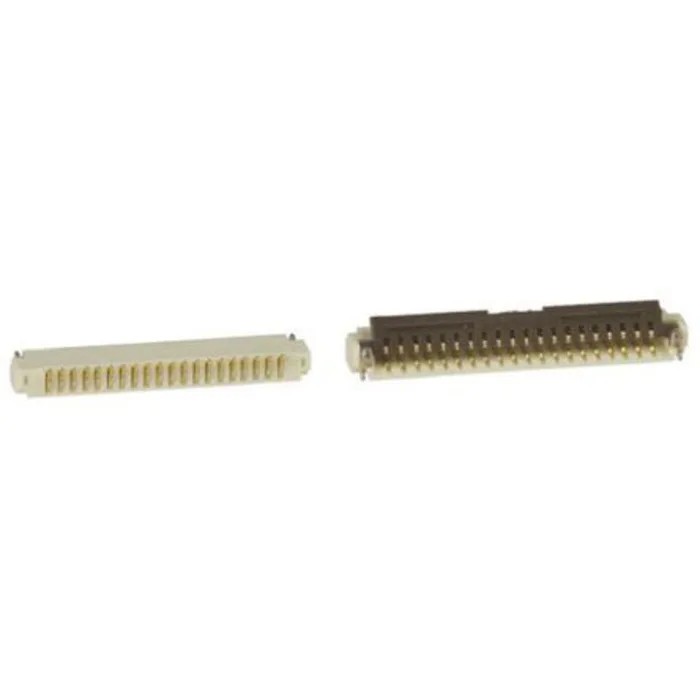

Hirose 0.5 mm Pitch 20 Way Right Angle Female FPC Connector, Solder FH33

Hirose FH33 0.5 mm Pitch 20 Way Right Angle Female FPC Connector FH33 is a high-performance, low profile ZIF (zero insertion force) connector built for surface mounting in compact electronics.

This connector series features a compact height of just 1.25 mm and a narrow 2.5 mm width that effectively conserves PCB space in miniaturized portable equipment and mobile devices.

The connector employs phosphor bronze contacts with gold plating to ensure excellent conductivity and corrosion resistance, rated at a voltage of 50V AC and current carrying capacity of 500mA, making it suitable for low power signal transmission.

Its innovative one-touch rotating actuator allows for easy and accurate insertion of flexible printed circuits (FPC/FFC) with a thickness of 0.3 mm, providing a tactile click feedback to confirm secure locking and retention.

The bottom contact position is designed so the contacts are not exposed, allowing for mounting over conductive traces safely. The robust polyamide housing enhances durability and reliability across a wide operating temperature range from -55°C to 85°C.

This right angle female connector with a single row of 20 contact points includes a locking mechanism preventing accidental disconnection, making it ideal for critical electronic applications.

Applications include integration in personal mobile devices, miniaturized portable equipment, and various electronic component assemblies requiring compact and reliable FPC connections.

Features a low profile of 1.25 mm height for compact PCB designs. Narrow width of 2.5 mm reduces PCB footprint significantly. One-touch rotating actuator allows easy insertion and secure retention of FPC/FFC cables. Tactile click confirms full closure and proper locking of the connector.

Accepts standard 0.3 mm thick flexible printed circuits. Made from durable polyamide housing material suitable for harsh environments. Operates reliably within temperature range from -55°C to 85°C. Right angle orientation for versatile PCB layout options.
