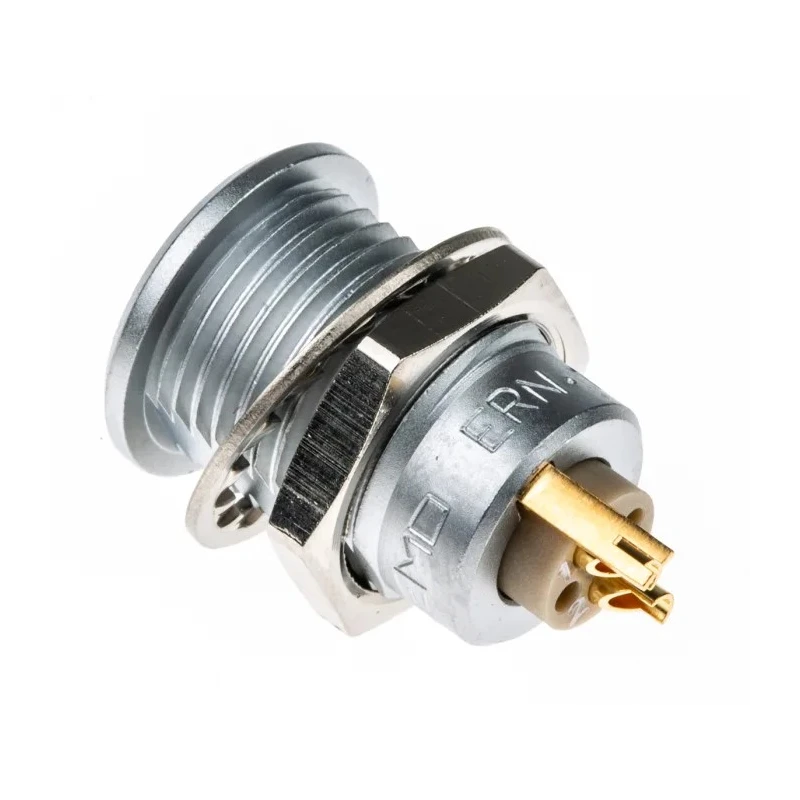

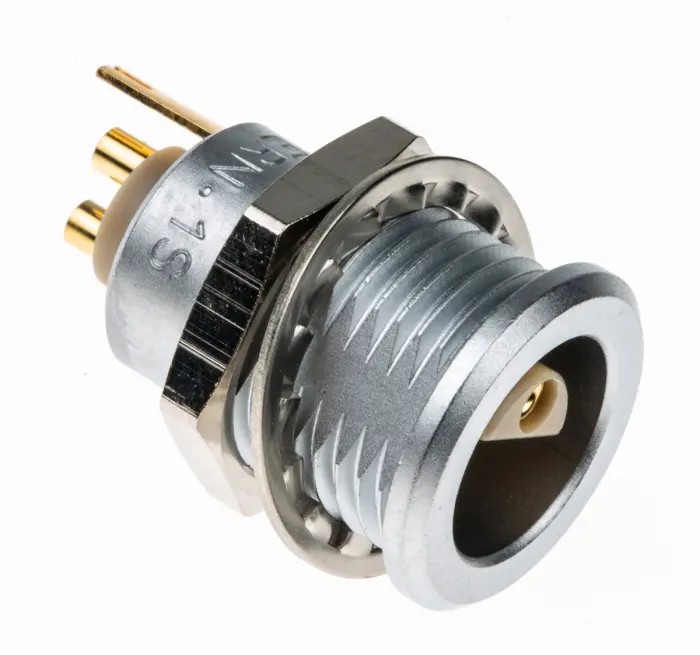

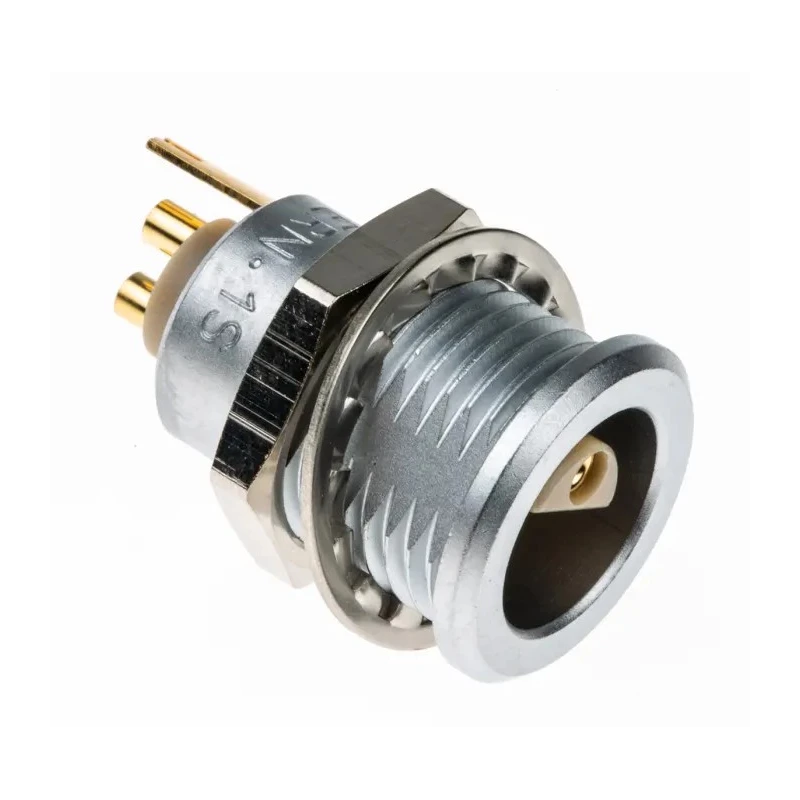

RS PRO Circular Connector, 2 Contacts, Panel Mount, 14 mm, Socket, Female, IP50, Solder, 15A ERN.1S.302.CLL

The Lemo ERN.1S.302.CLL Circular Connector offers a robust and high-precision solution for industrial panel-mount connectivity. Designed as a female socket with 2 contacts, this connector is built to support demanding environments where reliable, compact, and high-density connections are required. Its 14 mm shell size and IP50 ingress protection rating make it ideal for applications where dust resistance and secure connection are vital.

This connector features a straight-body orientation and is equipped with a solder termination, providing stable electrical contact and ease of installation. The model is engineered for up to 15A current and withstands voltages up to 1800V, making it suited for both signal and power transfer. Its gold-plated brass contacts ensure excellent conductivity and longevity, while the brass housing provides mechanical robustness and environmental durability.

With a secure push-pull latching system, the Lemo ERN.1S.302.CLL allows for rapid mating and unmating while ensuring the connector remains reliably engaged, even under conditions of vibration or accidental pulling. The connector’s precision construction includes hermaphroditic keying and a nickel-plated brass latch sleeve for added dependability.

This connector excels in applications such as audio/video signal routing, medical equipment, research instrumentation, and complex test and measurement systems. Its versatility is further enhanced by a wide operating temperature range from -55°C to 250°C, and a design that meets rigorous endurance, shock, and vibration standards. Shielding capabilities meet EMC requirements, and the push-pull system is tested for thousands of mating cycles to guarantee long operational life.

Additional technical features include solder-based terminal connections, a compact 1S series profile, and full compatibility with high-density panel layouts. The connector accommodates cable diameters between 1.3 mm and 8.7 mm and features 360° EMC shielding support. Its IP50 rating ensures durability for indoor industrial use but is not rated for full waterproof environments.

Typical applications for the Lemo ERN.1S.302.CLL include high-performance laboratory equipment, precision measurement instruments, audio and video systems, medical device connections, and research setups requiring stable, high-reliability interconnects. The connector’s construction allows it to perform reliably in demanding conditions where durability, conductive integrity, and secure mating are mission critical.
