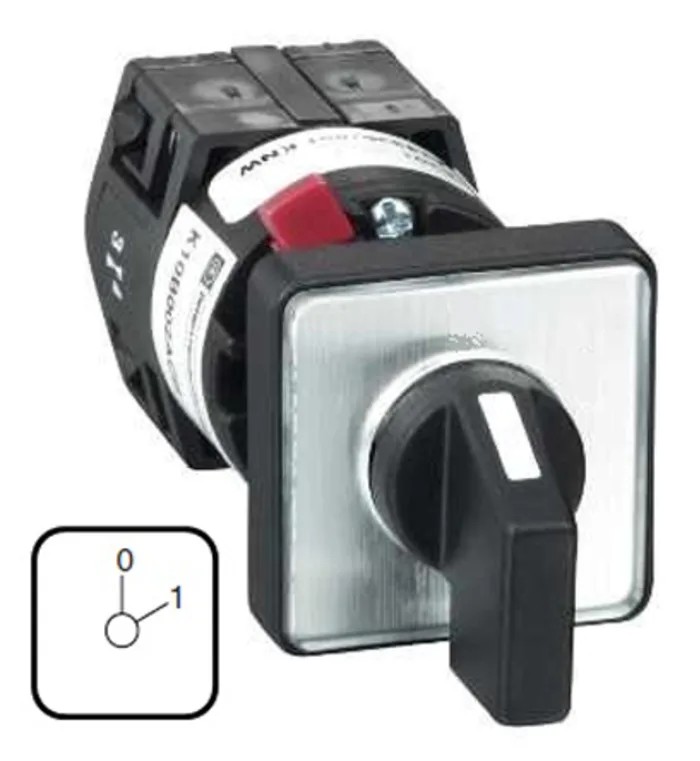

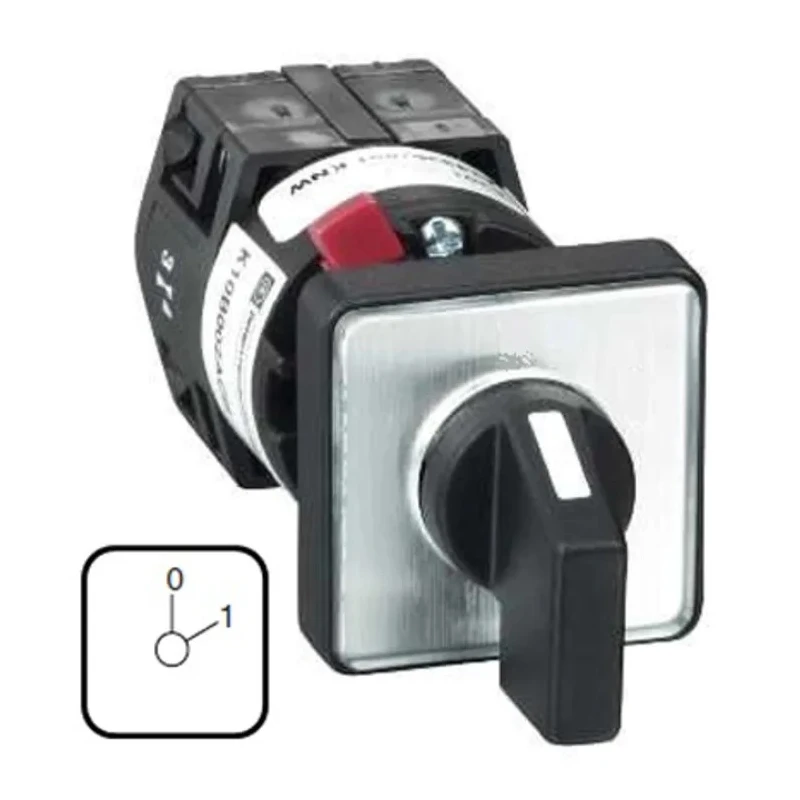

Schneider Electric Harmony K Series Cam Switch 3 Phase, 2 Positions 45°, Black Handle Actuator 12A K1A001ACH

Schneider Electric K1A001ACH Harmony K Series Cam Switch is engineered for industrial and electrical applications requiring 3 phase switching with precise control. It provides two defined positions at a 45° angle of throw, operated via a durable black handle actuator. The product supports a contact current of 12A and contact voltage up to 690V AC, suitable for demanding electrical environments.

The cam switch mounts at the front and uses screw terminals to ensure secure and reliable electrical connections. Designed with a single pole configuration, this switch offers IP65 ingress protection, making it ideal for environments exposed to dust and moisture. It operates effectively within temperature ranges of -25°C minimum to 55°C maximum, maintaining performance stability.

With a mechanical life of 1,000,000 cycles, the switch promises longevity in heavy-duty usage scenarios. It adheres to international standards including CSA C22.2 No 14, EN/IEC 60947-3, EN/IEC 60947-5-1, and UL 508, fulfilling stringent safety and performance requirements. Its compact form factor measures 45mm in length and width and 50mm in depth, allowing integration in constrained electrical panels or machinery.

This cam switch is suited for industrial automation, electrical control panels, HVAC systems, and manufacturing equipment where reliable position switching is mandatory. It supports safe operation with its robust actuator design and certified compliance, providing confidence for installations in commercial and industrial settings.

The switch is designed with front mount and screw terminal type. It is built for single pole operation with IP65 rating for ingress protection. Operates reliably between -25°C and 55°C temperatures. Mechanical life rated for 1,000,000 cycles ensures durability.

Complies with standards CSA C22.2 No 14, EN/IEC 60947-3, EN/IEC 60947-5-1, UL 508. Compact dimensions include 45mm length, 45mm width, and 50mm depth. Explore the range of Schneider Electric Cam Switches and actuators on EnvMart for versatile and certified industrial electrical solutions.
