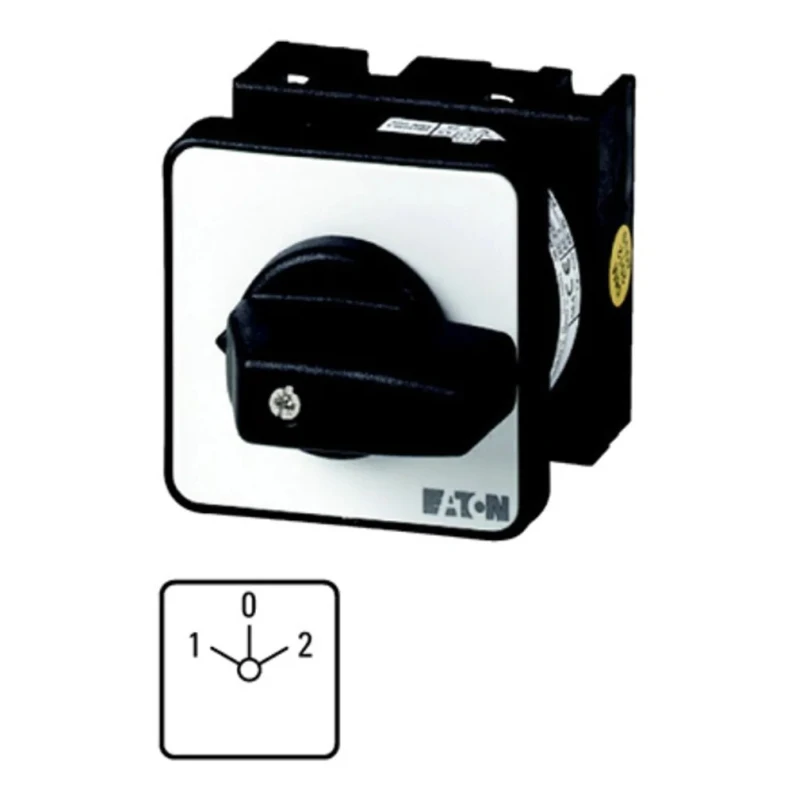

Eaton 3 Position 60° Toggle Actuator Cam Switch 20 A 022234 T0-2-8211/E

Free Delivery in India | Lowest Global Shipping Charges

Eaton 3 Position 60° Toggle Actuator Cam Switch 20 A 022234 T0-2-8211/E

Name: Eaton 3 Position 60° Toggle Actuator Cam Switch 20 A 022234 T0-2-8211/E
Brand: Eaton
SKU: 300420
Price: 47.15 USD
Availability: InStock



Category Cam Switches Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Length	48mm
Model	022234 T0-2-8211/E
Depth	48mm
IP Rating	IP65
Width	90mm
Mount Type	Flush
Series	T0
Maximum Operating Temperature	50°C
Actuator Type	Toggle
Number of Positions	3
Minimum Operating Temperature	-25°C
Terminal type	Screw
Hazardous Area Certification	IECEx
Number of Poles	2
Mechanical Life	10000000Operations
Contact Voltage	690V ac
Contact Current	20A
Angle of Throw	60 °
BACO, DP 2 Position , 16ABrand	BACO
Eaton, 2P 3 Position , 20ABrand	Eaton

Key Features

Offers a switching angle of 60° with three distinct positions for versatile circuit control.
Flush mount design with compact dimensions of 48 mm length, 48 mm depth, and 90 mm width.
Rated for 690 V AC contact voltage ensuring compatibility with high voltage systems.
Features IP65 protection rating for dust proofing and resistance to low-pressure water jets.
Certified to international standards including IEC/EN 60947, UL 508, CSA, and CE marking for global compliance.
Operates reliably between -25°C and 50°C maximum, suitable for demanding environmental conditions.
Toggle actuator type with screw terminal connections for secure installation.
Mechanical life expectancy of 10 million operations for robust industrial use.

Product Description

The Eaton 022234 T0-2-8211/E is a high-performance 3 Position 60° Toggle Actuator Cam Switch designed for robust industrial electrical control applications. Rated at 20 A contact current and 690 V AC contact voltage, it provides reliable switching capabilities in powerful electrical systems.

Its compact flush mount design with dimensions 48 mm length, 48 mm depth, and 90 mm width allows installation in confined spaces. The toggle actuator combined with screw-type terminals ensures secure and easy connections.

This cam switch complies with multiple international standards including IEC/EN 60947, UL 508, CSA, and CE marking, demonstrating global certification and safety readiness. It offers IP65 protection, making it dust-tight and capable of withstanding low-pressure water jets from any direction, suitable for challenging environments.

Operating temperature ranges from -25°C to +50°C depending on installation conditions, enabling use in various industrial, medical, diagnostic, and conveyor automation equipment. The mechanical life of 10 million operations guarantees long service life. This product is manufactured in the United Kingdom, confirming premium production quality.

Offers a switching angle of 60° with three distinct positions for versatile circuit control. Flush mount design with compact dimensions of 48 mm length, 48 mm depth, and 90 mm width. Rated for 690 V AC contact voltage ensuring compatibility with high voltage systems.

Features IP65 protection rating for dust proofing and resistance to low-pressure water jets. Certified to international standards including IEC/EN 60947, UL 508, CSA, and CE marking for global compliance. Operates reliably between -25°C and 50°C maximum, suitable for demanding environmental conditions.

Toggle actuator type with screw terminal connections for secure installation. Mechanical life expectancy of 10 million operations for robust industrial use. Ideal for use in medical equipment, diagnostic machinery, conveyor speed control, and other electrical automation systems.

Manufactured in the United Kingdom, assuring quality and build reliability. Explore more quality Eaton Cam Switches and actuators on EnvMart for reliable industrial electrical control solutions.
