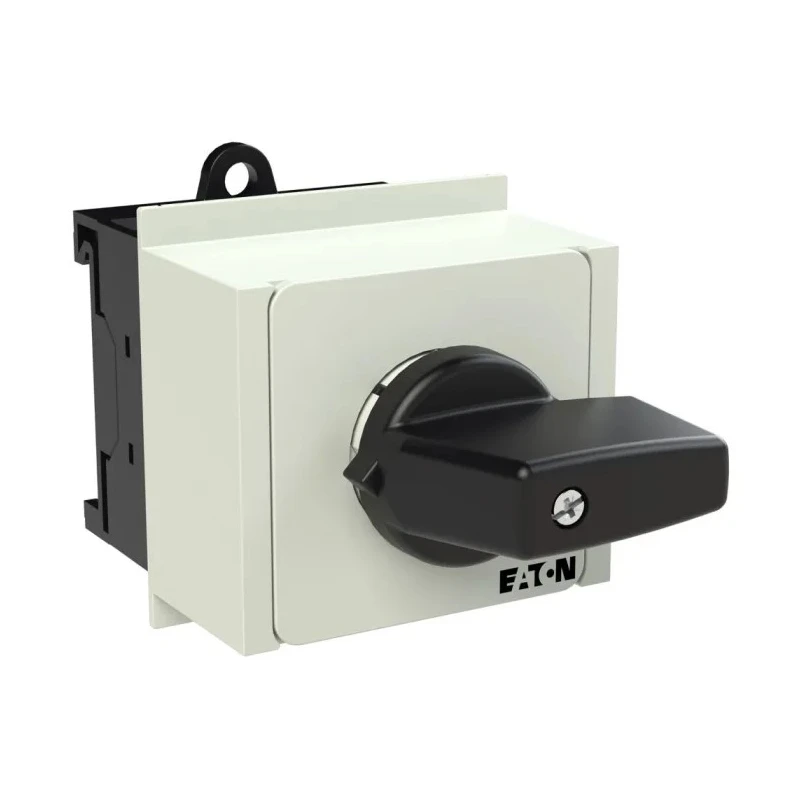

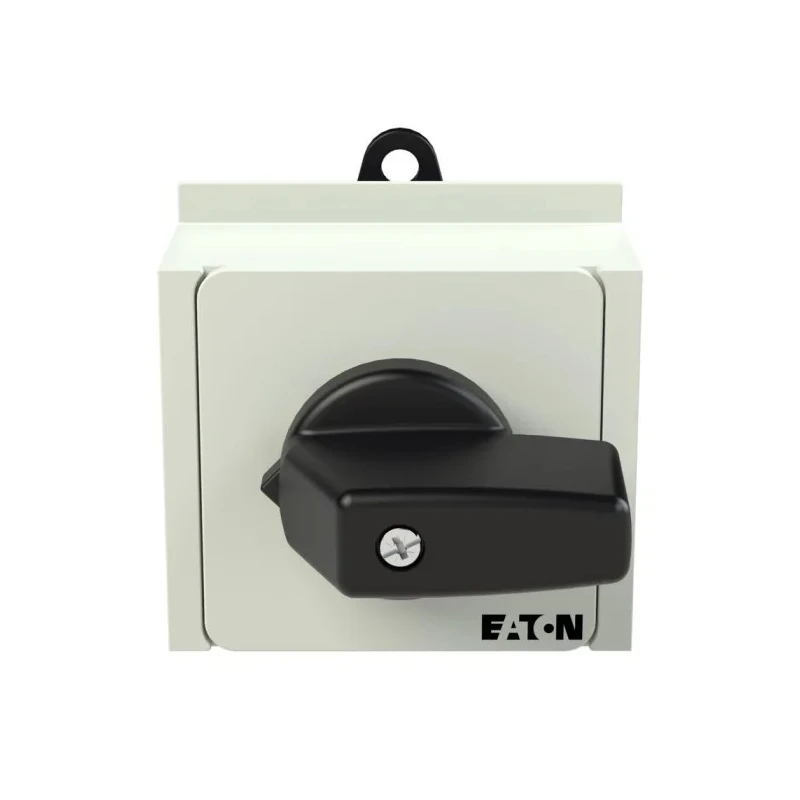

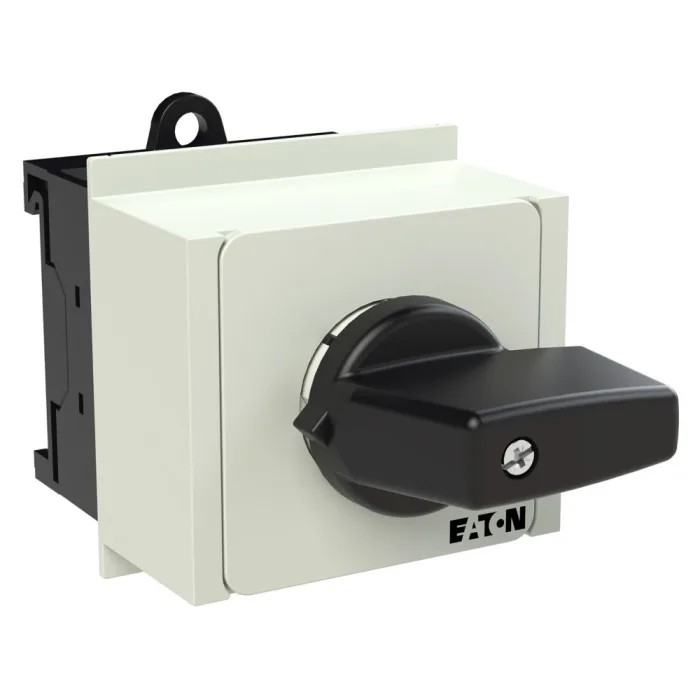

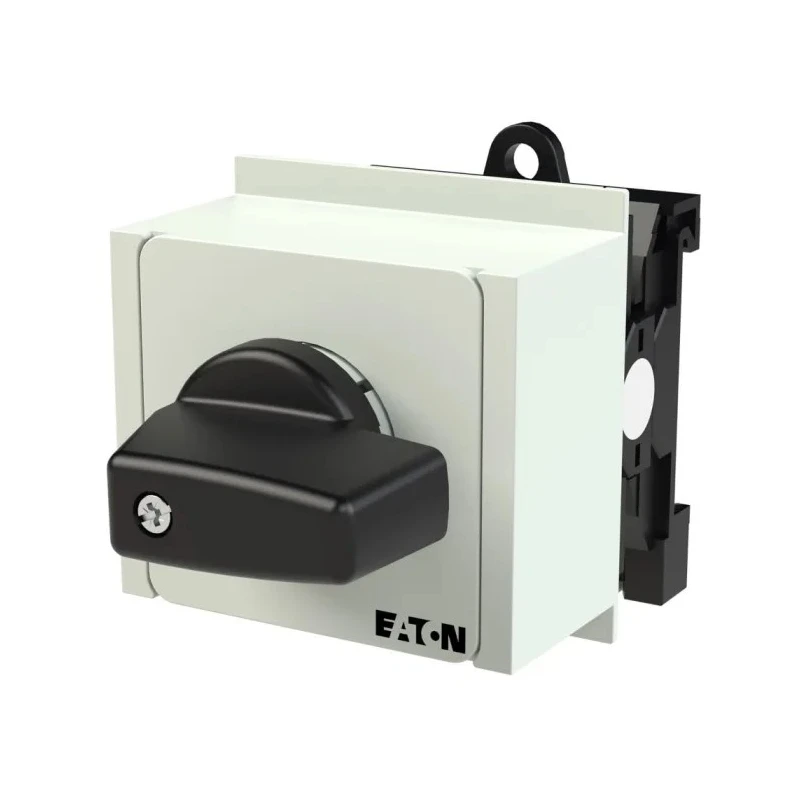

Eaton 2 Position 90° Toggle Actuator Cam Switch 20A 690V AC DPST Board Mount 015147 T0-1-102/IVS

Free Delivery in India | Lowest Global Shipping Charges

Eaton 2 Position 90° Toggle Actuator Cam Switch 20A 690V AC DPST Board Mount 015147 T0-1-102/IVS

Name: Eaton 2 Position 90° Toggle Actuator Cam Switch 20A 690V AC DPST Board Mount 015147 T0-1-102/IVS
Brand: Eaton
SKU: 182722
Price: 44.52 USD
Availability: InStock



Category Cam Switches Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Length	54mm
Model	015147 T0-1-102/IVS
Depth	55mm
IP Rating	IP30
Width	82mm
Mount Type	Board
Series	T0
Maximum Operating Temperature	50°C
Actuator Type	Toggle
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Screw
Hazardous Area Certification	IECEx
Number of Poles	2
Mechanical Life	10000000Operations
Contact Voltage	690V ac
Contact Current	20A
Angle of Throw	90 °
Eaton, 2P 2 Position , 20ABrand	Eaton

Key Features

Short thumb grip design allows easy operation and control.
Rated 20A maximum current for heavy-duty use.
Maximum voltage rating of 690V AC for robust performance.
Two-position configuration supporting various switching applications.
Screw terminal type for secure wiring.
IP30 rated protection against dust ingress.
Operates in temperatures from -25°C to +50°C.
Comprehensive certifications including UL, CSA, CE, and IECEx.

Product Description

Eaton 015147 T0-1-102/IVS Cam Switch is a 2-position, 90° toggle actuator designed for reliable on-off control in electrical systems. This DPST cam switch supports a maximum operational current of 20A and voltage rating up to 690V AC, making it suitable for demanding industrial and commercial applications.

The compact board-mount switch measures 54 mm in length, 82 mm in width, and 55 mm in depth, designed for easy installation in panel-mounted service distribution boards. The short thumb grip actuator enhances user accessibility by enabling quick and efficient switching between positions.

Rated with an IP30 protection level, this cam switch is protected against dust ingress while operating effectively within ambient temperatures spanning from -25°C to 50°C, ensuring reliability in harsh environments.

Wiring connections are secured by screw terminals, enabling stable and safe assembly. The product holds multiple certifications including UL 508, CSA-C22.2 No. 94, CE marking, IEC/EN 60204, CSA-C22.2 No. 14-05, VDE 0660, CSA, UL, IEC/EN 60947, and IECEx hazardous area certification, attesting to its quality and safety standards.

This Eaton cam switch is widely used in industrial automation for controlling electrical circuits and is ideal for installation within service distribution boards. Its durable mechanical design supports up to 10 million operations, ensuring long-term reliability for applications requiring frequent on-off cycling.

Short thumb grip for ease of operation. Rated 20A maximum current for heavy-duty use. Maximum voltage rating of 690V AC for robust performance. Two-position configuration supporting various switching applications. Screw terminal type for secure wiring.

IP30 rated protection against dust ingress. Operates in temperatures from -25°C to +50°C. Comprehensive certifications including UL, CSA, CE, and IECEx. Compact dimensions for panel mounting (54 x 82 x 55 mm). Mechanical life of 10 million operations ensures durability.

Manufactured in the United Kingdom, this Eaton cam switch combines quality engineering and versatile use in electrical panels and automation projects. Explore the Electronics & Electricals category on EnvMart for more among Cam Switches by Eaton.
