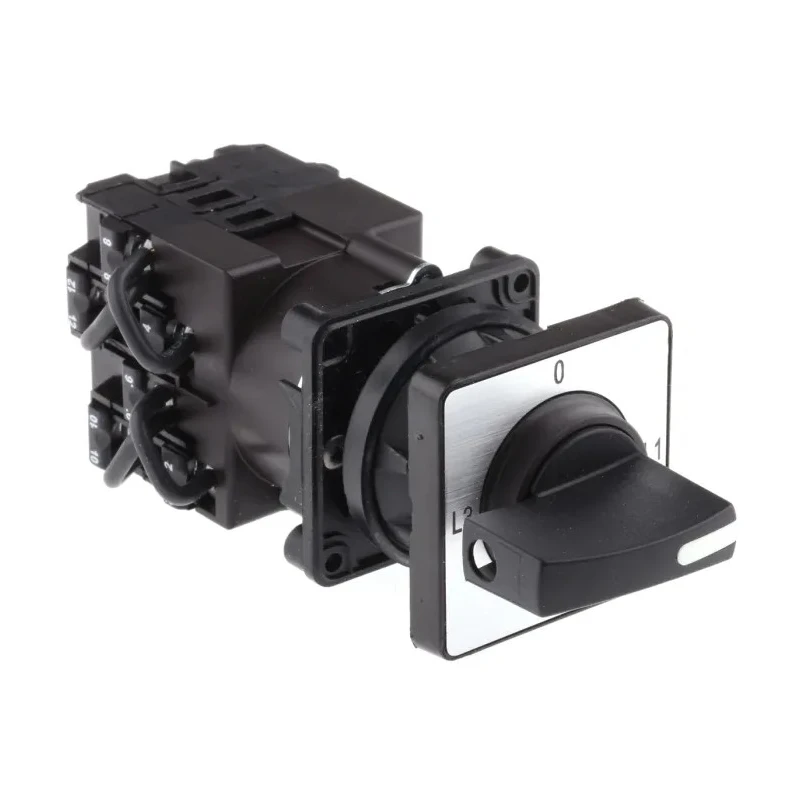

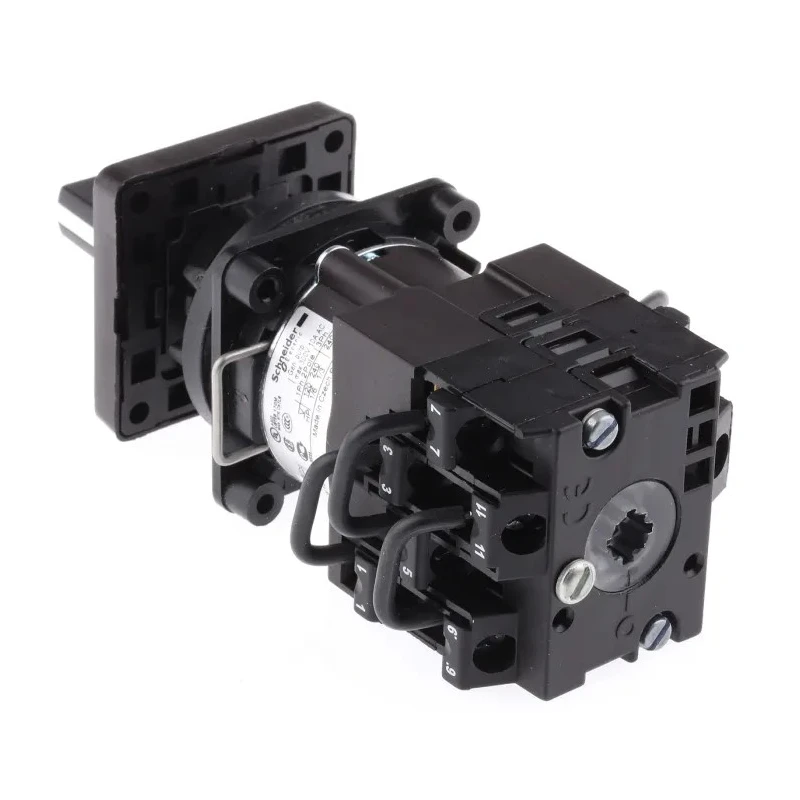

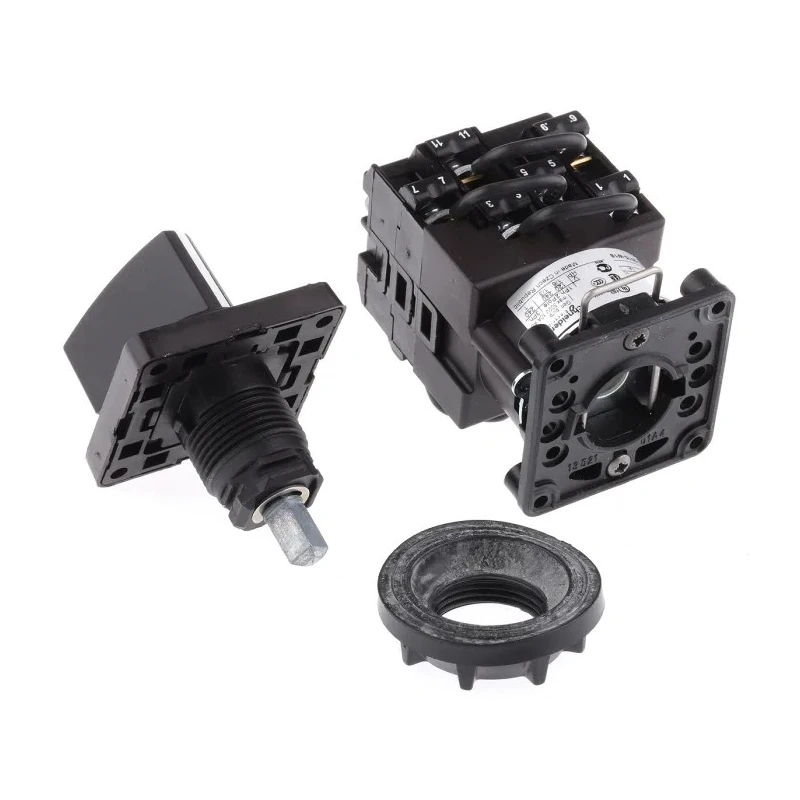

Schneider Electric Harmony 4 Position 90 °, Black Handle 12A Cam Switch K1F003MCH

Schneider Electric K1F003MCH Cam Switch is an industrial-grade control device featuring 4 switching positions with a black handle actuator designed for durability and ease of use. It is part of the Harmony series, widely recognized for reliable electrical switching components used in automation and power control circuits.

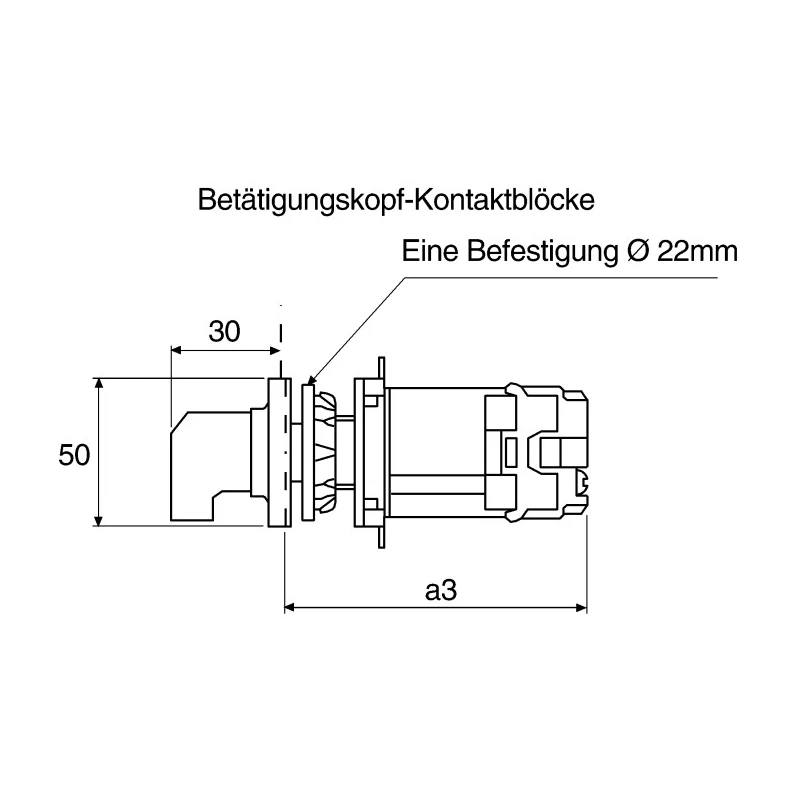

This 3-phase cam switch supports a contact current rating of 12A and a contact voltage rating up to 690V AC, suitable for a variety of manufacturing, industrial automation, and electrical control applications. Its front mount design allows for secure installation with a 22mm diameter fixing hole, while screw terminals ensure safe and stable electrical connections.

The product is rated IP65, offering protection against dust and water, making it suitable for use in harsh environments, including construction, HVAC, and industrial machinery settings. The black handle actuator features a 90-degree angle of throw, enabling clear tactile feedback and precise switching.

The switch operates reliably within a temperature range from -25°C to 55°C and boasts a mechanical life of 1,000,000 cycles, ensuring long-term operation with minimal maintenance. Its construction complies with international standards such as EN/IEC 60947-5-1, EN/IEC 60947-3, and CENELEC EN 50013, meeting rigorous safety and performance criteria.

Part of the Harmony series designed for industrial cam switch applications. Operates with a 3-phase electrical connection and features 4 positions. Mounting done via front mount with a 22mm diameter fixing hole. Features screw-type terminals and a 2-pole configuration.

Offers IP65 protection rating suitable for harsh environments. Black handle actuator with a 90 ° angle of throw for precise operation. Operating temperature range from -25°C to 55°C ensures reliable performance. Rated contact voltage of 690V AC and mechanical life of 1,000,000 cycles.

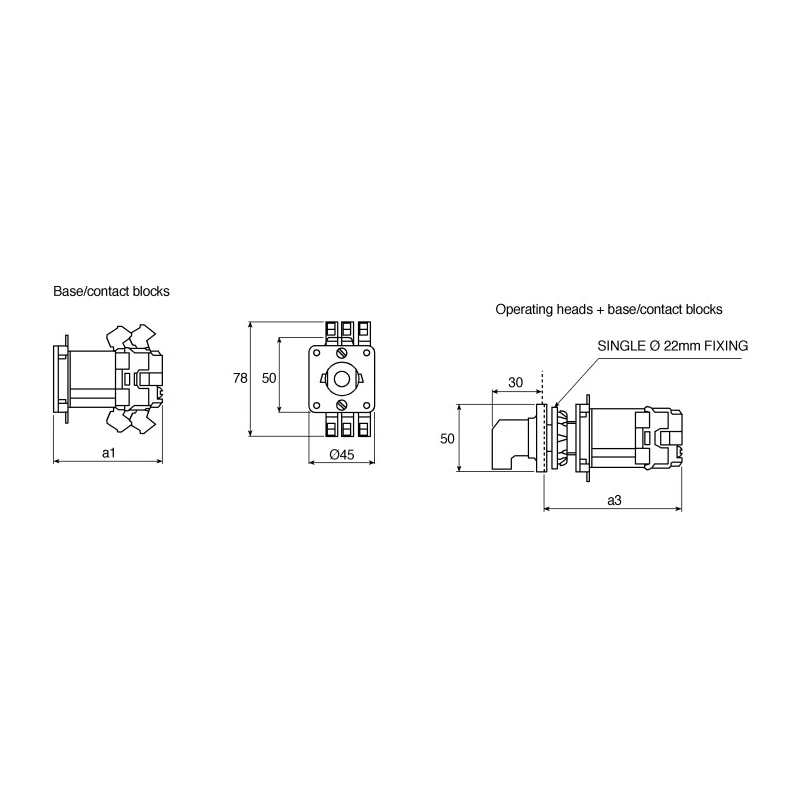

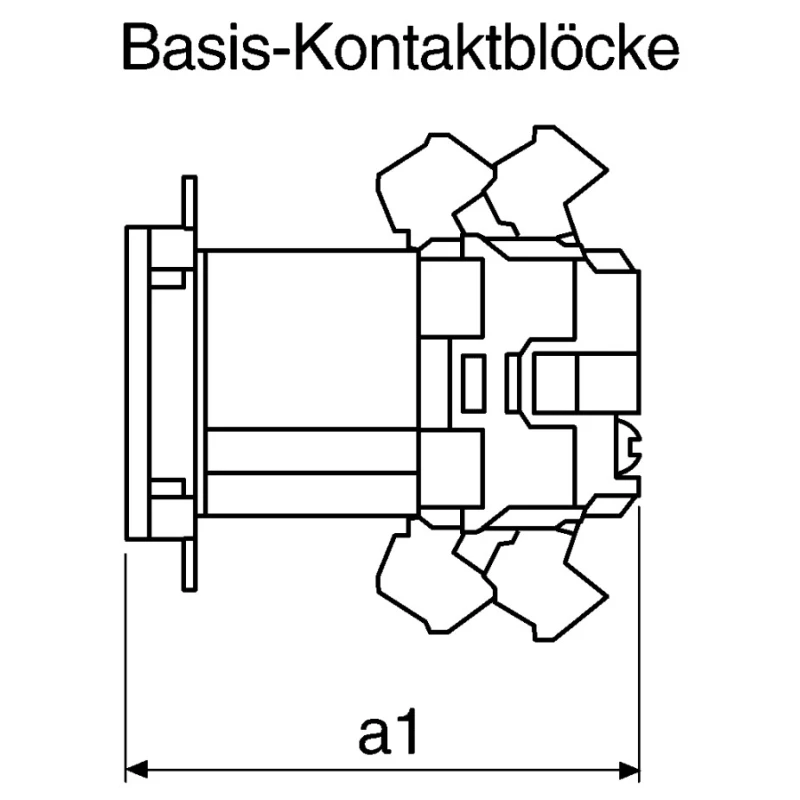

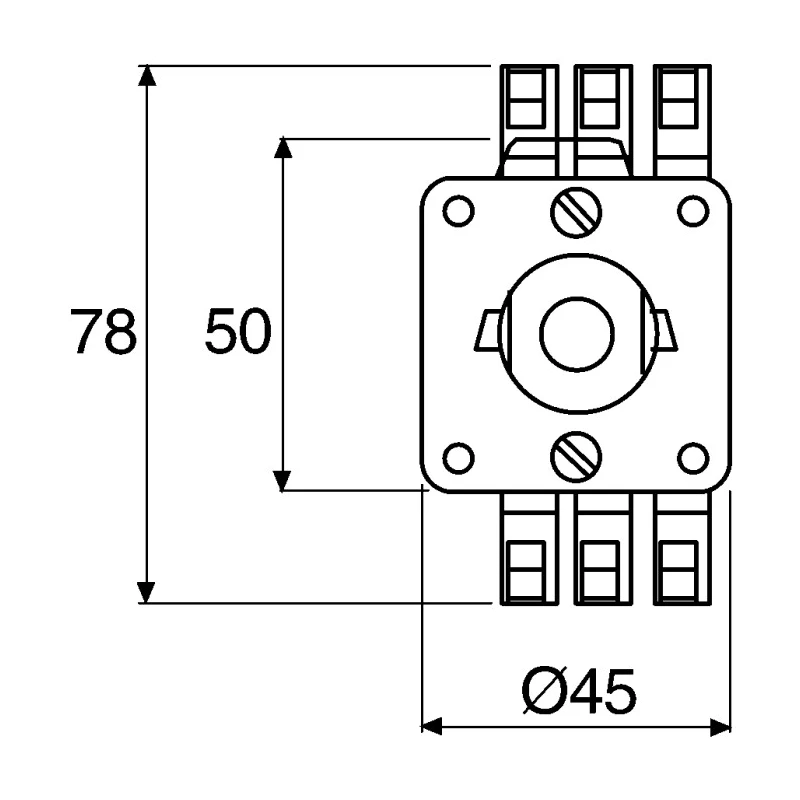

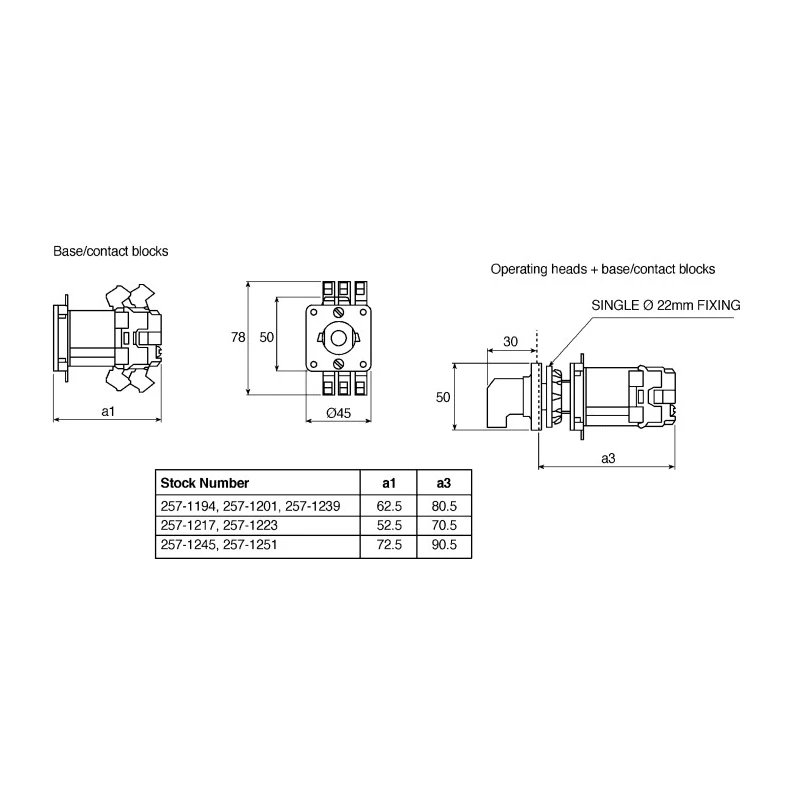

Standards compliance includes EN/IEC 60947-5-1, EN/IEC 60947-3, and CENELEC EN 50013. Dimensions: Length 78mm, Width 45mm, Depth 120.5mm.

This cam switch is ideal for use in industrial electrical control panels, manufacturing machinery, HVAC systems, and automation setups where reliable multi-position switching is needed. Its robust build and compliance with multiple international standards make it a dependable component for demanding industrial environments.
