| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.25mm |
| Structure | Silicone epitaxial planer type |
| Model | 1SS400SMT2R |
| Width | 0.85mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Sub Type | Switching Diode |
| Minimum Operating Temperature | -55°C |
| Digital Multimeter | Handy Type |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500mA |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 4ns |
| Motor Control | Brushless DC |
| Maximum Forward Current If | 225mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 90V |

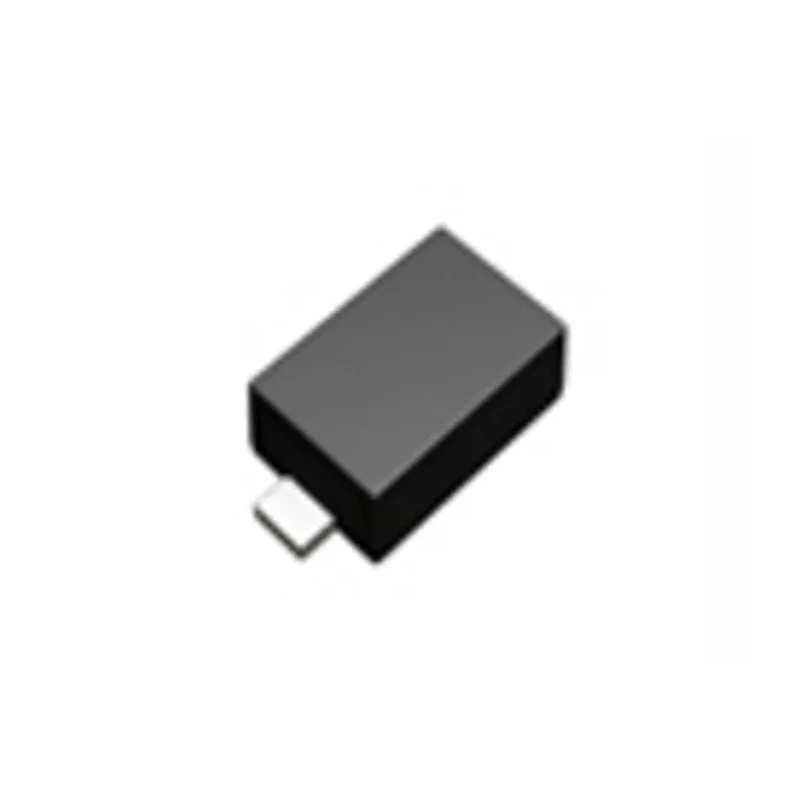

ROHM 1SS400SMT2R is a high-reliability switching diode with a single diode configuration designed for surface mounting. It features a robust silicone epitaxial planar type structure ideal for electronic and industrial applications requiring stable supply and performance.
This diode operates efficiently with a maximum forward current rating of 225 mA and can withstand a maximum peak reverse voltage of 90 V. Its compact SMT package includes 2 pins with dimensions of 1.25 mm in length, 0.85 mm in width, and 0.7 mm in height, allowing for space-saving PCB designs.
Operating temperature ranges from -55°C to 150°C, ensuring suitability for a broad range of environmental conditions. The diode also boasts a peak reverse recovery time of 4 ns and a maximum forward voltage of 1.2 V, supporting high-speed switching requirements. Additionally, it handles a peak non-repetitive forward surge current of 500 mA, enhancing durability under surge conditions.
Typical applications include motor control systems such as brushless DC motors, stepper motors, and brushed DC motors, as well as digital multimeters of handy type and surveillance cameras connected via networks. This switching diode is not certified for automotive standards but is well-suited for various industrial, consumer electronic, and measurement instrumentation use cases.
High reliability silicone epitaxial planar type diode. Compact 2-pin surface mount device for space-constrained designs. Fast switching capability with 4 ns peak reverse recovery time. Wide operating temperature range from -55°C to 150°C.
Suitable for motor control, digital multimeters, and surveillance devices. Maximum peak reverse voltage of 90 V ensuring voltage tolerance. Forward current rating of 225 mA for steady current conduction. Robust against surge with 500 mA peak non-repetitive forward surge current.
