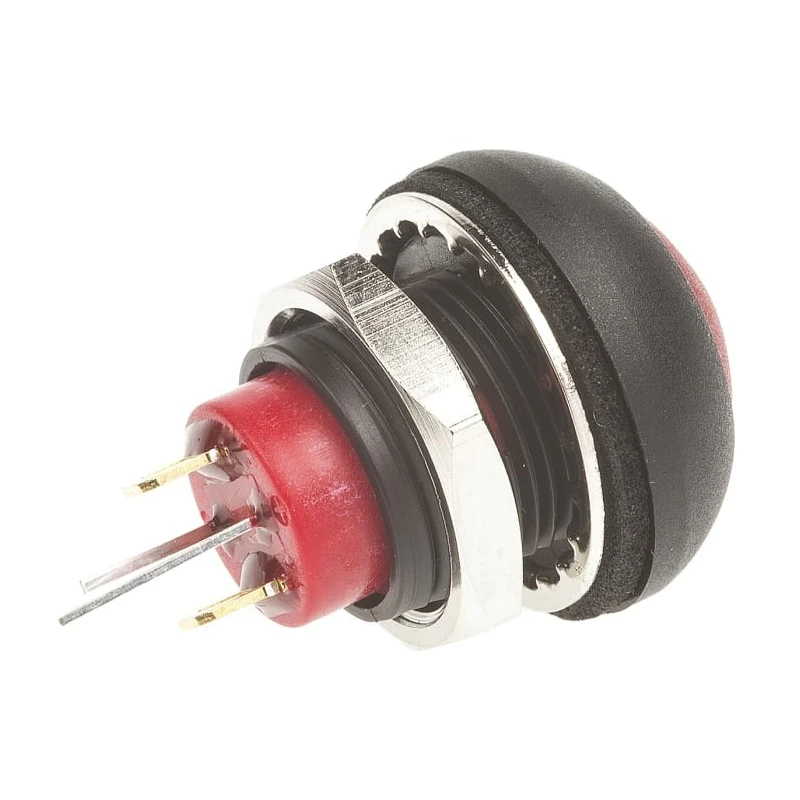

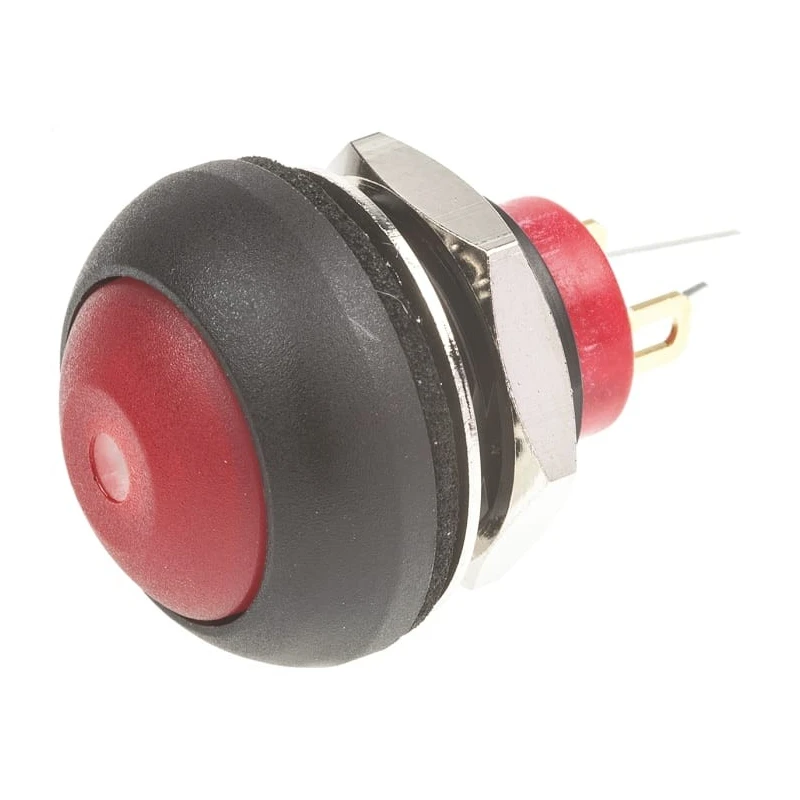

KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch Panel Mount Momentary SPST 12.9 mm Cutout DPWL1CGRY

Name: KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch Panel Mount Momentary SPST 12.9 mm Cutout DPWL1CGRY
Brand: KNITTER-SWITCH
SKU: 215515
Price: 7.72 USD
Availability: InStock



Category Push Button Switches Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	China
Brand	KNITTER-SWITCH
Model	DPWL1CGRY
IP Rating	IP67
Mount Type	Panel
Series	DPWL
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Panel Cutout Size	12.9 mm
Terminal type	Solder
Standards/Approvals	CSA, UL
LED Colour	Yellow
Switch Operation	Momentary
Actuator Colour	Red
Actuator Style	Button
Switch Contact Current	400mA
Contact AC Voltage	250V ac

Key Features

Designed for panel mounting with a 12.9 mm cutout size.
Momentary switch operation suitable for temporary electrical circuits.
SPST contact configuration ensuring simple on-off switching.
Illuminated with a yellow LED requiring a 1200 Ohms resistor for 24V LED operation.
High IP67 waterproof rating protects against dust and immersion.
Thermoplastic case construction for durability and insulation.
Capable of handling 250 V AC contact voltage and 400 mA contact current.
Rated for a maximum operating temperature of 85°C.

Product Description

The KNITTER-SWITCH DPWL1CGRY is a high-quality illuminated miniature push button switch designed for panel mounting applications requiring a compact 12.9 mm cutout. This momentary action switch features a simple SPST (Single Pole Single Throw) contact configuration, making it ideal for on-off control in electronic and automation systems.

The switch is illuminated with a yellow LED indicator which enhances operator visibility and status indication. For proper LED current limiting, a resistor of approximately 1200 Ohms, 0.5W is recommended, particularly for 24V DC LED operation. The thermoplastic casing offers robust protection combined with electrical insulation. Its IP67 rating ensures excellent waterproof and dustproof performance, suitable for harsh environments.

Electrical ratings include an AC contact voltage limit of 250V and a contact current rating of 400 mA. The DPWL1CGRY is built to withstand temperatures up to 85°C, ensuring reliability under demanding conditions. It boasts a long mechanical lifespan of over 1,000,000 cycles, supporting durable industrial and commercial use.

This switch meets international safety standards with certifications such as CSA and UL, reinforcing its suitability for use in automation, manufacturing control panels, and electrical equipment installations.

Its compact size and easy solder terminal connections facilitate convenient integration in panels across electronics, electrical automation, machinery control, and HVAC sectors. Designed for panel mounting with a 12.9 mm cutout size.

Momentary switch operation suitable for temporary electrical circuits. SPST contact configuration ensuring simple on-off switching. Illuminated with a yellow LED requiring a 1200 Ohms resistor for 24V LED operation. High IP67 waterproof rating protects against dust and immersion.

Thermoplastic case construction for durability and insulation. Capable of handling 250 V AC contact voltage and 400 mA contact current. Rated for a maximum operating temperature of 85°C. Long mechanical life with at least 1,000,000 cycles.

Complies with CSA and UL safety standards. Explore a wide range of Push Button Switches and illuminated miniature switches at EnvMart for industrial, laboratory, and commercial electrical applications.
