Schneider Electric Harmony K 3-Phase 2 Position Cam Switch with Black Handle 12A 690V AC K1C003ALH

Free Delivery in India | Lowest Global Shipping Charges

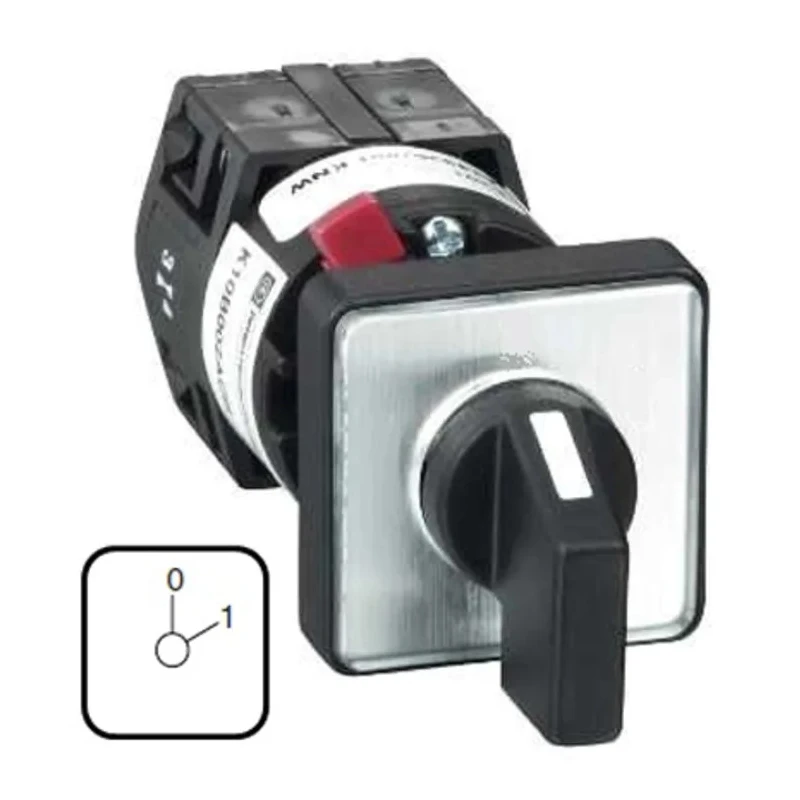

Schneider Electric Harmony K 3-Phase 2 Position Cam Switch with Black Handle 12A 690V AC K1C003ALH

Name: Schneider Electric Harmony K 3-Phase 2 Position Cam Switch with Black Handle 12A 690V AC K1C003ALH
Brand: Schneider Electric
SKU: 193708
Price: 87.39 USD
Availability: InStock



Category Cam Switches Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	45mm
Model	K1C003ALH
Depth	45mm
IP Rating	IP40
Width	45mm
Mount Type	Front
Series	Harmony K
Maximum Operating Temperature	55°C
Actuator Type	Black Handle
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Screw
Electrical Phase	3
Number of Poles	3
Mechanical Life	1000000Cycles
Contact Voltage	690V ac
Contact Current	12A
Angle of Throw	45 °

Key Features

Equipped with a black handle actuator for ergonomic operation.
Two-position rotary switch with 45° angle of throw for precise control.
Rated for 12 amperes contact current and 690 volts AC contact voltage.
Complies with standards EN/IEC 60947-3, CENELEC EN 50013, EN/IEC 60947-5-1.
Front mount type with screw terminal connections for secure wiring.
Durable mechanical life rated up to 1,000,000 cycles.
Operating temperature range from -25°C to +55°C ensuring reliability in diverse environments.
IP40 rated enclosure protection against solid objects greater than 1mm.

Product Description

Schneider Electric K1C003ALH is a 3-phase cam switch from the Harmony K series, designed for industrial and electrical automation applications. This switch features a robust black handle actuator allowing for reliable manual operation with two distinct positions and a 45° angle of throw to facilitate precise switching.

The device is rated for 12A contact current and can safely operate at a contact voltage of 690V AC, complying strictly with international standards EN/IEC 60947-3, CENELEC EN 50013, and EN/IEC 60947-5-1, ensuring high safety and performance in electrical circuits.

It features a front mount design with screw terminals offering secure and stable connections for three poles, making it suitable for demanding industrial environments. Designed with durability in mind, this cam switch endures up to 1,000,000 mechanical cycles, supporting long-lasting operation and reducing maintenance needs.

Its operating temperature range from -25°C to +55°C enables this cam switch to function reliably in a wide range of climate conditions. The IP40 rating protects against ingress of solid objects larger than 1mm, further securing the internal mechanisms.

Compact dimensions of 45mm in length, width, and depth facilitate easy installation even in limited space control panels. This product is ideal for use in industrial control systems, electrical machinery, and automation equipment, providing effective and efficient switching performance.

Equipped with a black handle actuator for ergonomic operation. Two-position rotary switch with 45° angle of throw for precise control. Rated for 12 amperes contact current and 690 volts AC contact voltage. Complies with standards EN/IEC 60947-3, CENELEC EN 50013, EN/IEC 60947-5-1.

Front mount type with screw terminal connections for secure wiring. Durable mechanical life rated up to 1,000,000 cycles. Operating temperature range from -25°C to +55°C ensuring reliability in diverse environments. IP40 rated enclosure protection against solid objects greater than 1mm.

Compact dimensions of 45mm length, width, and depth for space-efficient installation. Explore the full range of control and Cam Switches at EnvMart for reliable industrial electrical components.
