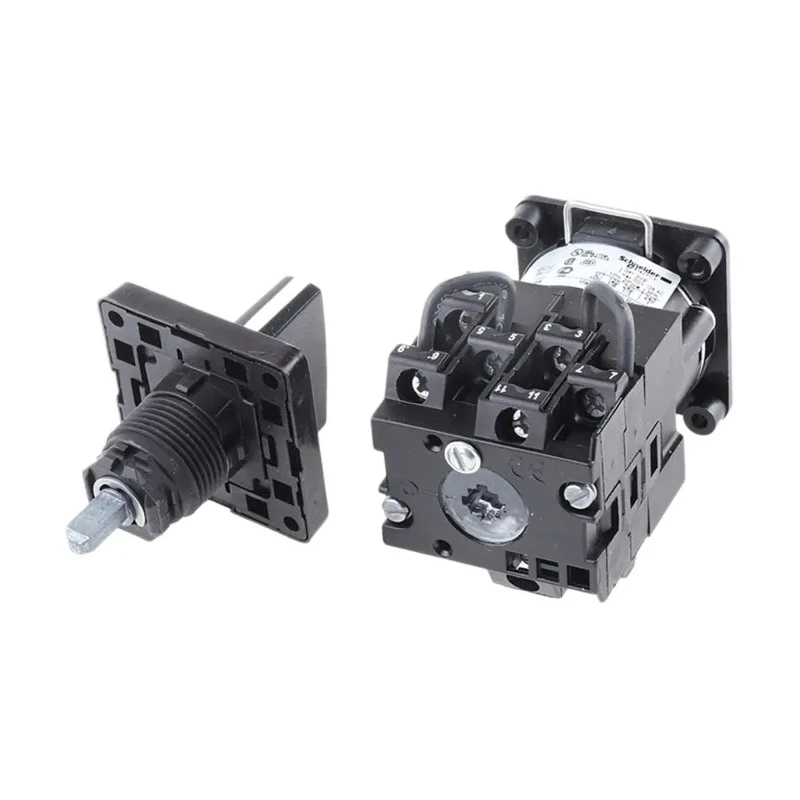

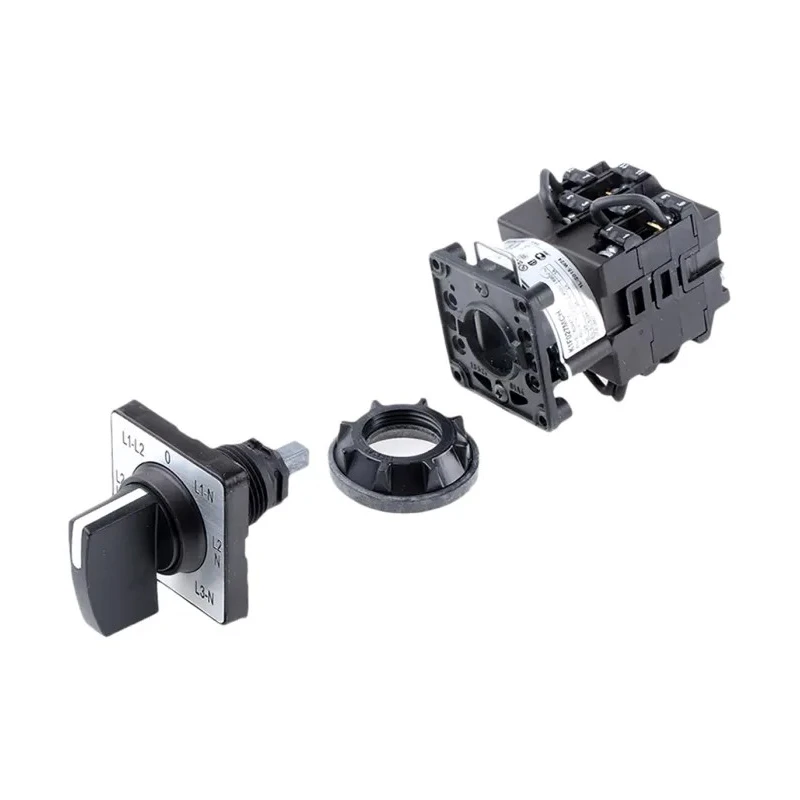

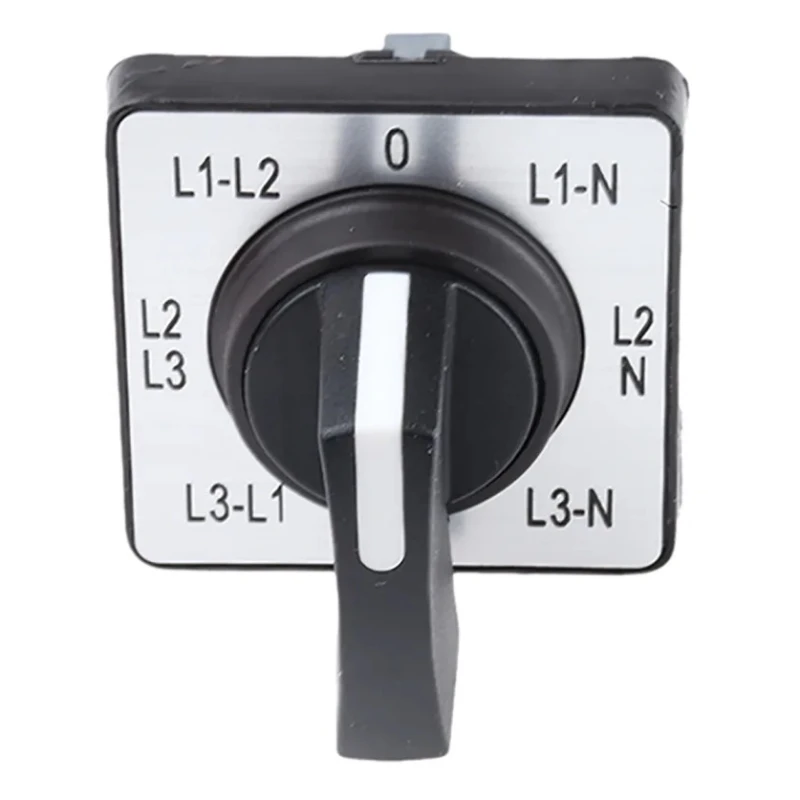

Schneider Electric Cam Switch 7 Position 45° Black Handle Actuator 12A K1F027MCH

Schneider Electric K1F027MCH Cam Switch is a robust electrical component engineered for control circuits and power switching applications in industrial environments. This model belongs to the Harmony series, known for reliability and performance.

The cam switch features 7 distinct positions with an angle of throw of 45°, controlled by a black handle actuator providing intuitive operation. It supports both single and three-phase electrical systems with 2 poles and screw terminal connections, facilitating easy and secure mounting from the front.

It withstands harsh conditions with an IP65 ingress protection rating, making it resistant to dust and water ingress. The operating temperature range of -25°C to 55°C ensures functionality in a variety of industrial settings. Rated for a contact current of 12A and contact voltage up to 690V AC, it offers stable and reliable electrical performance.

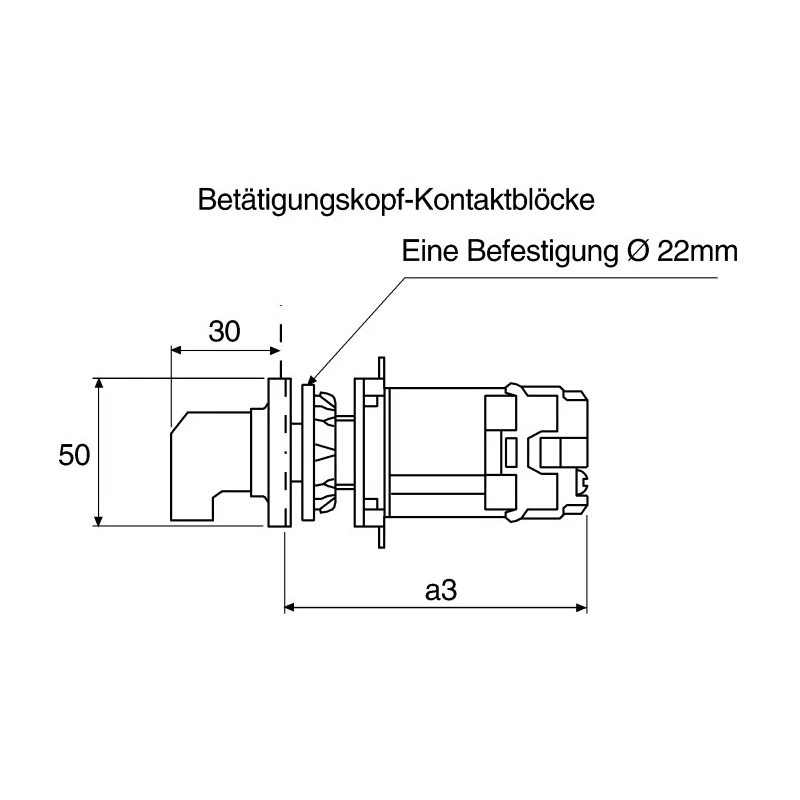

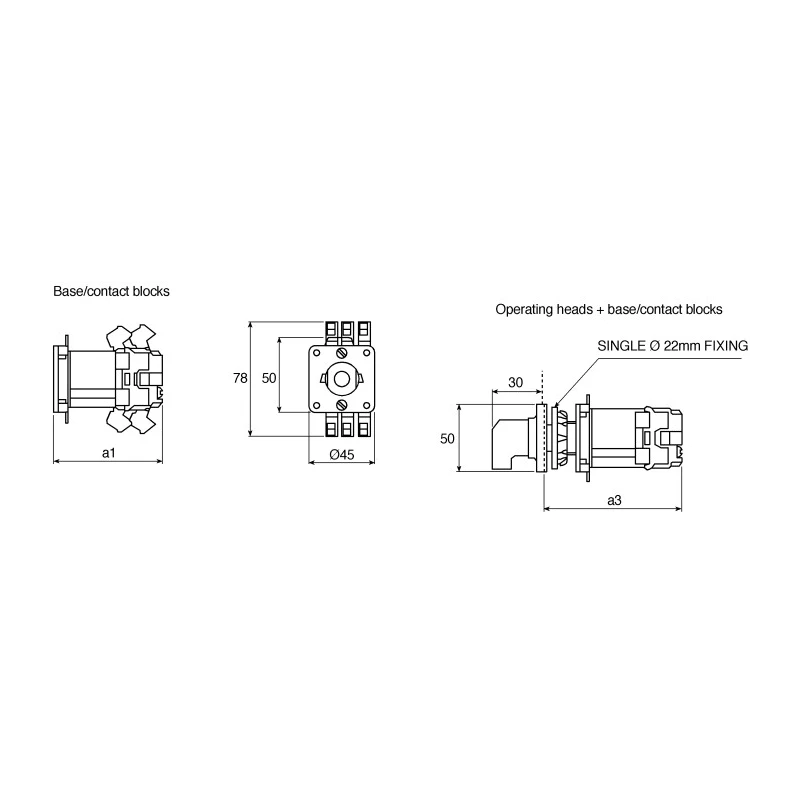

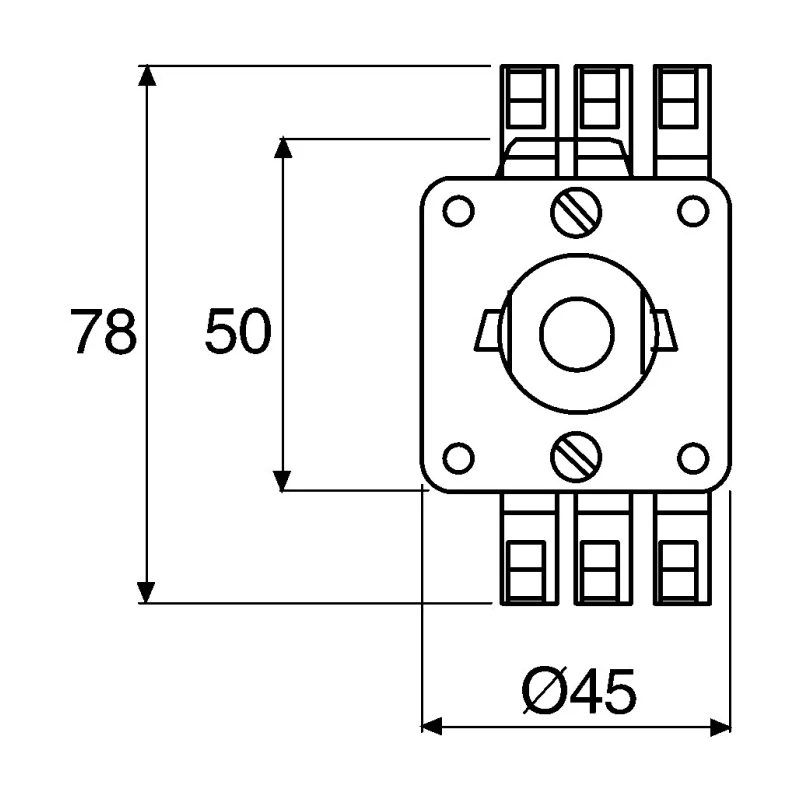

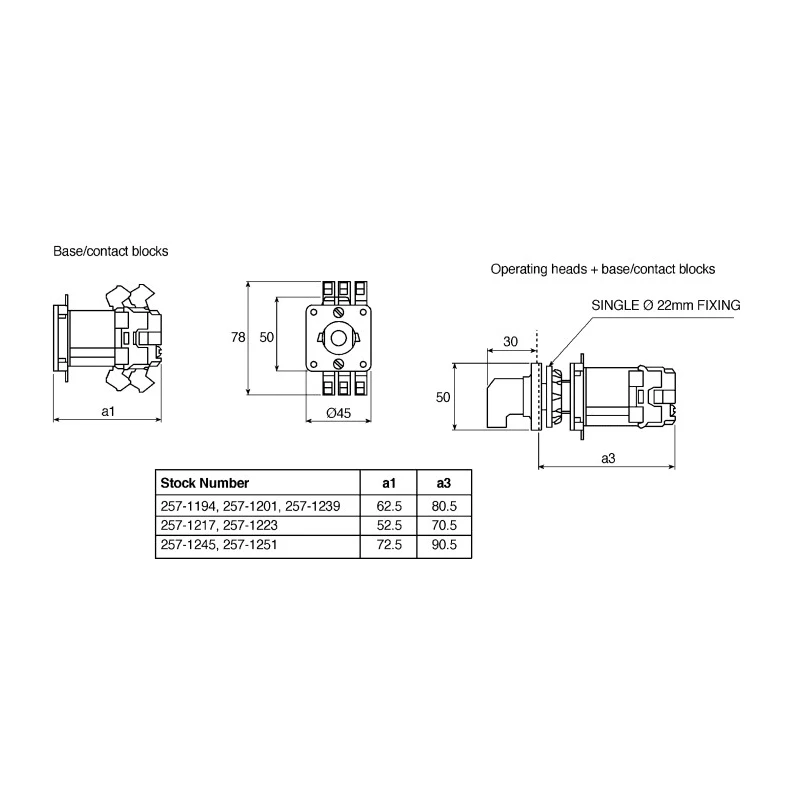

Designed for longevity, this cam switch offers a mechanical life of 1,000,000 cycles. It meets stringent international standards including EN 60947-3 and IEC 60947-5-1, guaranteeing compliance with quality and safety regulations. The compact dimensions of 78mm length, 45mm width, and 120.5mm depth allow versatile mounting options.

This cam switch is suitable for use in industrial automation, manufacturing control panels, electrical cabinets, and machinery where precise switching control is required. It offers slow break contacts with positive opening operation, enhancing safety by preventing electrical faults during switching.

Set includes the Schneider Electric 7 Position 45° Black Handle Cam Switch K1F027MCH ready for integration into industrial electrical systems. Its robust design and certified standards make it an ideal choice for demanding applications in automation and electrical industries.

Browse the Electronics & Electricals category for more high-quality Schneider Electric products and explore related Cam Switches and rotary switch actuators for comprehensive industrial control solutions.

Durable Harmony series cam switch designed for industrial electrical control. Suitable for 3 or 1 electrical phase systems with 2 poles. Mounted from the front with screw-type terminals ensuring secure connections. Features IP65 protection rating for reliable use in harsh environments.

Operating temperature ranges from -25°C to 55°C for wide industrial application. Capable of handling contact voltage up to 690V AC and contact current of 12A. Mechanical life of up to 1,000,000 cycles ensuring long-term durability.

Complies with EN 60947-3, IEC 60947-3, and other relevant standards for safety and performance. Fixed dimensions: length 78mm, width 45mm, depth 120.5mm for compact installation.
