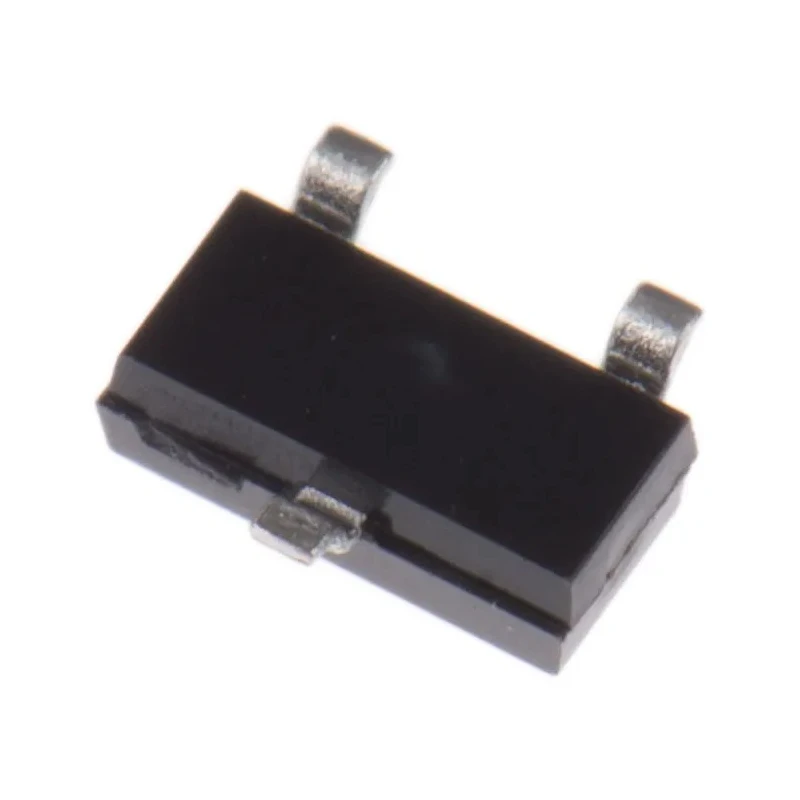

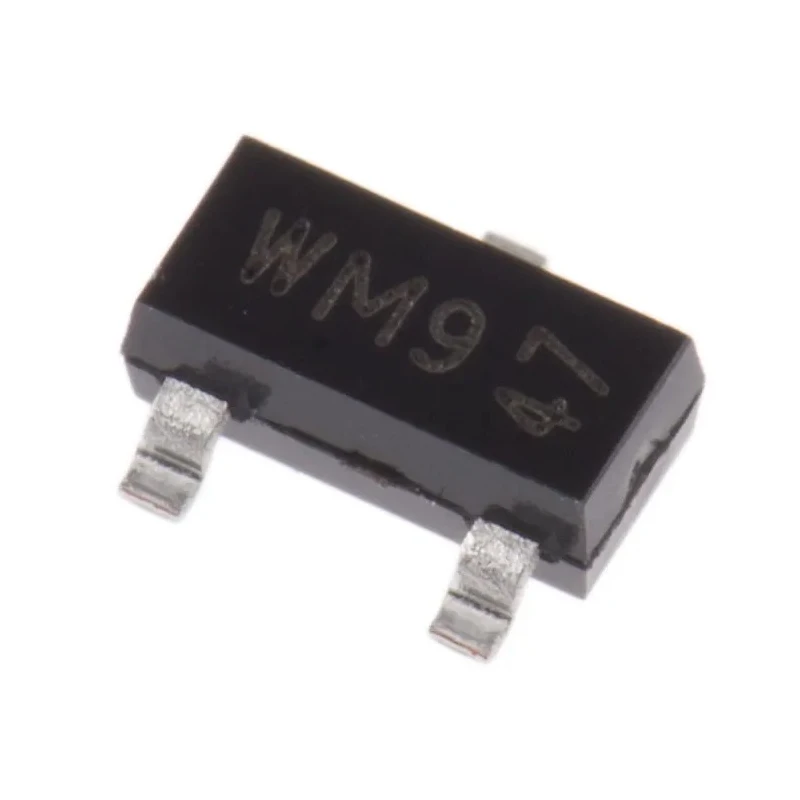

onsemi P-Channel MOSFET 3.9A 20V SOT-23 Surface Mount PMV65XP,215

The Nexperia PMV65XP,215 is a high-efficiency P-Channel MOSFET designed for surface mount integration in a variety of industrial, electronic, and power circuit designs. With its enhancement mode operation, this MOSFET can handle a maximum continuous drain current of 3.9 amperes and a drain-source voltage of 20 volts, making it suitable for demanding switching and load control tasks.

This model is offered in a compact SOT-23 package with 3 leads, which optimizes space on printed circuit boards and supports high-density applications. Its low maximum drain-source resistance of just 76 milliohm improves system energy efficiency and reduces power losses during operation. The typical gate charge of 7.6nC at Vgs ensures rapid switching, which is critical for modern high-speed control systems.

Additional technical highlights include a maximum gate-source voltage of 12 volts, a forward voltage of -0.8 volts, and a maximum power dissipation rating of 1.92 watts. Its robust construction allows reliable operation over a wide industrial temperature range from -55°C up to 150°C. The compact device features a 3mm length, 1.4mm width, and 1mm height, enabling placement in miniature designs.

Common use cases for the PMV65XP,215 P-Channel MOSFET include motor drivers, load switches, DC-DC converters, and general switching applications in industrial, automotive, and commercial environments. Its design is optimized for surface mounting, supporting automated assembly and high-volume production runs.

This MOSFET is chosen for its combination of solid electrical performance, high switching speed, and small footprint, making it an ideal choice for integration into cutting-edge electronic assemblies and industrial circuits.
