| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 21.1mm |
| Length | 16.13mm |
| Model | IPW65R110CFDAFKSA1 |
| Width | 5.21mm |
| Mount Type | Through Hole |
| Series | CoolMOS |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 99.6A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 110mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 277.8W |
| Typical Gate Charge Qg @ Vgs | 118nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 900mV |

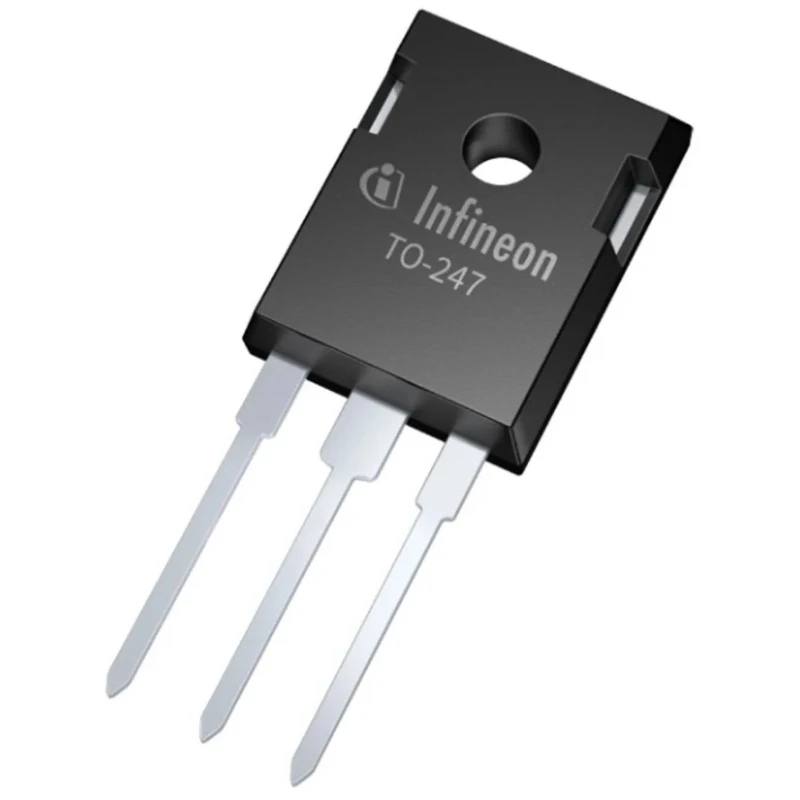

Infineon's IPW65R110CFDAFKSA1 is a high performance CoolMOS N-Channel MOSFET & Diode designed for power semiconductor applications requiring robust current and voltage capabilities. Featuring a maximum continuous drain current of 99.6 A and a drain-source voltage rating of 650 V, this device utilizes the second-generation automotive qualified CoolMOS CFDA Super junction technology.
The 3-pin TO-247 through-hole package facilitates secure mounting and strong thermal dissipation, making it suitable for industrial, automotive, and power conversion applications. The integrated fast body diode reduces voltage overshoot during hard commutation through self-limiting di/dt and dv/dt, enhancing reliability and minimizing electromagnetic interference (EMI).
Key electrical attributes include a low typical gate charge of 118 nC at the gate-source voltage, and a forward diode voltage of 900 mV, offering excellent switching speed and efficiency. Its maximum power dissipation is 277.8 W, supporting high power operation with reduced conduction losses due to a maximum drain-source resistance of 110 mΩ.
Operating efficiently at temperatures ranging from -40°C to 150°C, this MOSFET offers an increased safety margin with higher breakdown voltage, enabling applications in harsh environments. The enhancement-mode channel and 20 V maximum gate-source voltage further allow controlled switching performance.
This MOSFET and diode combination is ideal for use in industrial power modules, automotive power management systems, and other high-voltage applications requiring durable and efficient switching components.
High voltage 650 V CoolMOS CFDA Super junction MOSFET technology. Maximum drain current rating of 99.6 A. Integrated fast body diode for improved switching reliability. Low gate charge and reduced switching losses. Through-hole mounting in TO-247 package.
Wide operating temperature range of -40°C to 150°C. Maximum power dissipation of 277.8 W. Maximum drain-source resistance of 110 mΩ. Enhancement-mode with 20 V gate-source voltage. Forward diode voltage of 900 mV. Discover more high-quality Semiconductors and MOSFET devices on EnvMart for your electronic and power management needs.
