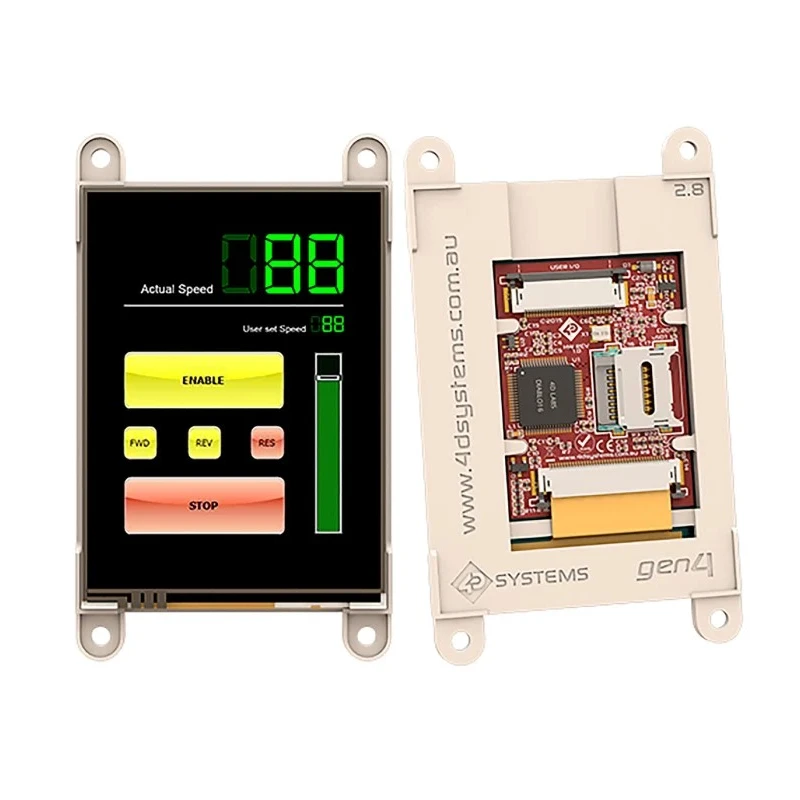

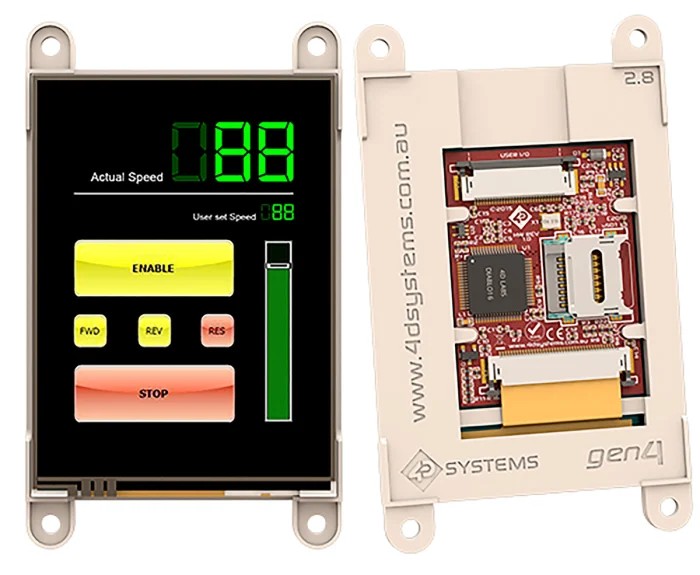

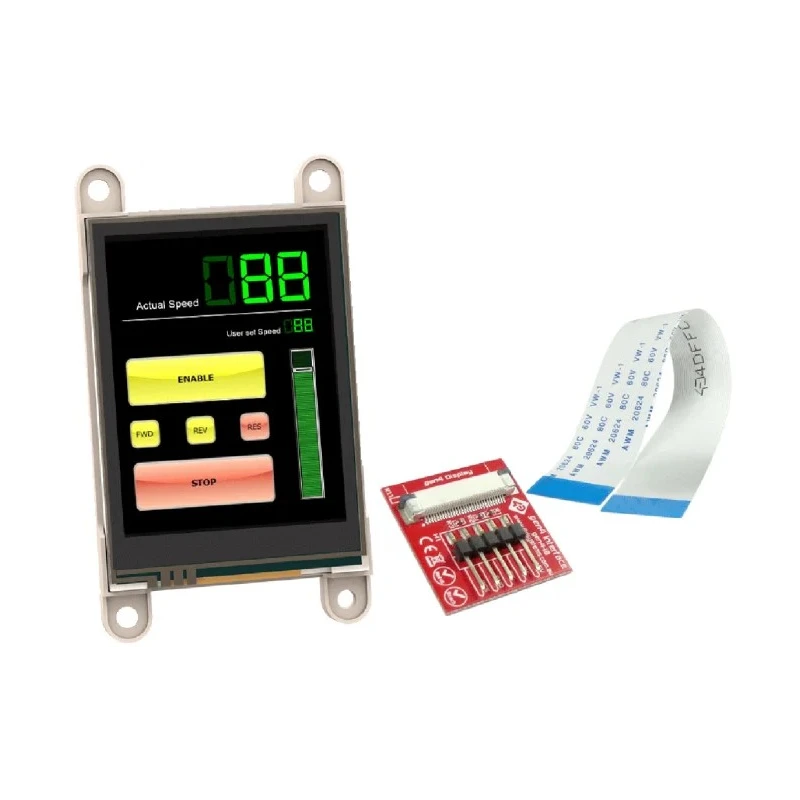

4D Systems gen4-uLCD-28DT LCD Colour Touch Screen Display Module 71.12 mm 240 x 320 pixel gen4-uLCD-28DT

4D Systems gen4-uLCD-28DT LCD Colour Touch Screen Display Module combines high-quality display technology with robust embedded control for industrial and electronic component applications.

This 2.8-inch TFT LCD module offers a 240 x 320 pixel resolution capable of 65K true-to-life RGB colors. It features a resistive touch panel for tactile user input, suitable for human-machine interface designs in industrial environments.

The module dimensions measure 87.3 mm wide by 57.6 mm deep and 7.3 mm high including mounting tabs, making it compact and easy to integrate where space is limited.

It operates within a voltage range of 4.0 V to 5.5 V and draws 165 mA current. The viewing area of 43 x 58 mm offers a brightness of 140 cd/m² and a contrast ratio of 250:1, delivering clear visibility under various lighting conditions.

Powered by the Diablo16 embedded processor, the gen4 series enables users to develop graphics, text, image, and animation displays using the 4D Systems Workshop4 IDE supporting multiple programming environments.

Connectivity is simplified through a 30-pin ZIF socket providing signals, power, communications, GPIO, and programming interfaces. Additional features include 16 GPIO pins with versatile configurations (analogue outputs, PWM, pulse outputs, and encoder inputs), along with three I2C and SPI channels.

The micro-SD card connector facilitates multimedia storage and data logging capabilities, expanding the module's functionality for dynamic industrial applications. The display provides true 65,000 colors with RGB fidelity for vivid graphics.

Resistive touch screen technology supports multi-touch and user input accuracy. Compact form factor ideal for embedded solutions requiring a slim profile. Integrated Diablo16 processor streamlines processing and display management.

Multiple GPIO and communication channels support flexible interfacing options. Micro-SD card support adds external memory storage for applications needing data retention. RoHS and CE compliant ensuring adherence to industry standards for safety and environmental impact.

This module suits industrial automation, electronic device development, embedded system design, and any application where a compact, robust, and responsive display is required. Explore more products in the LCD Colour Displays category for versatile display technologies at EnvMart.
