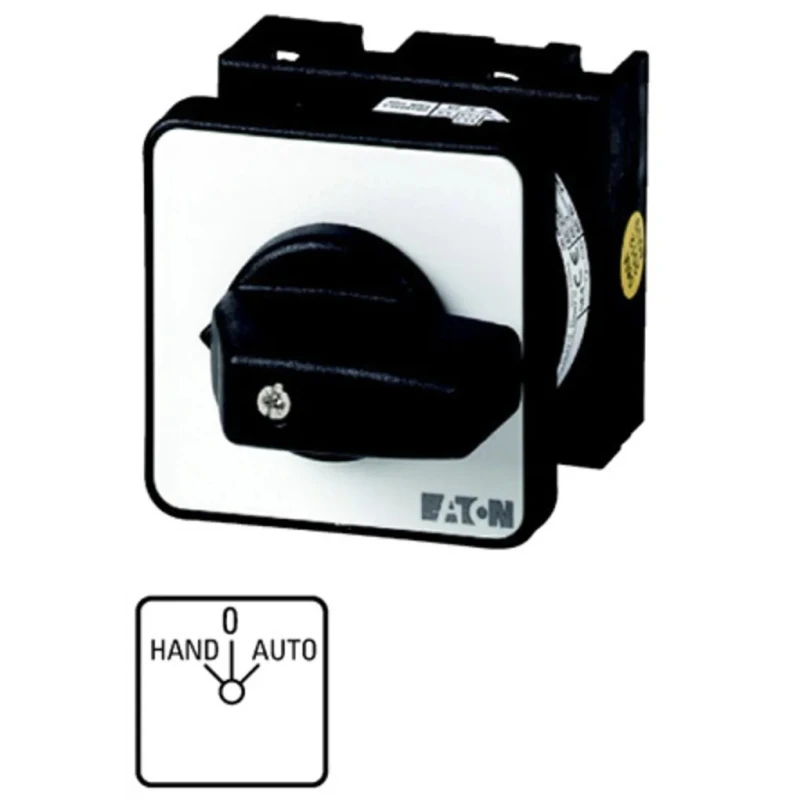

Eaton Cam Switch 3 Position 45° Toggle Actuator 20 A 690V AC T0 Series 022245 T0-1-15431/EZ

Free Delivery in India | Lowest Global Shipping Charges

Eaton Cam Switch 3 Position 45° Toggle Actuator 20 A 690V AC T0 Series 022245 T0-1-15431/EZ

Name: Eaton Cam Switch 3 Position 45° Toggle Actuator 20 A 690V AC T0 Series 022245 T0-1-15431/EZ
Brand: Eaton
SKU: 182743
Price: 42.14 USD
Availability: InStock



Category Cam Switches Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Length	48mm
Model	022245 T0-1-15431/EZ
Depth	48mm
IP Rating	IP65
Width	48mm
Mount Type	Center
Series	T0
Maximum Operating Temperature	50°C
Actuator Type	Toggle
Number of Positions	3
Minimum Operating Temperature	-25°C
Terminal type	Screw
Hazardous Area Certification	IECEx
Number of Poles	1
Mechanical Life	10000000Operations
Contact Voltage	690V ac
Contact Current	20A
Angle of Throw	45 °
Eaton, 1P 3 Position , 20ABrand	Eaton

Key Features

This cam switch offers three positions and a single pole configuration.
It features a 45-degree angle of throw with a toggle actuator type.
Screw-type terminals provide secure electrical connections.
The switch operates reliably between -25°C and 50°C ambient temperatures.
It is designed for a mechanical life of 10 million operations, ensuring durability.
IP65 rating offers protection from dust and water ingress, suitable for harsh environments.
This Eaton T0 series switch meets multiple international standards including IEC/EN 60947 and UL certifications.
The compact dimensions of 48mm length, width, and depth allow flexible installation in electrical panels.

Product Description

Eaton 022245 T0-1-15431/EZ is a professional-grade cam switch featuring a 3 position toggle actuator with 45° angle of throw, rated for 20 A contact current at 690V AC. This T0 series switch is engineered for industrial electrical applications requiring reliable changeover switching with a single pole configuration and center mounting.

The toggle actuator is designed for ergonomic handling and precise position selection. The unit has a mechanical life rated at 10 million operations, ensuring long-term durability in rigorous use.

Its IP65 ingress protection rating ensures superior resistance to dust and water, making it ideal for automated electrical systems in demanding environments such as manufacturing, HVAC control, and process automation.

The operating temperature range from -25°C to 50°C suits a wide variety of industrial climates. Screw terminal connections provide secure and maintainable wiring interfaces. This cam switch offers three distinct switching positions with a 45° throw angle.

The robust construction complies with IEC/EN 60947 and other global safety standards, including UL and CSA certifications. Compact dimensions of 48 mm length, width, and depth enable easy integration into control panels.

IECEx certification indicates suitability for hazardous area installations. Eaton's reputable engineering ensures consistent performance and operator safety. Designed for use in electrical automation, industrial machinery, and factory control circuits.

Center mount design facilitates flush installation in paneling systems. Set your operations for reliable switching with this durable Eaton cam switch featuring a precise toggle actuator mechanism. For more quality products and detailed specifications, explore Eaton Cam Switches and industrial electrical controls at EnvMart.
