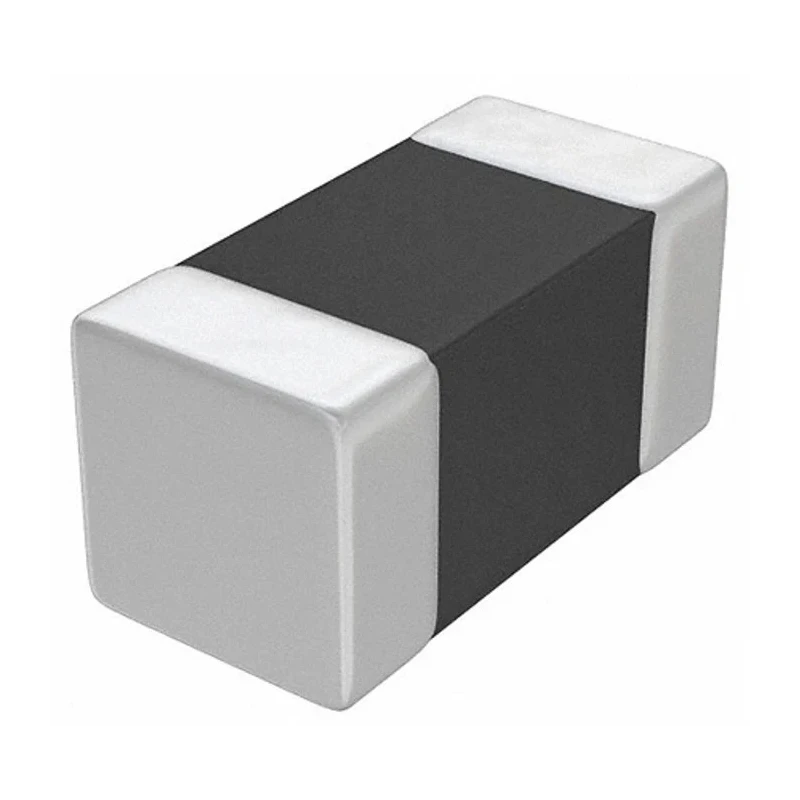

Murata Wirewound Surface Mount Inductor, Multilayer, 4.7 nH, 1005, Ceramic Core LQG15HN

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor, Multilayer, 4.7 nH, 1005, Ceramic Core LQG15HN

Name: Murata Wirewound Surface Mount Inductor, Multilayer, 4.7 nH, 1005, Ceramic Core LQG15HN
Brand: Murata
SKU: 92496
Price: 0.01 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQG15HN
Depth	0.5mm
Packaging	Paper Tape
Series	LQG15HN
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Non-Magnetic Ceramic
Inductance	4.7nH
Package/Case	1005
Maximum DC Current	300mA
Pin Count	2
Maximum DC Resistance	230mΩ
Inductance Tolerance	±0.3 nH
Termination Style	Solder
Maximum Self Resonant Frequency	6000MHz
Minimum Quality Factor	8
Inductor Construction	Multilayer

Key Features

Offers 4.7 nH inductance suitable for high frequency applications.
Features a maximum DC current rating of 300 mA for reliable circuit integration.
Unshielded, wirewound, and multilayer construction ensures excellent balance between current, size, and tolerance.
Uses a non-magnetic ceramic core for enhanced stability at high frequencies.
SMD package size 1005 (1 mm x 0.5 mm) for space-saving PCB mounting.
Maximum DC resistance of 230 mΩ for efficient operation.
Operating temperature range from -55°C to +125°C.
Maximum self-resonant frequency of 6000 MHz.

Product Description

Murata LQG15HN4N7S02D is a wirewound surface mount inductor engineered for high frequency circuits, offering a compact footprint and precise performance for modern electronics. This model features a non-magnetic ceramic core and multilayer construction allowing excellent balance between rated current, device size, and inductance tolerance. With a 4.7 nH inductance and a DC current rating of 300 mA, it delivers optimal performance for RF applications, resonant circuits, and WLAN networks.

Inductance 4.7 nH optimized for high frequency electronic and RF matching circuits. Maximum DC current of 300 mA supports reliable integration in demanding environments. Unshielded, multilayer wirewound construction offers exceptional stability at high frequencies.

Non-magnetic ceramic core maintains high quality factor and reduces magnetic losses. Compact 1005 SMD package (1 mm x 0.5 mm) ideal for space-limited PCB designs. Termination style: solder; packaged on paper tape reels for automated placement.

Maximum DC resistance is 230 mΩ, supporting efficient circuit operation. Operating temperature range: -55°C to +125°C, suitable for commercial and industrial electronics.

This inductor from the LQG15HN series is highly reliable and designed for applications including chokes, mobile communication equipment, and circuit resonance. The maximum self-resonant frequency reaches 6000 MHz, ensuring suitability for precision and high-speed circuits. Inductance tolerance of ±0.3 nH provides design flexibility and accuracy for engineers.

Monolithic structure and quality construction deliver durability for mass production and field deployment. Common use cases include consumer electronics, telecommunications, and industrial automation equipment.
