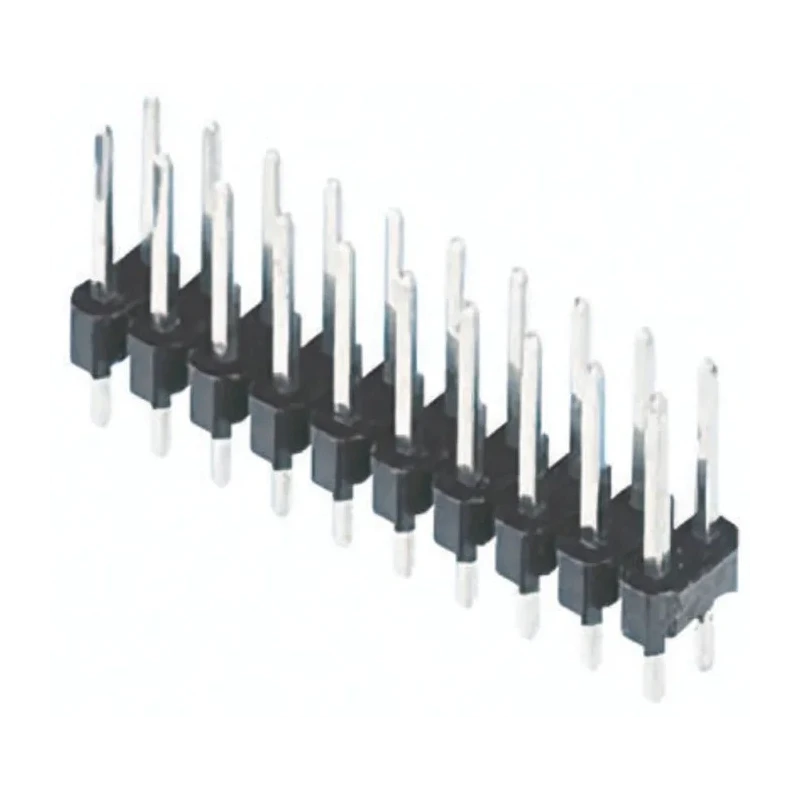

TE Connectivity AMPMODU MOD II Series 14 Contact Straight Through Hole Pin Header, 2.54 mm Pitch, 2 Rows, Unshrouded 826925-7

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MOD II Series 14 Contact Straight Through Hole Pin Header, 2.54 mm Pitch, 2 Rows, Unshrouded 826925-7

Name: TE Connectivity AMPMODU MOD II Series 14 Contact Straight Through Hole Pin Header, 2.54 mm Pitch, 2 Rows, Unshrouded 826925-7
Brand: TE Connectivity
SKU: 205808
Price: 2.22 USD
Availability: InStock



Category PCB Pin Header Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Model	826925-7
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	6.7mm

Key Features

Complies with AMPMODU MOD II series standards ensuring reliable board-to-board and wire-to-board connections.
Constructed with phosphor bronze contacts plated with tin for optimal conductivity.
Housing made from durable polybutylene terephthalate withstanding temperatures from -65°C to 105°C.
Solder termination and male contact gender for straightforward installation.
Contact dimensions include 3.2 mm tail pin length and 6.7 mm mating pin length for compatibility.
Unshrouded design allows for easy breakaway to required sizes, enhancing production efficiency.
Ideal for automotive controls, telecommunications, test equipment, medical instruments, and computing devices.
Quick and economical installation reduces labor costs in automated and control applications.

Product Description

TE Connectivity 826925-7 AMPMODU MOD II Series straight through hole pin header is a 14 contact connector with a 2.54 mm pitch arranged in two rows. Designed for through-hole mounting on printed circuit boards, this unshrouded pin header is constructed using phosphor bronze contacts plated with tin to ensure excellent electrical conductivity and durability.

The housing material is polybutylene terephthalate, capable of withstanding minimum operating temperatures of -65°C and maximums of 105°C, making it suitable for a wide range of environments. The male contact gender and solder termination type facilitate reliable and secure connections.

This pin header system is rated for 750 V voltage and 3 A current, well adapted to industrial and electronic assemblies including automotive controls, telecommunications equipment, test and measurement devices, medical instruments, and computer hardware.

One of the key advantages is its versatility; the unshrouded design and breakaway feature allow segments of the header to be separated into the required size, simplifying installation and saving production time. This system supports both board-to-board and wire-to-board connector configurations.

Complies with AMPMODU MOD II standard ensuring industry-wide compatibility. Phosphor bronze contacts with tin plating provide reliable electrical performance. Durable polybutylene terephthalate housing resists thermal and mechanical stress.

Operates over a wide temperature range from -65°C to 105°C. Through hole mount type with solder termination for secure PCB connections. Unshrouded and breakaway design enhances customization and installation speed. Supports 14 contacts with male contact gender suitable for multiple applications.

Rated voltage of 750 V and current of 3 A for robust performance.

This AMPMODU MOD II pin header is ideal for use in demanding industrial automation, control systems, automotive electronics, medical instrumentation, telecommunications, and computing hardware, providing a reliable interconnect solution.
