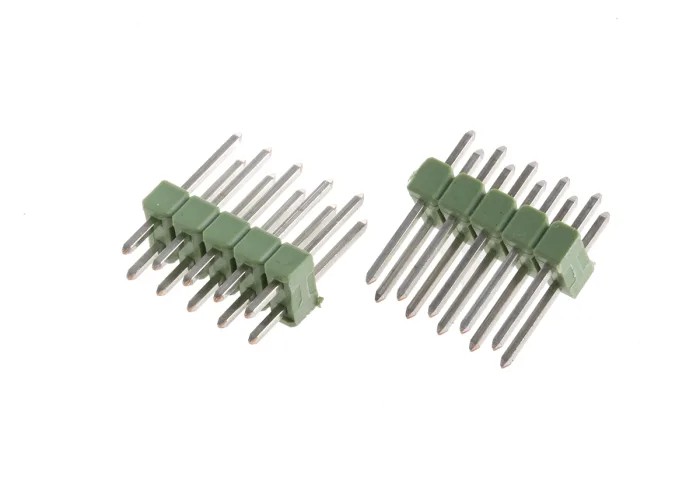

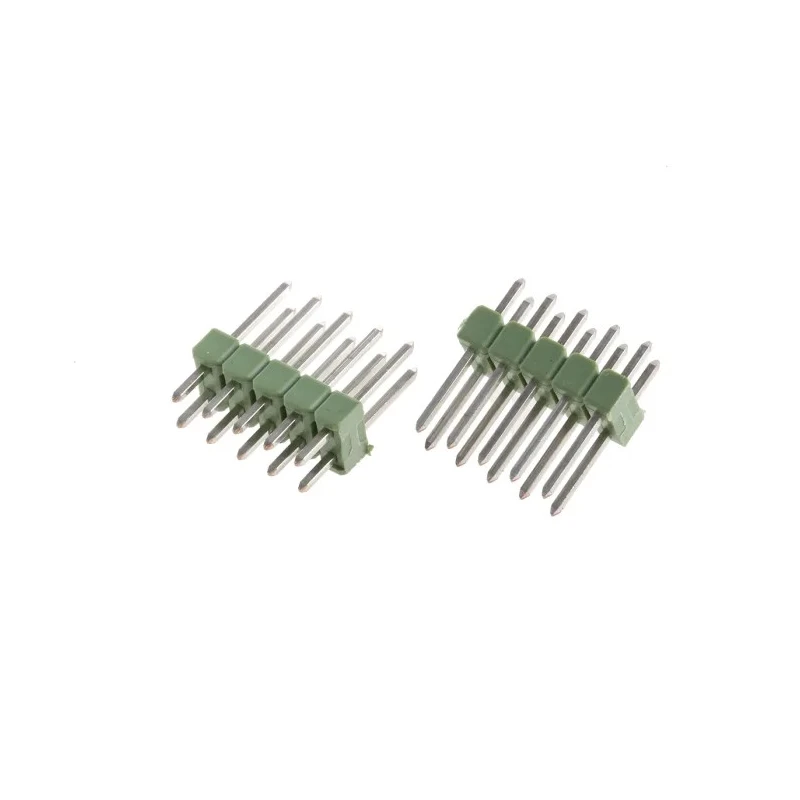

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row 826925-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row 826925-5

Name: TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row 826925-5
Brand: TE Connectivity
SKU: 205806
Price: 1.24 USD
Availability: InStock



Category PCB Pin Header Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Model	826925-5
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	6.7mm

Key Features

The pin header features a 2.54 mm pitch and 2 rows for compact mounting.
Constructed with unshrouded male phosphor bronze contacts plated with tin for durability.
Designed for through-hole mounting for secure PCB assembly.
Operates safely at voltages up to 750 V and currents up to 3 A.
Suitable for harsh environments with operating temperature range from -65°C to 105°C.
Pin lengths of 3.2 mm tail and 6.7 mm mating length optimize soldering and connectivity.
Housing is made from durable polybutylene terephthalate.
Versatile for use in automotive controls, industrial equipment, telecommunications, medical instruments, and computing devices.

Product Description

TE Connectivity 826925-5 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality unshrouded double row pin header with 10 contacts spaced at a 2.54 mm pitch. This connector caters to demanding electronic component needs in automotive, industrial, telecommunications, medical, and computing applications.

Constructed using polybutylene terephthalate housing and phosphor bronze contacts plated with tin, it ensures long-lasting durability and excellent electrical performance. The pin header supports through-hole mounting for reliable solder connections on PCBs.

Designed to operate efficiently between -65°C and 105°C, it provides a robust solution for environments requiring high temperature resilience. Rated for voltages up to 750 V and currents up to 3 A, this component meets essential industrial electrical standards, though it carries no formal certifications.

The tail pins measure 3.2 mm, ensuring solid mechanical stability, while the mating pins of 6.7 mm allow precise connectivity with corresponding headers. This header is unshrouded, allowing easy access for assembly and inspection.

One of the key benefits of this TE Connectivity pin header is its modularity; it can be broken down into the desired size to enhance labor efficiency and customize configurations. It is part of the AMPMODU MOD II interconnect system celebrated for its reliable and economical design.

The pin header's 2-row, 10-contact configuration optimizes connection density on PCB boards. It is compatible with both board-to-board and wire-to-board connector systems. The versatile design supports use in a wide range of industrial and automation control applications.

Package includes a breakaway pin header ready for integration into electronic assemblies.

This product enables engineers and manufacturers to create compact, reliable electrical interconnections in complex electronic systems. It is ideal for enhancing the performance and assembly speed of automation, control, and communication equipment.
