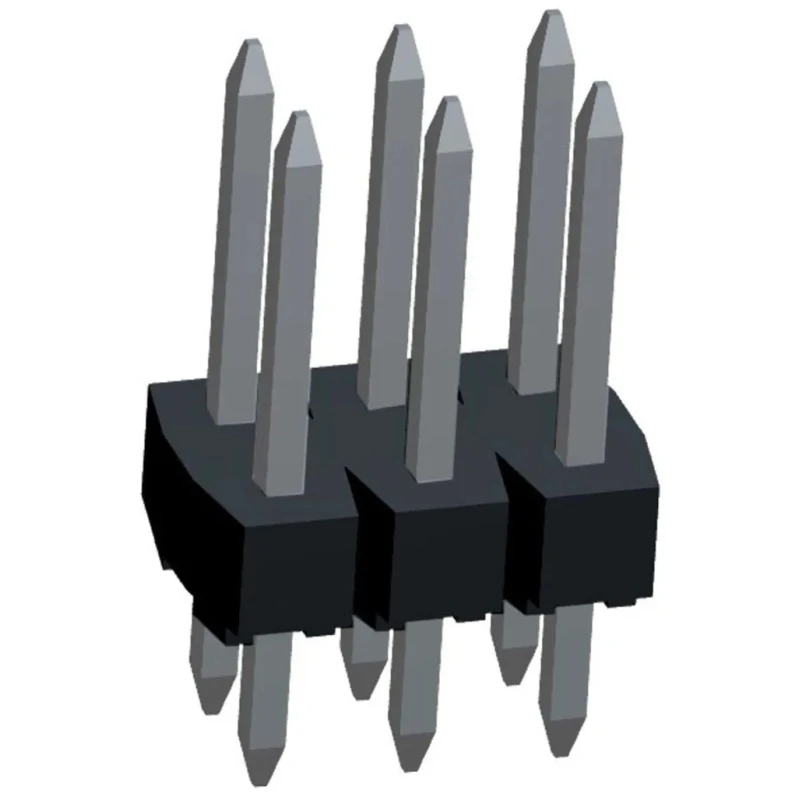

Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0123

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0123

Name: Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0123
Brand: Molex
SKU: 206728
Price: 0.82 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

Designed for straight orientation and through hole mount type.
Features unshrouded header for easy soldering and connection.
Constructed with brass contact material plated with tin for durability.
Supports operating temperature range from -55°C to 125°C.
Rated for a maximum voltage of 350V and current of 3A.
Includes breakaway design enabling cutting to size for design flexibility.
Offers high retention force and mechanical stability after soldering.
Compatible with C-Grid III series PCB sockets and crimp housings.

Product Description

Molex 90131-0123 C-Grid III Series Straight Through Hole Pin Header, featuring 6 contacts arranged in 2 rows with a 2.54 mm pitch, is engineered for reliable wire-to-board connections in various industrial sectors.

This unshrouded pin header is designed with a straight orientation and through hole mount type, allowing it to be securely soldered onto PCBs. The connector's brass contacts plated with tin provide excellent durability and corrosion resistance. Operating effectively within a temperature range of -55°C to 125°C, it supports up to 350 volts and 3 amps of current.

The header includes a breakaway design, enabling users to cut the component to desired lengths for customized configurations. Its high pin retention force ensures a secure mating connection, while soldered contacts maintain mechanical stability over time. Compatible with other C-Grid III series PCB sockets and crimp housings, this connector offers flexibility in both board-to-board and wire-to-board applications.

This product is widely employed across industries including industrial equipment, computer systems, medical devices, consumer electronics, telecommunications infrastructure, and automotive safety electronics.

Designed for straight orientation and through hole mount type. Features unshrouded header for easy soldering and connection. Constructed with brass contact material plated with tin for durability. Supports operating temperature range from -55°C to 125°C.

Rated for a maximum voltage of 350V and current of 3A. Includes breakaway design enabling cutting to size for design flexibility. Offers high retention force and mechanical stability after soldering. Compatible with C-Grid III series PCB sockets and crimp housings.

Suitable for industrial, computer, medical, consumer, telecommunications, and transportation applications. Explore additional Molex connectors and PCB Pin Headers for diverse electronic component needs on EnvMart.
