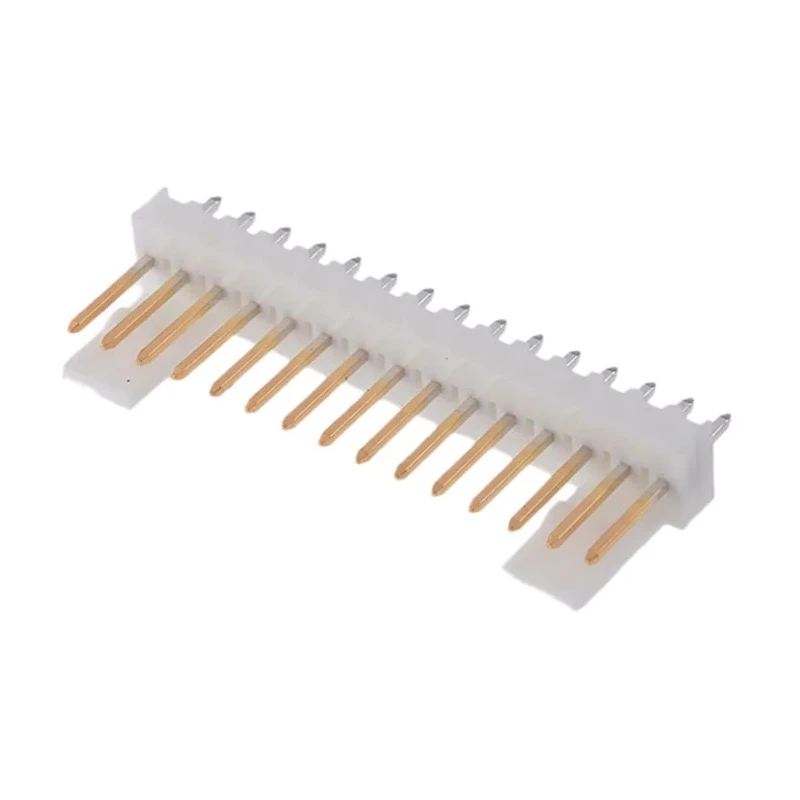

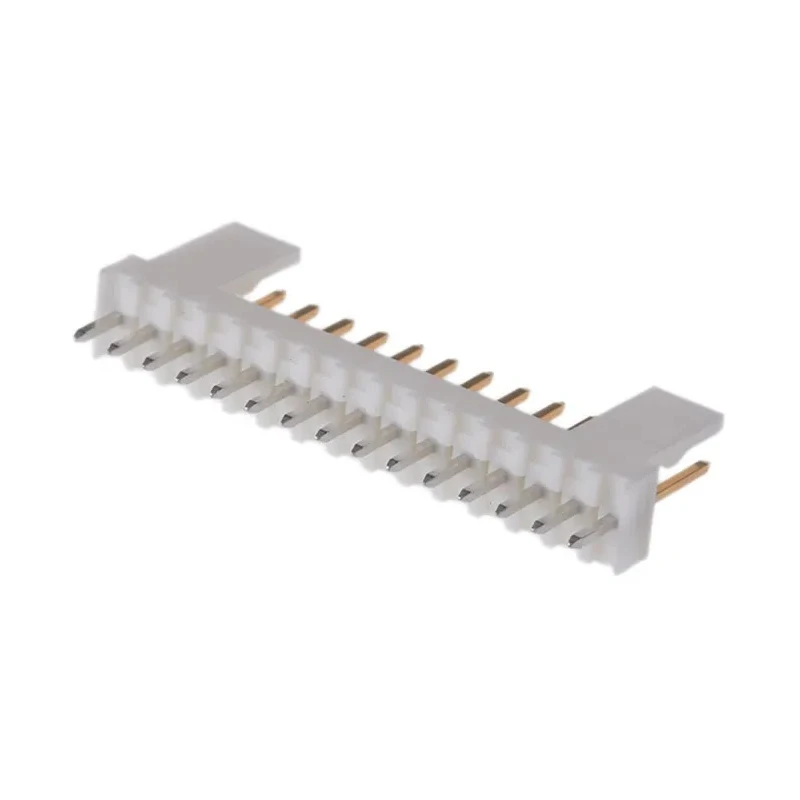

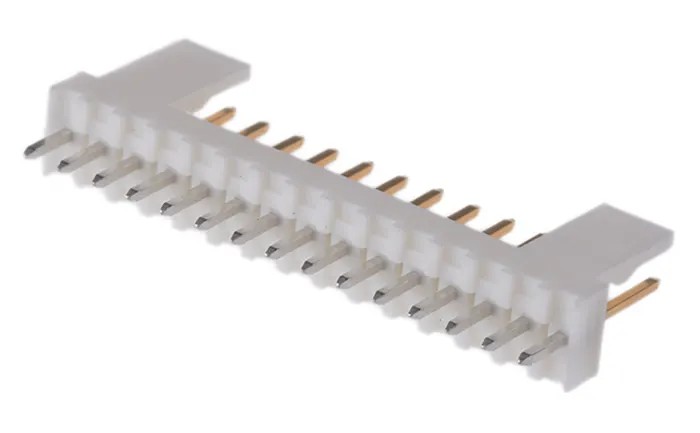

Molex KK 254 Series Straight Through Hole Pin Header 15 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-29-2151

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 254 Series Straight Through Hole Pin Header 15 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-29-2151

Name: Molex KK 254 Series Straight Through Hole Pin Header 15 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-29-2151
Brand: Molex
SKU: 206375
Price: 3.13 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	15
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	3.56mm
Mating Pin Length	2.54mm

Key Features

Designed for through-hole mounting applications on PCBs.
Constructed with brass contacts plated in gold for durability and conductivity.
Features a pitch of 2.54 mm and a single row with 15 straight male contacts.
Housing material is high-quality nylon ensuring insulation and mechanical stability.
Supports current rating up to 4A and voltage up to 250V.
Operates reliably between -40°C to 105°C temperature range.
Tail pin length is 3.56 mm, and mating pin length is 2.54 mm for secure connection.
Unshrouded design facilitates easy solder termination on PCBs.

Product Description

Molex 22-29-2151 KK 254 Series Straight Through Hole Pin Header is a high-quality electronic component designed for wire-to-board connectivity. This pin header features 15 male contacts arranged in a single row with a 2.54 mm pitch, making it ideal for precise and reliable circuit board connections.

The connector is manufactured with brass contacts plated in gold to enhance conductivity and corrosion resistance. The housing is made from durable nylon, providing excellent insulation and mechanical support. The straight orientation and unshrouded design allow easy access for soldering through-hole connections on PCBs.

This pin header supports electrical ratings of 4A current and 250V voltage, suitable for demanding industrial and commercial electronic applications. It operates within a temperature range of -40°C to 105°C, ensuring stable performance across diverse environmental conditions.

Additional design features include a tail pin length of 3.56 mm and mating pin length of 2.54 mm facilitating secure and stable interface with corresponding connectors. This connector mates with Molex 2695 and 6471 Series housings, expanding compatibility in modular electronic assemblies.

Designed for through-hole PCB mounting in electronic industrial assemblies. Durable brass contacts with gold plating enhance signal integrity and lifespan. Nylon housing provides reliable insulation and mechanical strength.

Suitable for operating current 4A and standard voltage 250V. Temperature rated from -40°C to 105°C for versatile environments. Ideal for industrial, commercial, laboratory, and manufacturing electronic applications. Compatible with Molex 2695 and 6471 series housing connectors.

This Molex KK 254 Series pin header offers quality and robustness required in various industrial and laboratory environments, meeting the needs of electronic component manufacturers and system integrators. Explore the comprehensive portfolio of Connectors at EnvMart for related electronic connection solutions.

Explore more products in our PCB Pin Header category.
